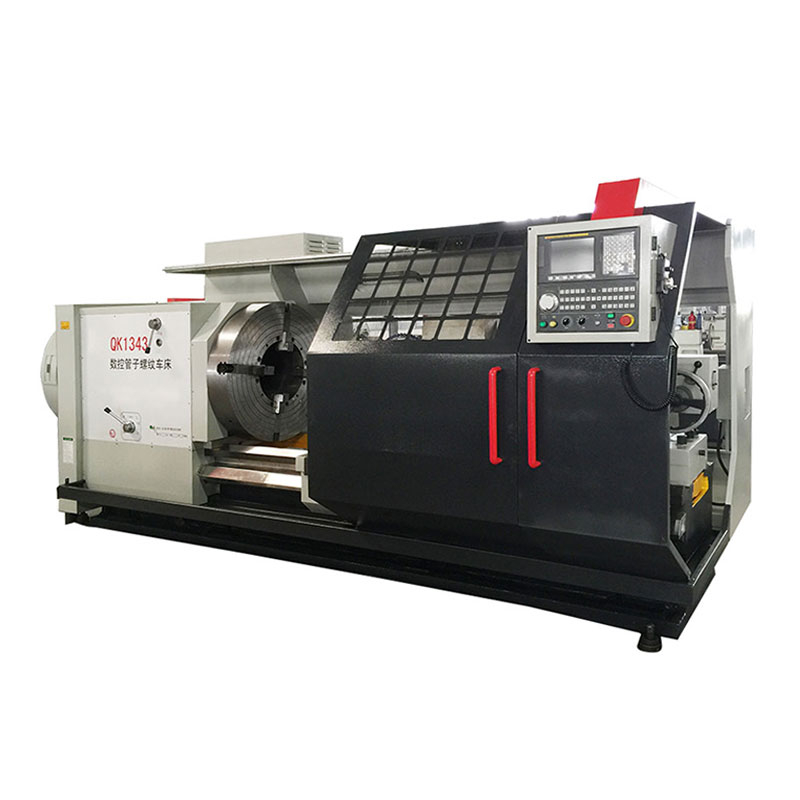

QK1343 CNC Lathe CNC Pipe Threading Lathe Machine with CE/ISO

  • QK1343
  • WMT
Quantity:

Product Description

Features:

  • High rigidity casting bed

  • High precision spindle bearing

  • Bed guideways industively hardened


QK1343现场图片


Specification  QK1343
Max dia.swing over bed(mm) 1000
Max dia.swing over cross slide(mm) 610
Max.length of work-piece(mm) 1500  3000   4000    5000
Width of bed(mm) 755
Spindle bore(mm) 440
Power of spindle motor(kw) 22
Mode of spindle speed Two gears, smooth adjustment
Range of spindle speed(r/min) (L):23-120
(H):65-258
Max.traverse of X/Z(mm) X:550
Z:1250
X/Z rapid traverse(r/min) 4000
X-axis motor Speed(r/min) 1500
Torgue(N.m) 18
Power(kw) 2.8
Z-axis motor Speed(r/min) 1500
Torgue(N.m) 22
Power(kw) 3.5
Tailstock quill Diameter(mm) 140
Travel(mm) 300
Taper Morse NO.6
Electric tool-post Model SLD170A04N
No.of tool stations Vertical four-station
Dimension(mm) 300×300
Turret indexing time(s) 5.6
Chuck K66-1000 four jaw electric chuck
Positioning accuracy(mm) 0.02
Repositioning accuracy(mm) 0.01
Overall dimensions(L*W*H)(mm) 5000×2100×2100
Machine weight(kgs) 13000


Standard Accessories:

1. Cooling system 2. Work lamp

3. Auto-lubricating system

4. X/Z feeding servo motor

5. 4-Position electrical tool post

6. Unitary iron casting machine stand

7. Manual 3-jaw chuck 2 pcs


Optional Accessories:

1. GSK980TDC, GSK218M controller

2. Siemens 808D controller

3. Siemens 808D Advance controller

4. Siemens 828D controller

5. Fanuc Oi TF controller

6. 6/8-Position electrical tool post
