Product Description

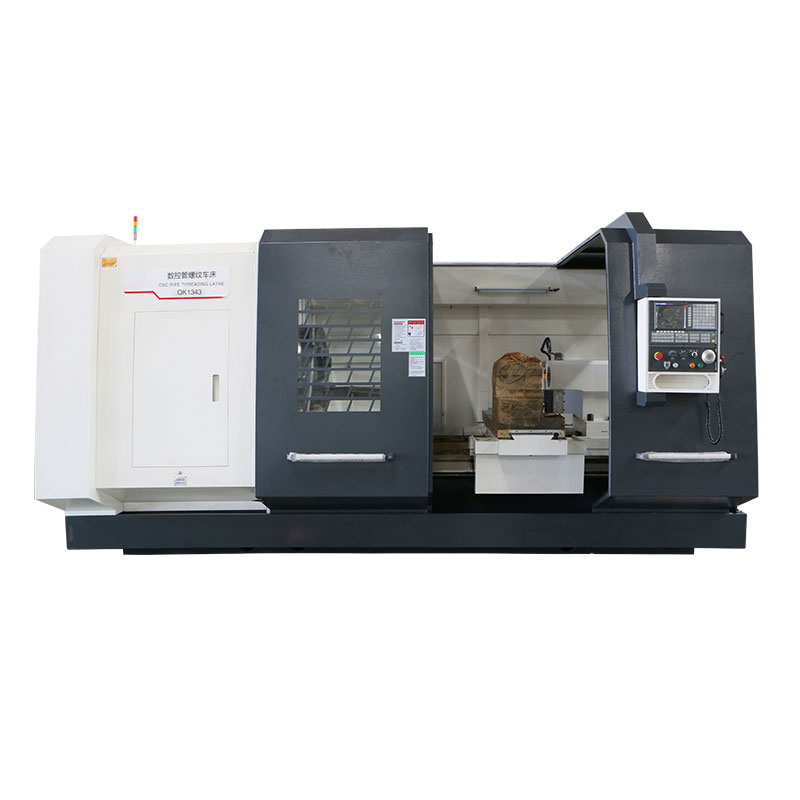

| Specification | QK1343 | |
| Max dia.swing over bed(mm) | 1000 | |
| Max dia.swing over cross slide(mm) | 610 | |
| Max.length of work-piece(mm) | 1500 3000 4000 5000 | |
| Width of bed(mm) | 755 | |
| Spindle bore(mm) | 440 | |
| Power of spindle motor(kw) | 22 | |
| Mode of spindle speed | Two gears， smooth adjustment | |
| Range of spindle speed(r/min) | （L）:23-120 | |
| （H）:65-258 | ||
| Max.traverse of X/Z(mm) | X:550 | |
| Z:1250 | ||
| X/Z rapid traverse(r/min) | 4000 | |
| X-axis motor | Speed(r/min) | 1500 |
| Torgue(N.m) | 18 | |
| Power(kw) | 2.8 | |
| Z-axis motor | Speed(r/min) | 1500 |
| Torgue(N.m) | 22 | |
| Power(kw) | 3.5 | |
| Tailstock quill | Diameter(mm) | 140 |
| Travel(mm) | 300 | |
| Taper | Morse NO.6 | |
| Electric tool-post | Model | SLD170A04N |
| No.of tool stations | Vertical four-station | |
| Dimension(mm) | 300×300 | |
| Turret indexing time(s) | 5.6 | |
| Chuck | K66-1000 four jaw electric chuck | |
| Positioning accuracy(mm) | 0.02 | |
| Repositioning accuracy(mm) | 0.01 | |
| Overall dimensions(L*W*H)(mm) | 5000×2100×2100 | |
| Machine weight(kgs) | 13000 | |
