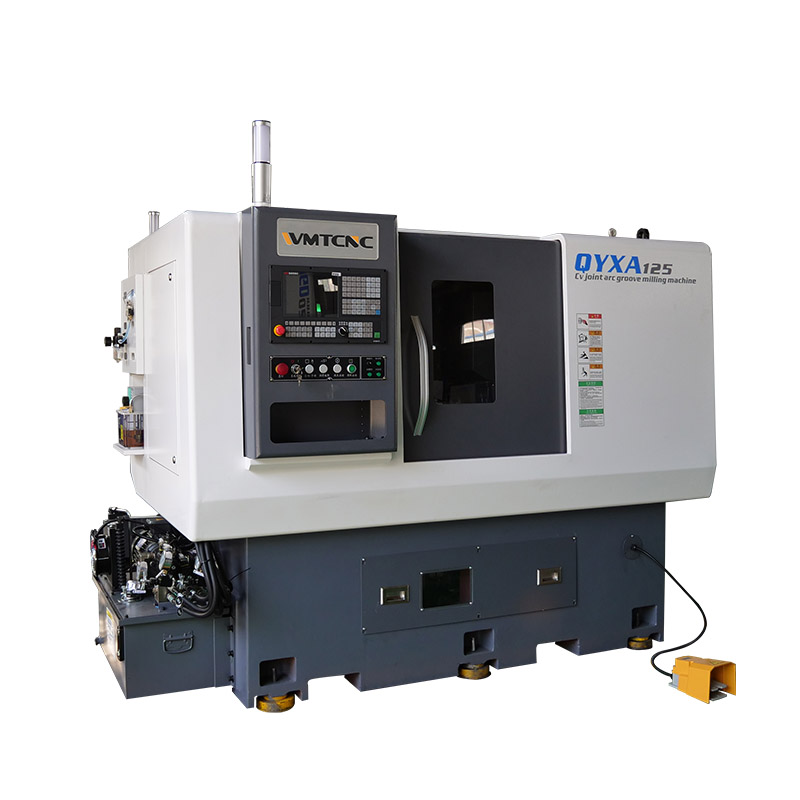

QYXA125
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Clapming one time can milling inner race groove;
2. Rigid body frame, high rigidity rectangular hardened rails, durable;
3. Hydraulic end tooth indexing high precision;
4 Special hydraulic elastic clamp, clamping reliable, accuracy stability;

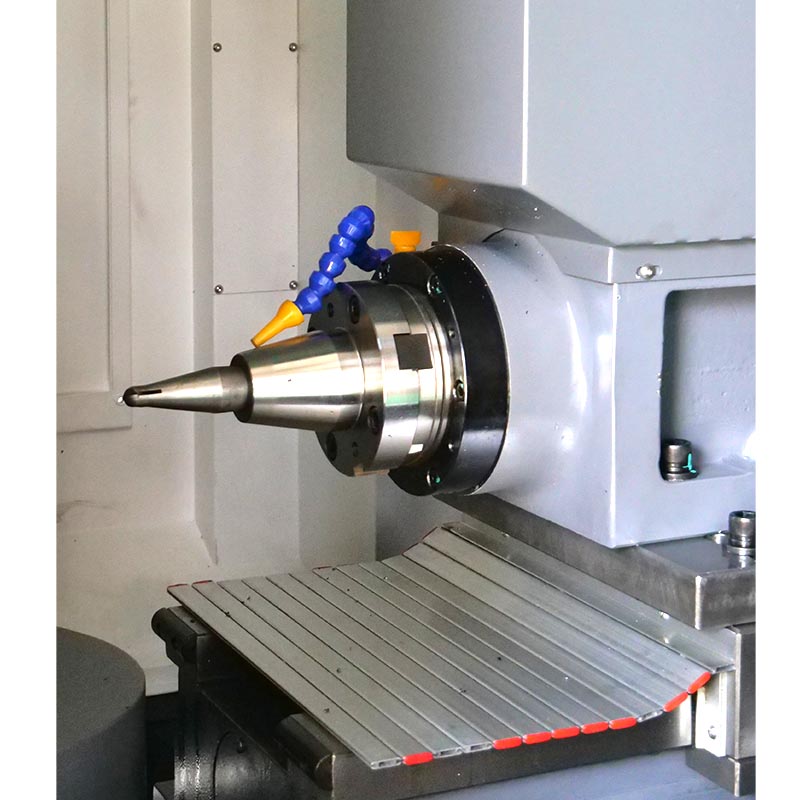

5. Special high rigidity spindle long life;
6. Can carry with truss or joint robot and automatical line.
QYXB125/QYXD125 Cv joint groove milling machine Milling instead of grinding, simplify process, strengthen work piece surface quality; Worm type low gravity table.
| ITEM | QYXA125 |
| Max. Clamping Diameter | Φ110mm |
| Max. Workpiece Length | 260mm |
| Max. Rotating Angle | 110° |
| Groove Diameter Scope | Φ45-Φ100mm |
| Diameter of Steel Ball Scope | Φ12.7-Φ22mm |
| Max. Workpiece Handle Diameter | Φ40mm |
| Weight | 4100kg |
| Length×Width | 2500x1800mm |
