Product Description

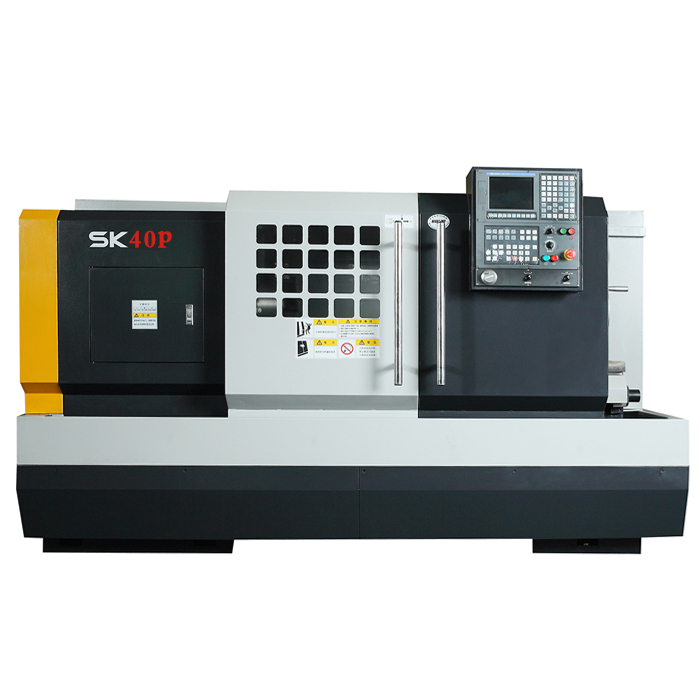

| Specification | SK40P |
| Max. swing over bed (mm) | φ400 |
| Max. swing over slide (mm) | φ200 |
| Max. turning dia. (mm) | φ400/350 * |
| Max. work length (mm) | 710/620; 960/870; 1460/1370; 1960/1870;2960/2870 |
| Max. turning length (mm) | 570/500; 820/750; 1320/1250; 1820/1750;2820/2750 |
| Spindle taper hole (mm) | φ77 |
| Spindle nose | ISO702/ⅠA2-8 |
| Spindle speed (r/min) | 3 gear stepless 21-1620 |
| H:162-1620 M:66-660 L:21-210 | |
| Taper hole of spindle | Metric 1:20 |
| Max. output torque of spindle (N.m) | 800 |
| Max. rapid traverse (m/min) | X-axis: 6(See OPERATOR'S MANUAL---ELECTRICAL PARTS for details) |
| Z-axis: 8(See OPERATOR'S MANUAL---ELECTRICAL PARTS for details) | |
| Pitch of screw (mm) | X direction: 5 Z direction: 6 |
| Capacity of turret | 4(standard)/6(optional) |
| Width of tool block(mm) | 162X162 |
| Max. permissible tool section (mm ×mm) | 25×25 |
| Travel of turret (mm) | X direction: 300/235(6-station) |
| Z direction: 600/850/1350/1850/2850 | |
| Dia. of tailstock quill (mm) | φ75(φ80 hyd. tailstock) |
| Taper of tailstock quill (MT No.) | MT No.5(MT No.3 hyd. tailstock with live spindle) |
| Max. travel of tailstock quill(mm) | 150(130 hydraulic tailstock) |
