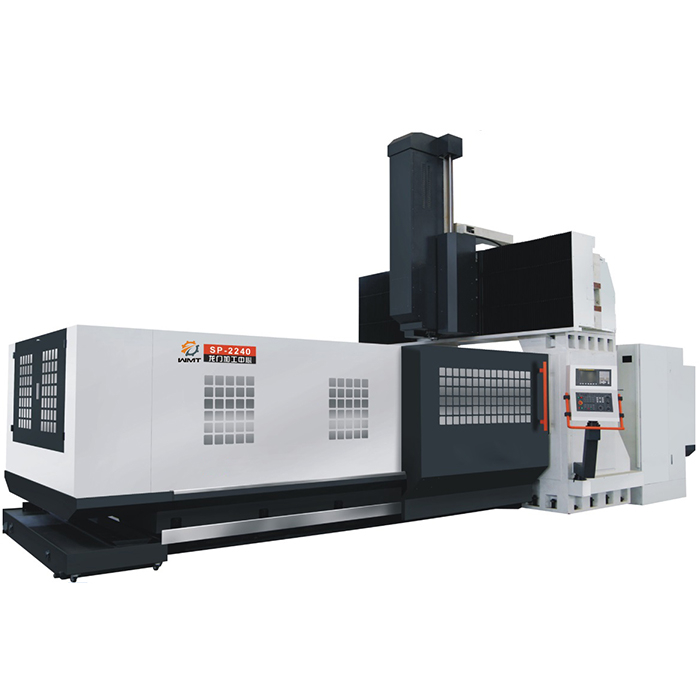

SP-2240 Gantry CNC Milling Machine

  • SP-2240
  • WMT
  • 8457101000
Quantity:

Product Description

SP2240-700x700

Specification SP2240
X-axis travel 4200
Y-axis travel 2250
Z-axis travel 1000
Distance from spindle nose to worktable surface 250-1250
Worktable size(WxL) 4000×1800
T-slots size (NxWxD) 11-22-160
Max. load bearing of worktable 12000
X/Y/Z guideway size Roller 2-55/2-55mmZ-axis hard guideway
Rapid feed speed of X axis 10000 mm/min
Rapid feed speed of Y axis 10000 mm/min
Rapid feed speed of Z axis 10000 mm/min
Main motor power 18.5/22KW
Spindle model BT50/Φ190
Motor torque 117.7N.M
Spindle taper    BT50
Blind rivets aize P50T-2-MAS403
Driven type Gear box 1:4
X/Y/Z linear guideway size X/Y-axis 2-55# roller linear guideways
X/Y/Z ball screw size X-axis 8020,Y-axis 6320,Z-axis 5016
Tool magazine capacity 24pcs, 32pcs
Tool arbor BT50
Max. tool dimension Φ110/Φ220mm
Max. length of tool  350mm
Max.tool weight 20kgs
Positioning accuracy 0.03mm
Re-positioning accuracy 0.018mm
Machine weight 30000kgs
Overall size (LxWxH) 10800×6400×5500 mm

Standard accessories;

Fully metal protective cover (include 2pcs screw chip cover, 1pcs chain type chip conveyor, water tank, pump)
24T arm-type tool magazine
