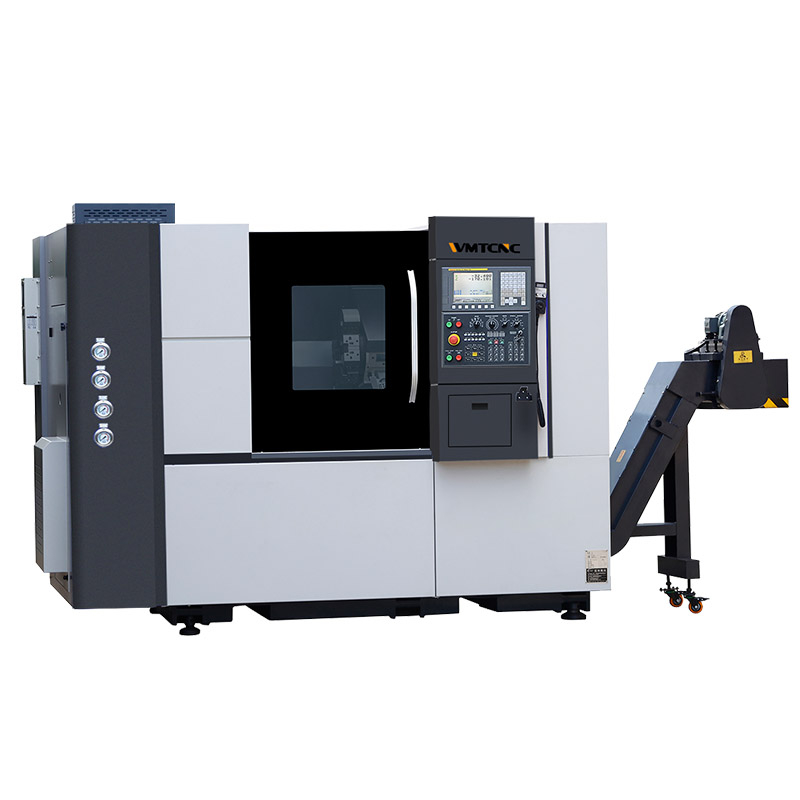

1.The bed base is integrally cast,35 degree slant bed is more convenient for workpiece up and down and iron filings discharge.
2.Imported linear rails are used for both X and Z directions, which reduces the wear of the machine tool. The super-large preload of the linear rail reduces the gap between the guide rails and increases the machining accuracy.
3.Spindle unit used in the whole series
4.Turret, hydraulic chuck, hydraulic tailstock ,increasing the versatility and automation of the lathe.
5.Full enclosed way covers ,better water-resistant and scrap-iron-resistant
|Chuck size||8”, *10''|
|Max. swing dia. over bed||φ550mm,*φ600mm|
|Max. length of workpiece||750mm,*1100mm|
|Max. swing dia. over slide||φ360mm|
|Max. dia. of through-hole||φ52mm||*φ65mm|
|Spindle speed range||4000rpm||*3500rpm|
|Main motor power||7.5/11kw, *11/15kw|
|X axis travel||250mm|
|Z axis travel||750mm,*1100mm|
|X/Z rapid traverse||20/20m/min|
|No. of tool stations||8, *12 position|
|Tool shank size||25x25mm|
|Type of tailstock||SST, *SPT|
|Taper of tailstock quill||MT3|
|Travel of tailstock quill||150mm|
|Travel of tailstock||750,*1100|
|Slant bed degree||35°|
|Overal dimension (L×W×H)||2960x1950x2200mm|
