Main Features:
1. Special CNC system for press brake (double axies).
2. The drive element of backgauge adopts imported ball screw and linear guideway.
3. The equipment of automatic hydraulic crowning system can compensate the bending tolerance caused by the ram torsion.

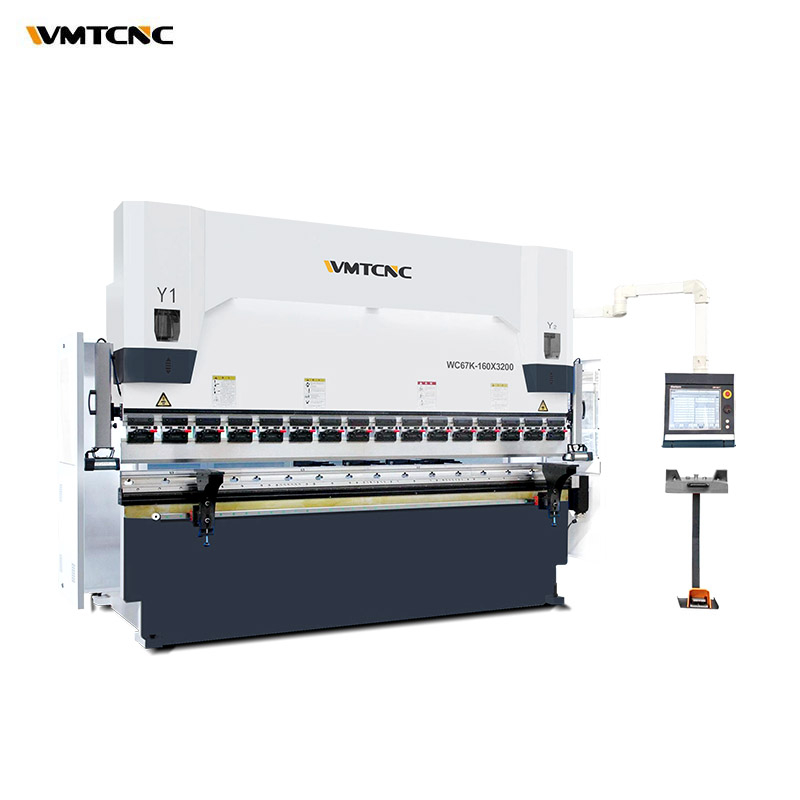

Model | WC67Y/K-160/3200 |
Nominal pressure | 1600kN |
Length of working table | 3200mm |
Distance between uprights | 2450mm |
Throat depth | 320mm |
storke | 180mm |
Open height | 440mm |
Motor power | 11KW |
