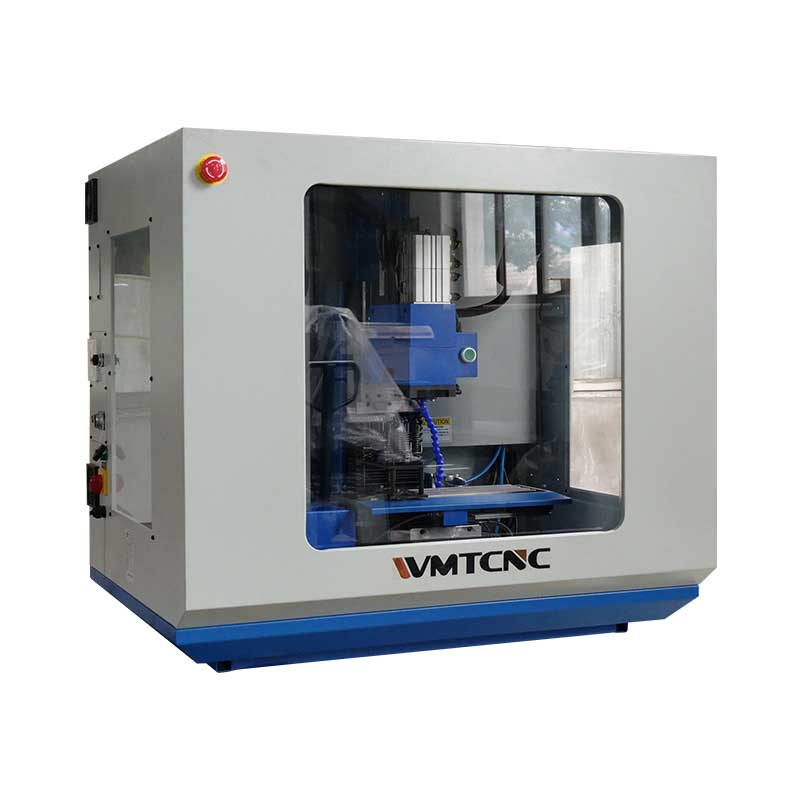

Small CNC Milling Machine XK7115 for Household Use & Educational

iKX1 is a small CNC milling machine. The machine tool is a small household, educational economical CNC machine tool. It can process ferrous metal stainless steel, 45 steel, non-ferrous metal copper, aluminum, plastic and wood and other different materials.

  • XK7115
  • WMT
  • 8459619000
Quantity:

Product Description

Features:

  • Two-way choice of opaque/fully transparent visible protective cover

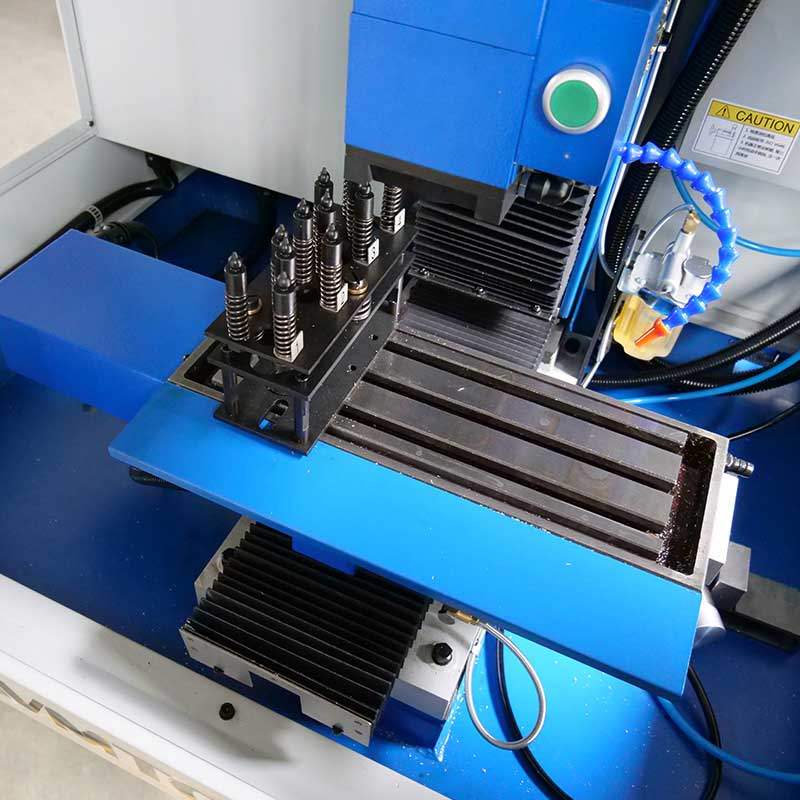

  • 4-station powerful tool magazine

  • Selected high-quality material casting, compact structure

  • High efficiency 1000W brushless motor

  • High-strength cast hard rail Taiwan-made ball screw

  • Three-axis stepper motor, brushless high torque motor

iKX1 bench top cnc milling machine (7)

Specification XK7115
Worktable size 400×145mm
T-slot size 3×12×40
Loading capacity of worktable 20kg
X axis travel 260mm
Y axis travel 152mm
Z axis travel 180mm
Distance from spindle nose to worktable surface 60-240mm
Distance from spindle center to column 200mm
Spindle taper ISO20
Spindle power 1000w
Spindle speed 100-5000r/min
X/Y/Z rapid feed speed 2000mm/min
X/Y/Z axis torque X/Y:1.35 Nm   Z: 3.1Nm
Position of toolpost 4
Tool change time 10s
Positioning accuracy 0.015mm
Re-positioning accuracy 0.01mm
Voltage 230/110V
N.W/G.W 280/340kg
Machine size (LxWxH) 1040×860×940mm
Packing size (LxWxH) 1170×960×1100mm
