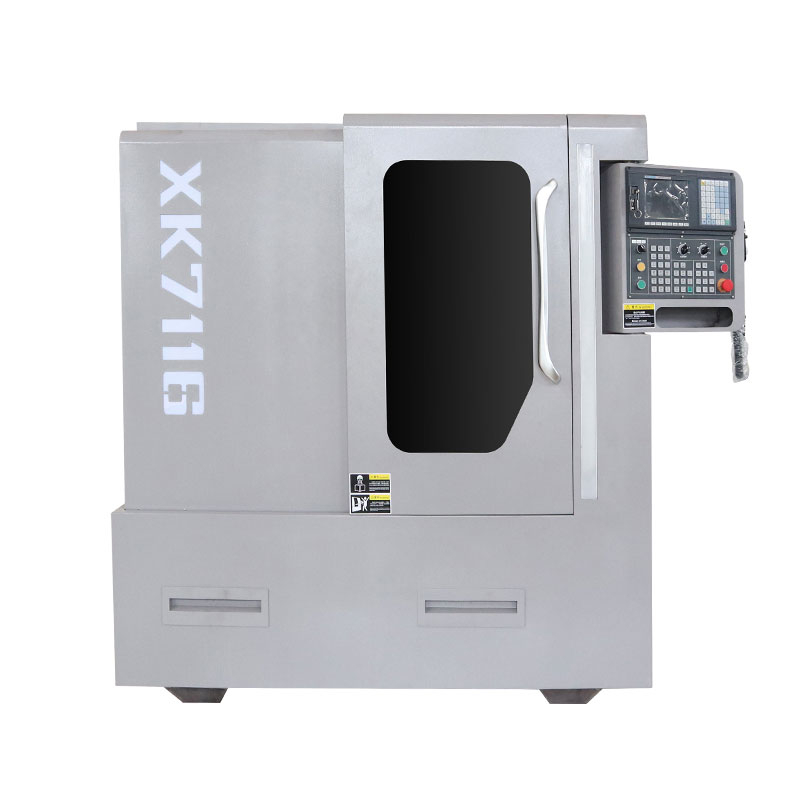

Small CNC Milling Machine XK7116 For School Education

Small CNC Milling Machine XK7116 For School Education, find complete details about Small CNC Milling Machine XK7116 For School Education.
  • XK7116
  • WMT
  • 8459619000
Availability:
Quantity:

Product Description

Features:

  • 18000rpm high spindle speed

  • Suitable for casting and steel processing

  • Lower noise and high precision

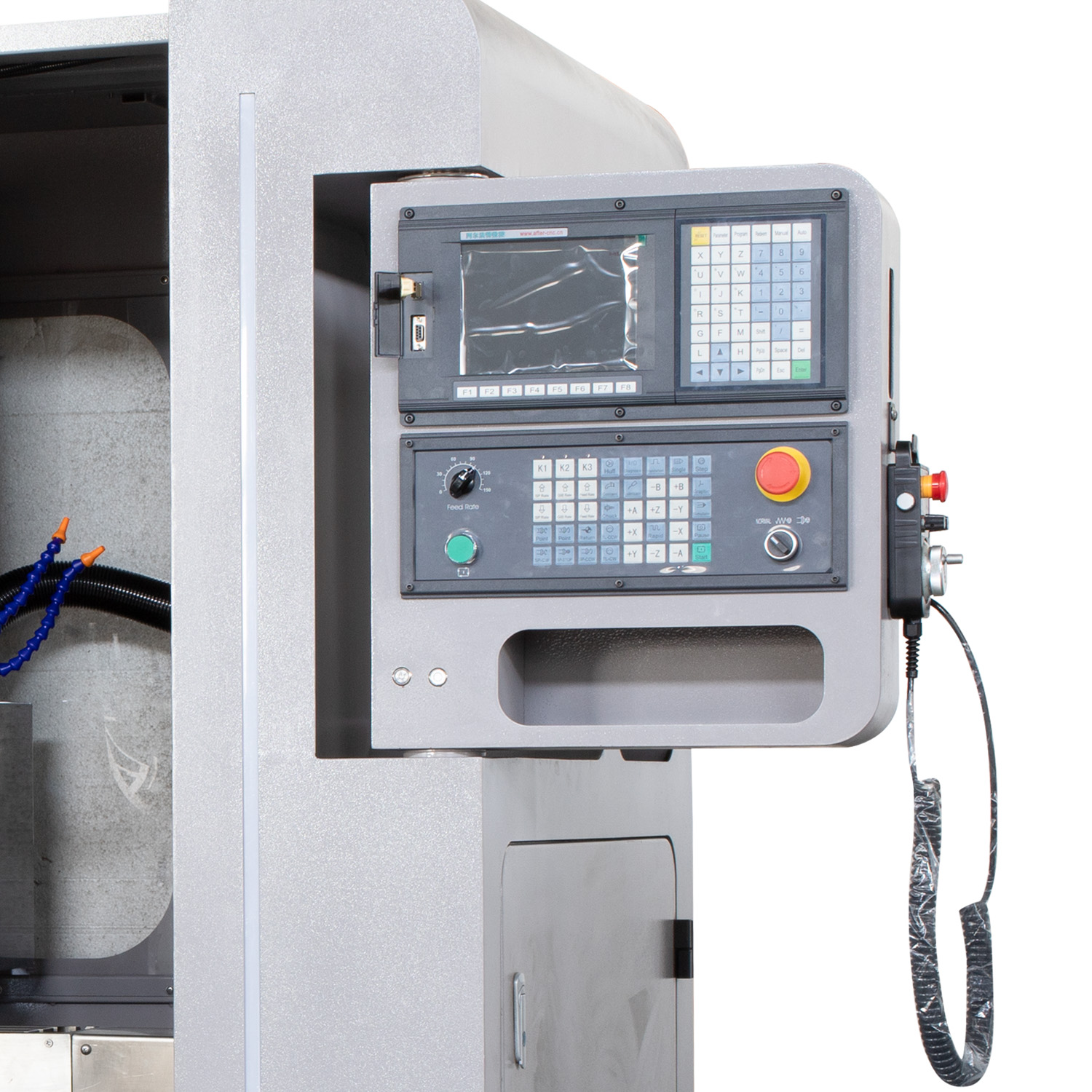

  • Vertical controller panel with easy operation and beauty

  • Suitable for mould machining and production in lots and engraving

XK7116主图04

Specification XK7116
X axis travel 350mm
Y axis travel 160mm
Z axis travel 400mm
Spindle nose to table distance 476.4mm
Spindle center to column distance 161mm
Worktable size 600X163mm
Main motor 3KW
Spindle speed 18000r/min
Coolant system liuquid cooling
Change tool way Pnumetic
Spindle taper BT30
ATC Type Umbrella type
Capacity of ATC 8T
Air compressor pressure 12L
Lubricating pump capacity 1L
Working light 10W
Cooling pump 40W
Controller system after1500MDC-4
XY axis servo motor torque 2.4N.M
Z axis servo motor torque 4N.M
XYZ fast moving speed 8
XY Linear guideway 15mmTaiwan HIWIN
Z linear guideway 20mmTaiwan HIWIN
X axis ball leadscrew 1605Taiwan TBI
YZ axis ball leadscrew 2005Taiwan TBI
