TCK36
WMTCNC

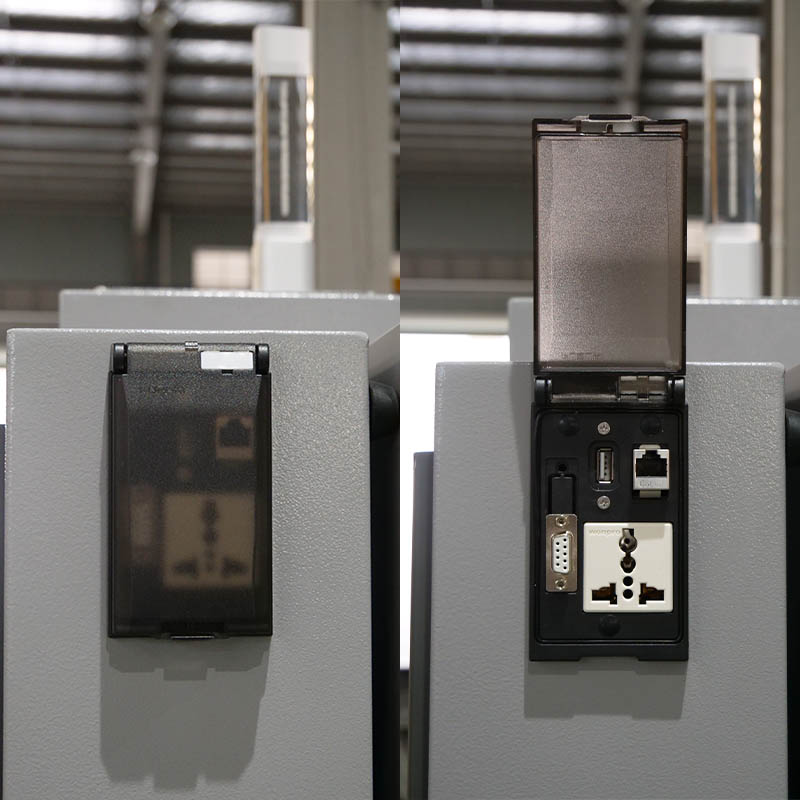

| Quantity: | |
|---|---|
Product Description
Main Features:
1. High precision slant bed line rail CNC lathe with Taiwan screw and linear guideway.
2. High precision cartridge type spindle ensure the rigidity and precision.

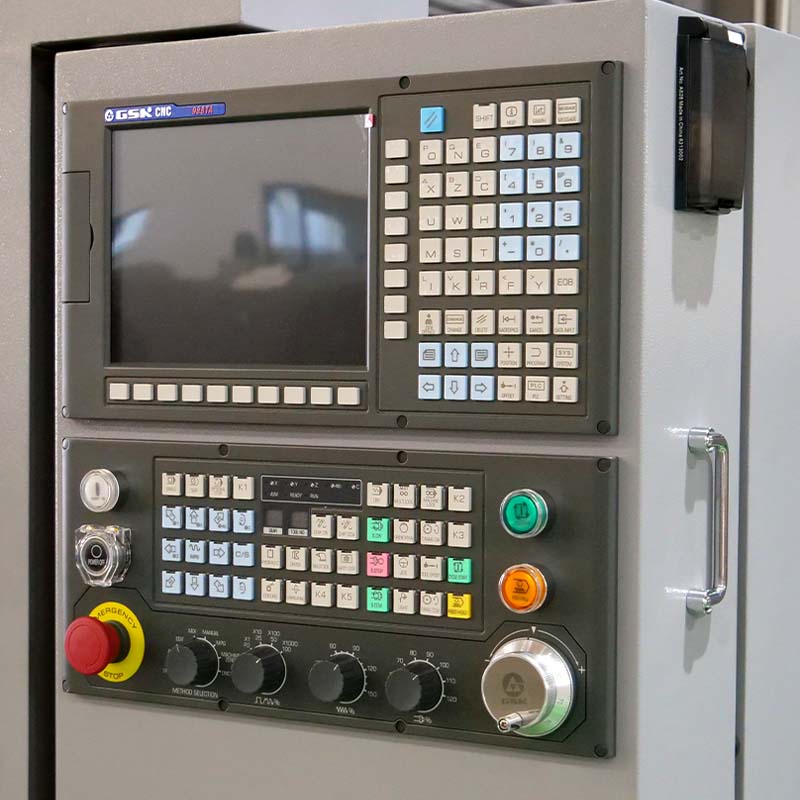

3. Siemens, Fanuc, Syntec, Fagor controller system options.
4. Monoblock cast iron of the whole machine ensure high rigidity.

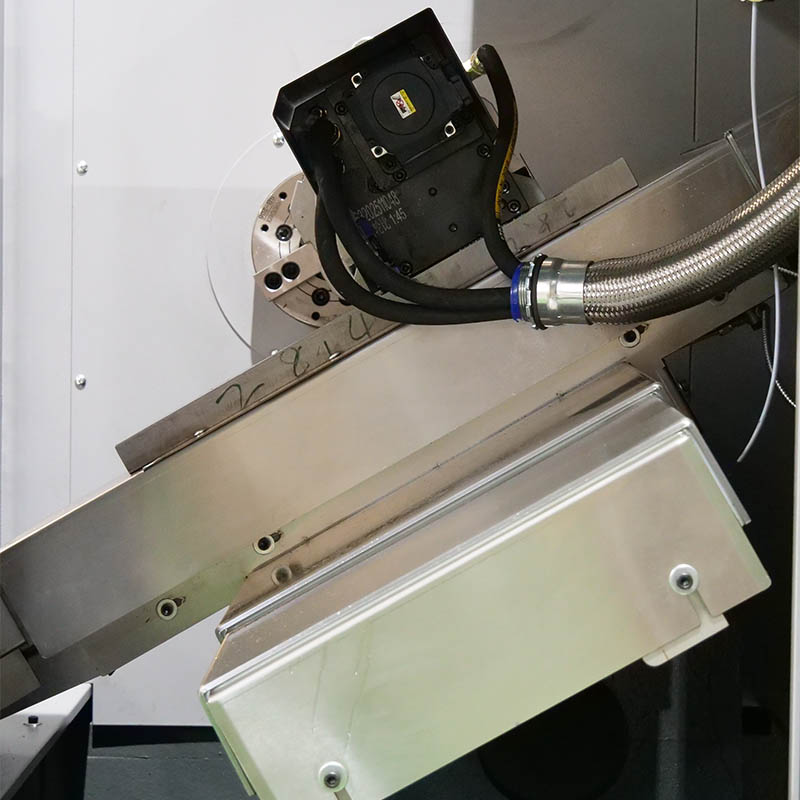

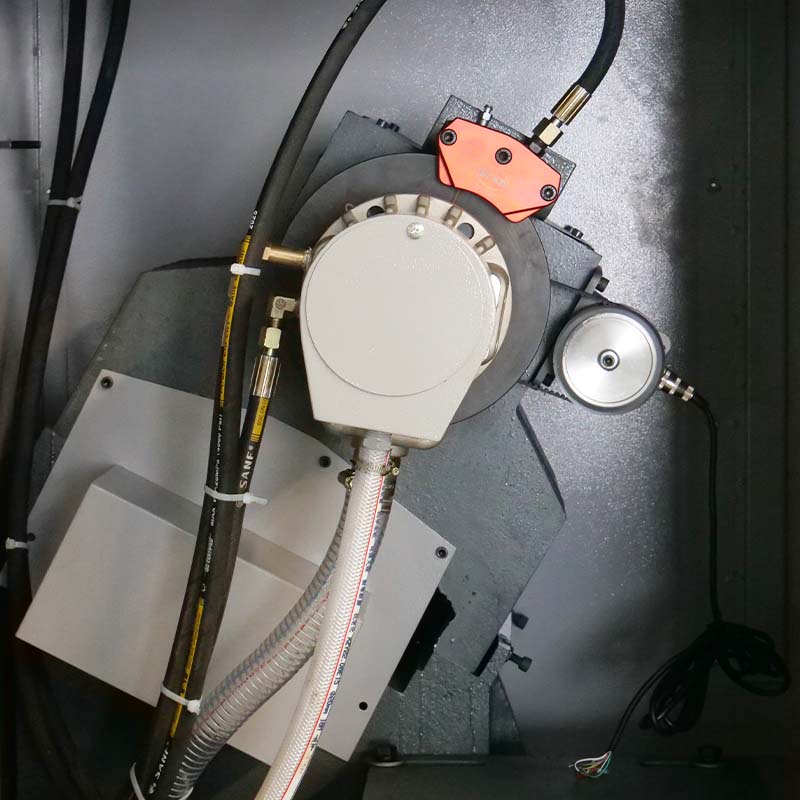

| Machine model | TCK-36 |
| Machine dimensions | 1745X1410X1600 |
| Machine weight | 1.3 tons |
| Machine tool type (overall) | |
| Bed structure | Slant bed with roller guide rails |
| Protection type | Fully stainless steel guards |
| Clamping type | Hydraulic clamping |
| Scope of work | |
| Maximum rotation diameter | 350mm |
| Maximum rotation diameter through cross slide | 130mm |
| Maximum length from the spindle end to cross slide | 380mm |
| Tool center height | 65mm |
| Feeding part | |
| X-axis maximum travel | 700mm |
| Z-axis maximum travel | 350mm |
| X-axis maximum travel speed | 15000mm/min |
| Z-axis maximum travel speed | 15000mm/min |
| Spindle | |
| Spindle bore diameter | Dia. 52mm |
| Bar through hole diameter | Dia. 40mm |
| Spindle Flange Interface | A2-5 unit spindle |
| Spindle Head Runout | 0.005mm |
| Spindle Bearing Specifications | 7215 |
| 7213 | |
| P4 | |
| Spindle bore dimensions | 22・ |
| Spindle through-hole diameter | 42mm |
| Maximum spindle speed | 100-3000r/min |
| Spindle motor power | 5.5KW (frequency main motor) |
| Chuck | 6 inches |
| Screw | |
| Screw Style | Ball leadscrew |
| X-Axis Screw Specifications | 2508 |
| Z-Axis Screw Specifications | 3208 |
| Tool Holder | |

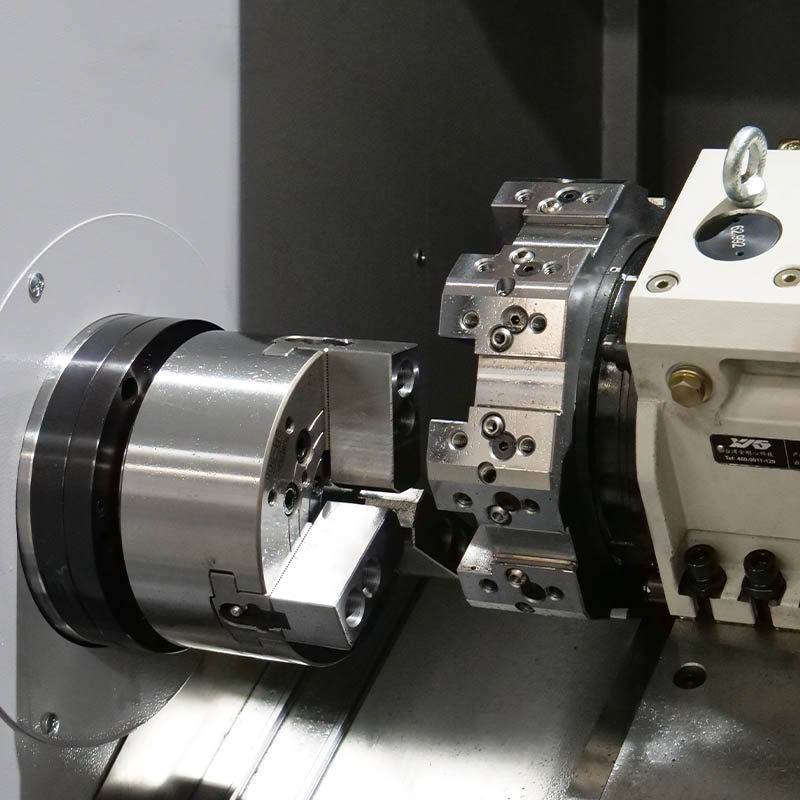

| Tool Holder Type | 6 positions electrical toolpost |
| Applicable Toolholders | 20mm |
| Accuracy | |
| X/Z axis positioning accuracy | 0.008mm |
| X/Z axis repeatability | 0.005mm |
| Diameter consistency | 0.03/300mm |
| Flatness | 0.03/300mm |
| Roughness | 0.8-1.6 |
