TCK56A
WMTCNC
| Quantity: | |
|---|---|

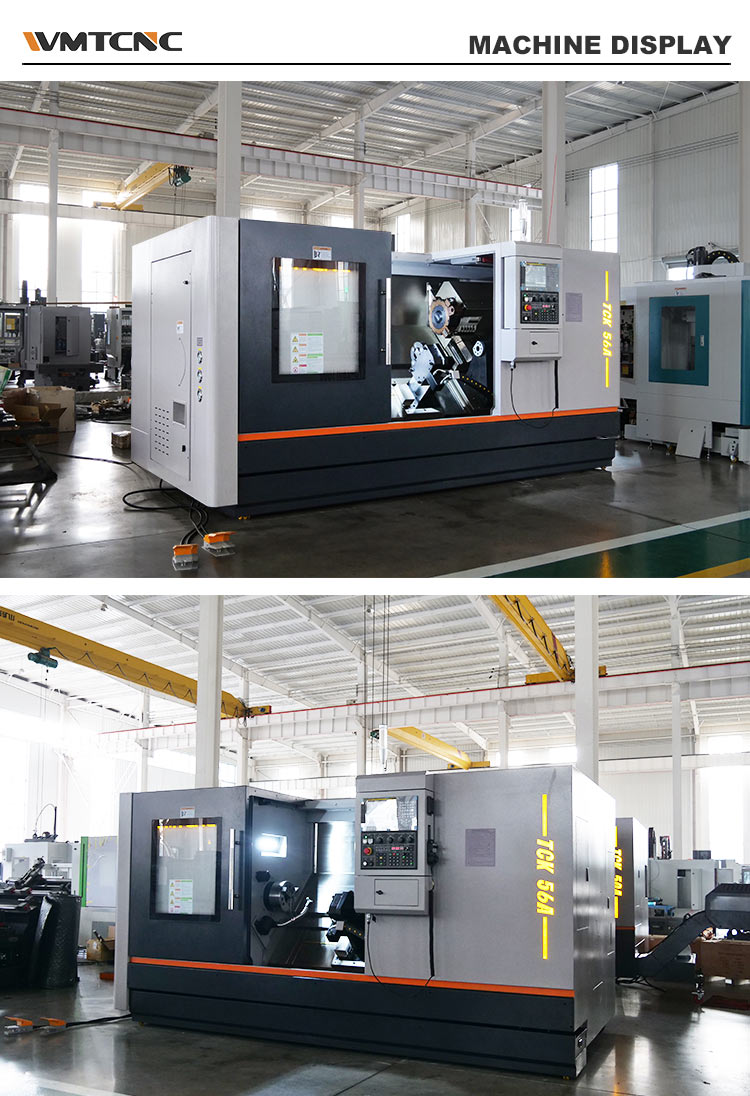

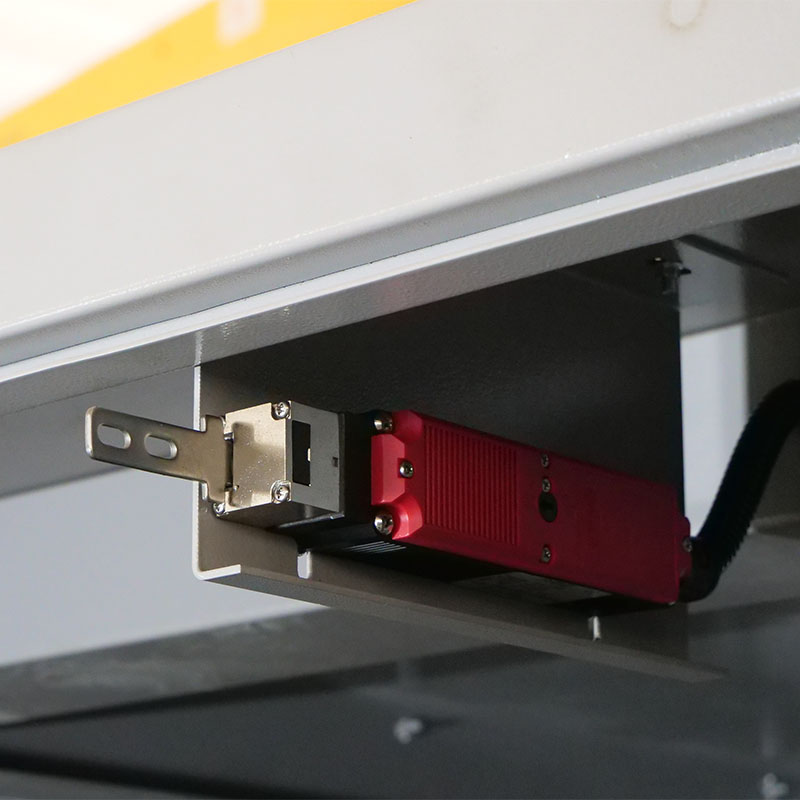

Product Description
Main Features:
1. High precision slant bed line rail CNC lathe with Taiwan screw and linear guideway.
2. High precision cartridge type spindle ensure the rigidity and precision.
3. Taiwan high precision C3 grinding ball screw ensure positioning and more stable.

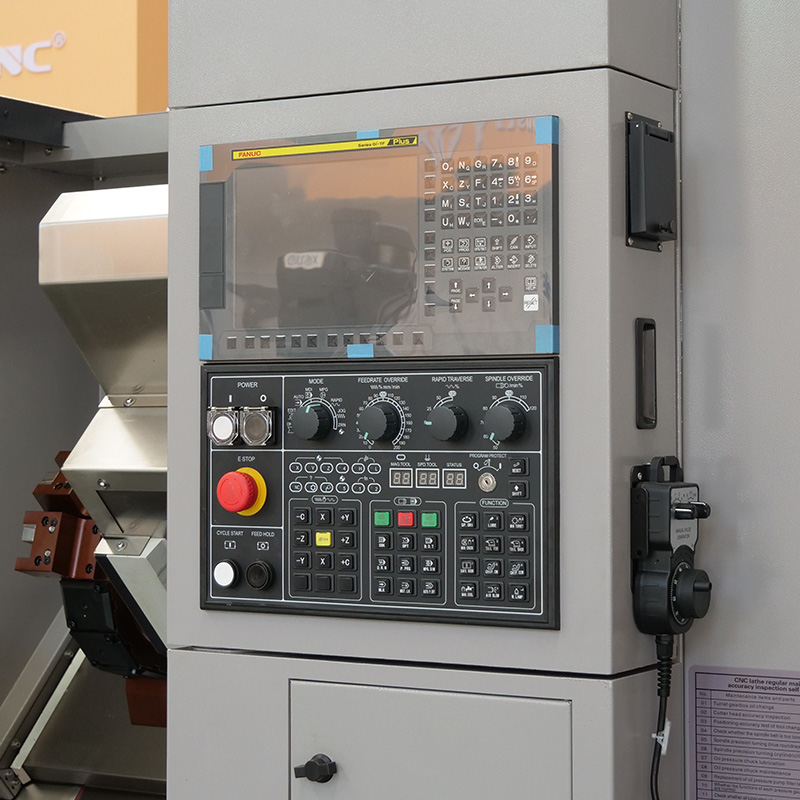

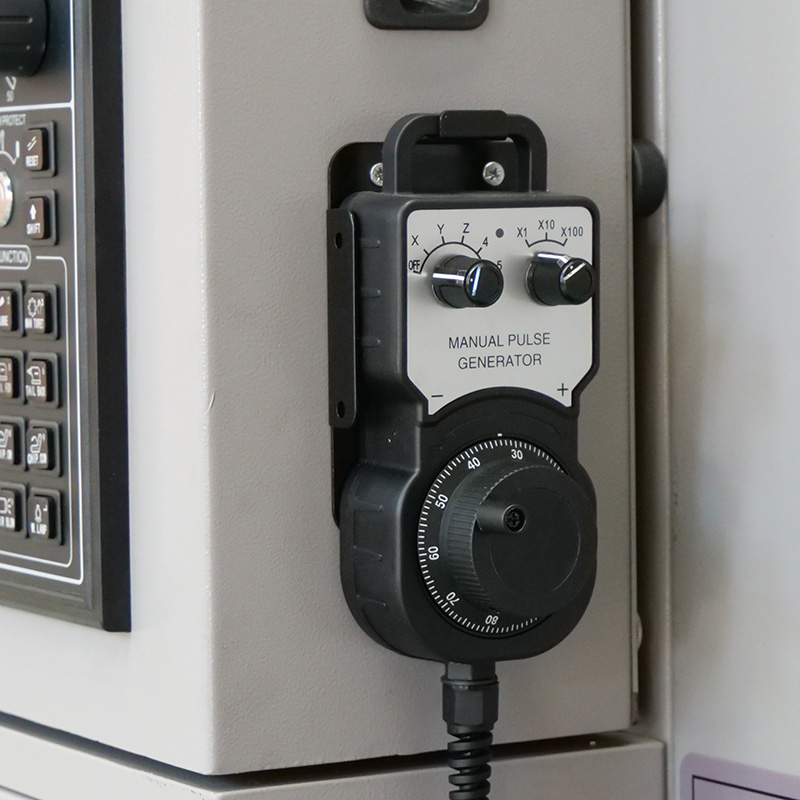

4. Siemens, Fanuc, Syntec, Fagor controller system options.
5. Monoblock cast iron of the whole machine ensure high rigidity.

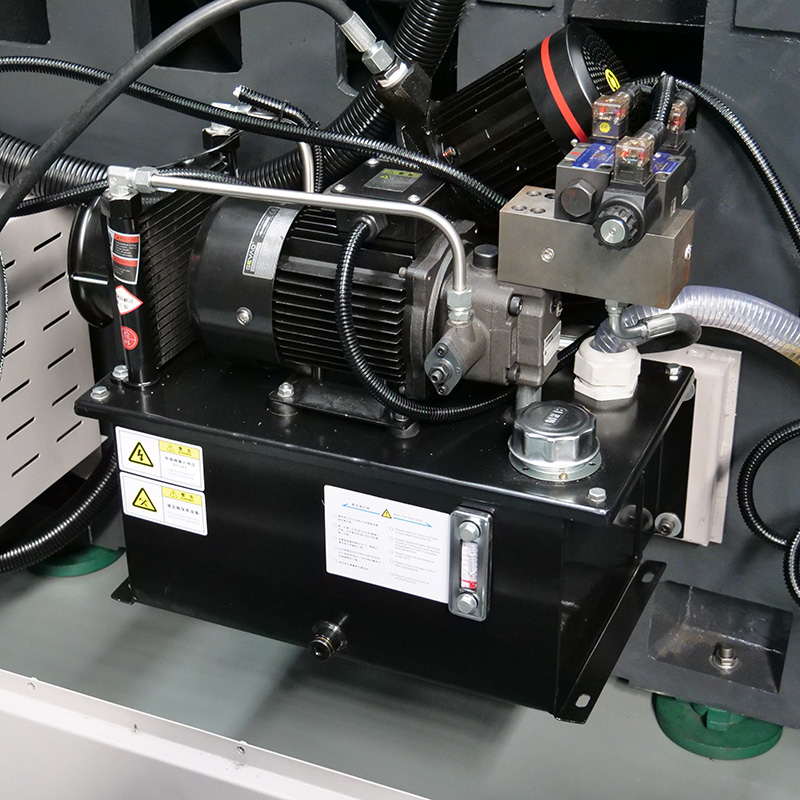

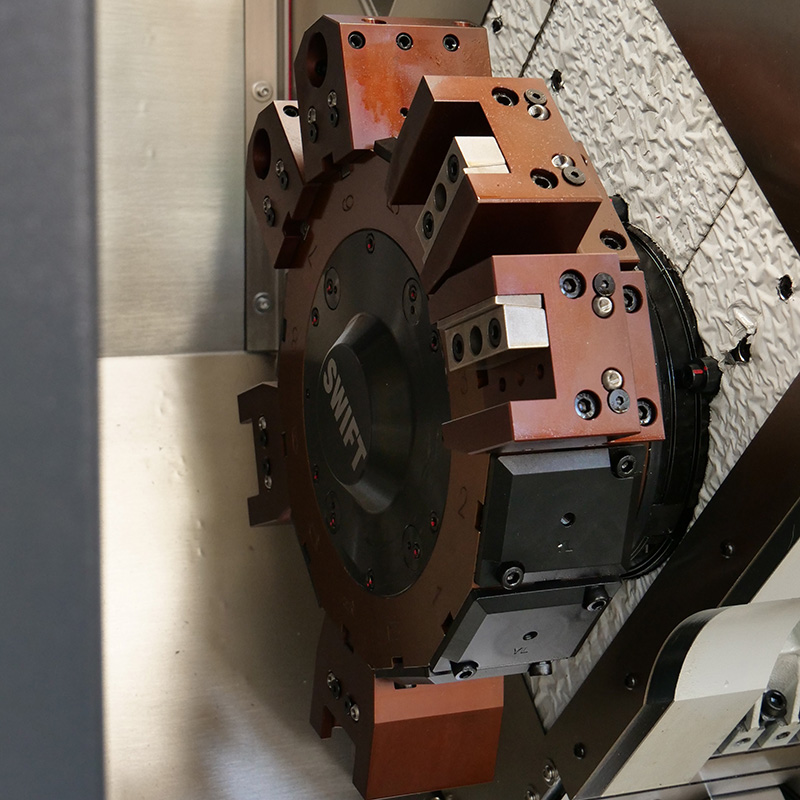

| Specification | TCK56A-500 | TCK56-1000A |
| Capacity | ||
| Max. swing dia. over bed | φ560mm | φ560mm |
| Max. length of workpiece | 460mm | 960mm |
| Max. turning dia. | Φ460mm (Disc parts) Φ340mm (Shaft parts) | Φ460mm (Disc parts) Φ340mm (Shaft parts) |
| Max. swing dia. over slide | φ340mm | φ340mm |
| Bed type and slant angle | Integrated bed/45° | Integrated bed/45° |
| Spindle | ||
| Spindle speed range | 50～3000rpm | 50～3000rpm |
| Spindle bore | φ65mm,*φ85mm | φ65mm,*φ85mm |
| Max. bar diameter | φ50mm,*φ70mm | φ50mm,*φ70mm |
| Spindle nose | A2-6 | A2-6 |
| Max. spindle output torque | 150Nm | 150Nm |
| Spindle motor | 11kw | 11kw |
| Hydraulic chuck size | 8''/10" | 8''/10" |
| Axis | ||
| X axis travel | 220mm | 220mm |
| Z axis travel | 560mm | 1060mm |
| X axis rapid traverse | 30m/min | 30m/min |
| Z axis rapid traverse | 30m/min | 30m/min |
| Turret | ||
| Type | Sevro Turret | Sevro Turret |
| No. of tool station | 8position | 8position |
| Tool shank size | 25×25mm | 25×25mm |
| Boring tool shank size | φ32/φ40 | φ32/φ40 |
| Tailstock | ||
| Tailstock travel | 450mm | 950mm |
| Taper of tailstock quill | MT5 | MT5 |
| Max. Loading Capacity | ||
| Disk parts | 200kg | 200kg |
| Shaft parts | 500kg | 500kg |
| Machine Dimensions | ||
| Overal dimension（L x W x H） | 2850×2068×1880mm | 3660×2070×1880mm |
| Machine weight | 4000kg | 4500kg |
