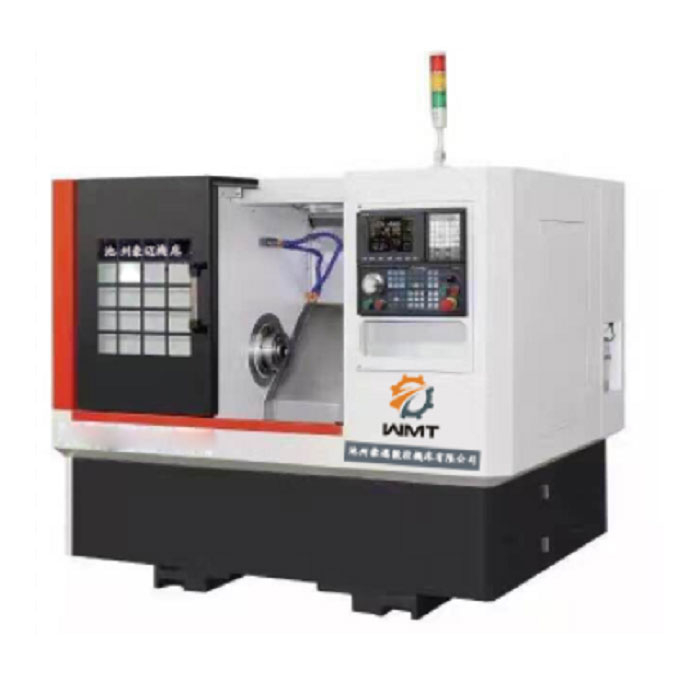

Product Description
Product Application
High precision:2-axis linear way, high-precision linear guide rdeuce wear and tear
Screw in the center of guide way enhances the stability of the machine tools
Tool post are used to improve the processing efficiency, accuracy and stability triangular
Enclose can be fixed with GSK, or Siemens controlling system
| Specifications | TCK6336 |
| Max.swing over bed | 400mm |
| Max.swing over cross slide | 180mm |
| Max.machining length | 200mm |
| X/Z axis travel | 400/300mm |
| Spindle unit | 140mm |
| Spindle nose | A2-5 |
| Spindle bore | 48mm |
| Bar capacity | 40mm |
| Max.spindle speed | 4000rpm |
| Chuck size | 6" |
| Spindle motor power | 3.7kw |
| X/Z axis repeatability | ±0.003mm |
| X/Z axis feed motor torque | 6/6N.m |
| X/Z rapid traverse | 18/15m/min |
| Tool post type | Gang tools/optional for turret |
| Cutting tool shape size | 20x20mm |
| Guide form | 45 degree |
| Total power capacity | 9/11KVA |
| Machine dimension(LxWxH) | 2200x1530x1780mm |
| Heavy weight | 2200kgs |
