TCK66A China High Speed Slant Bed CNC Lathe Automatic CNC Slant-bed Lathe Tool Turret Slant for Metalworking

Share to:

TCK66A China High Speed Slant Bed CNC Lathe Automatic CNC Slant-bed Lathe Tool Turret Slant for Metalworking

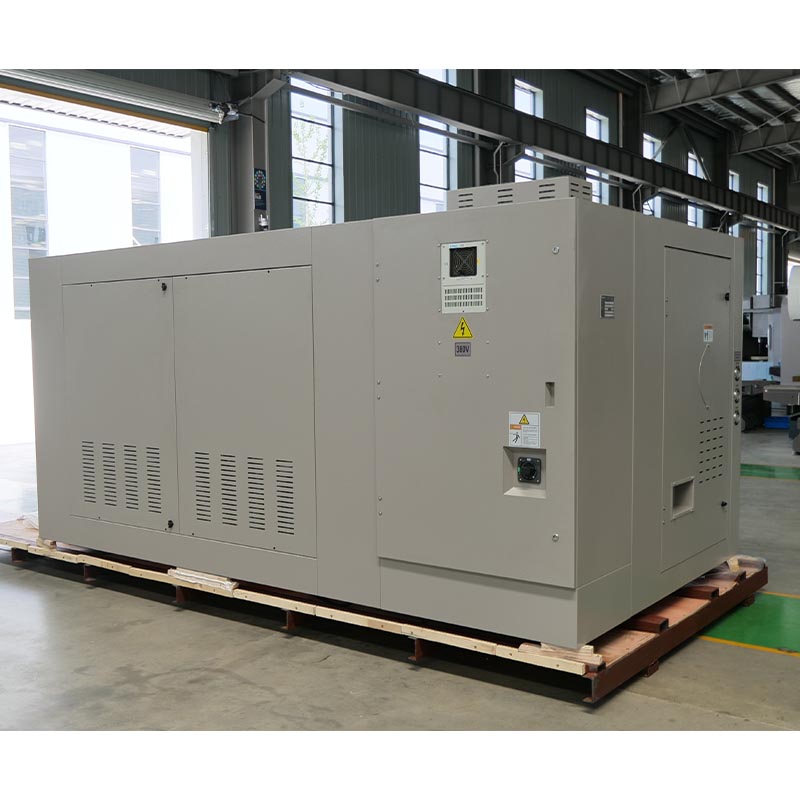

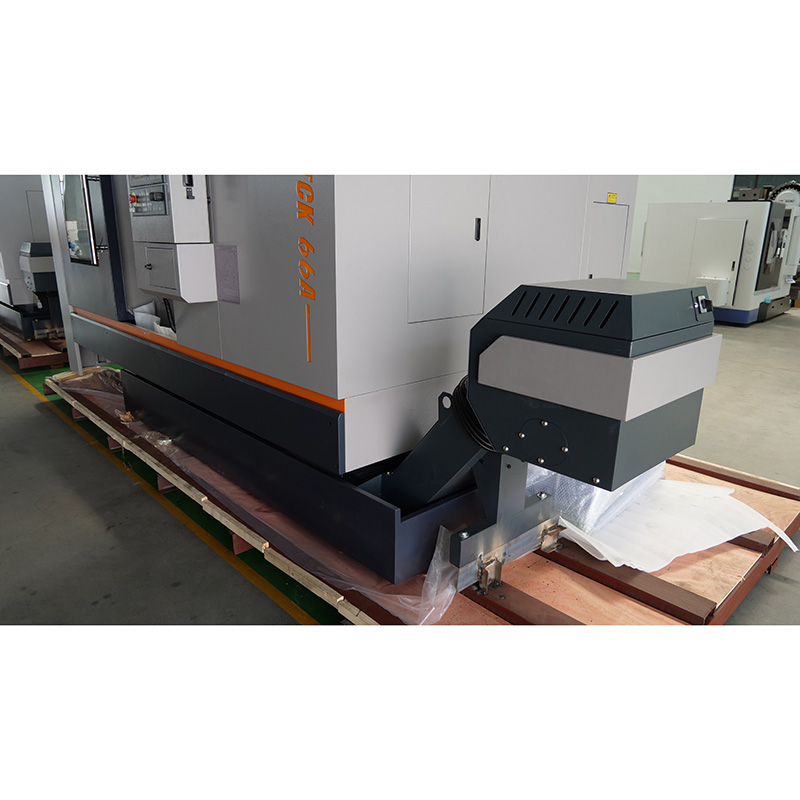

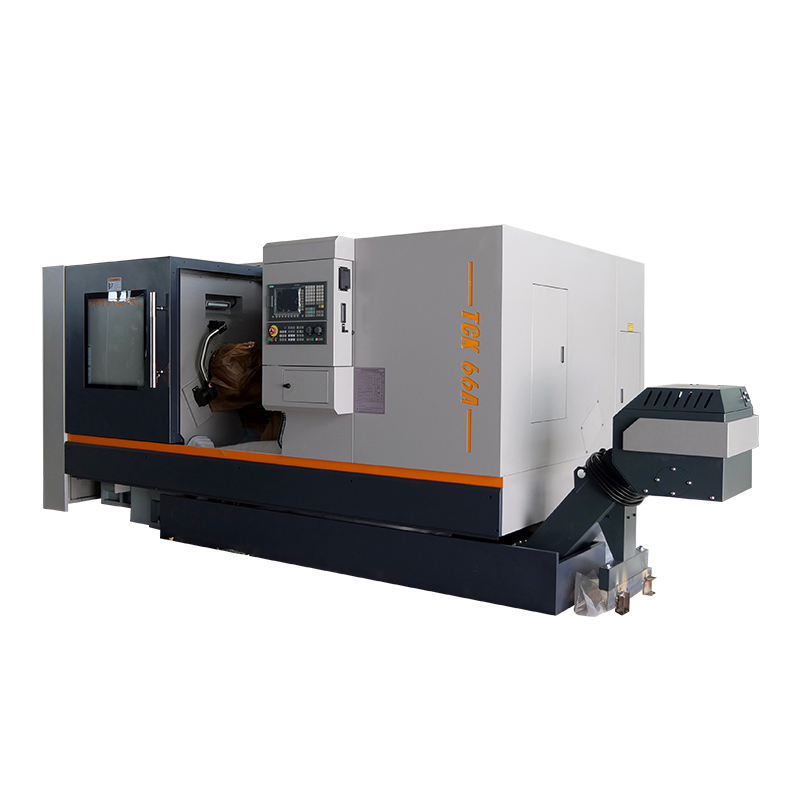

The TCK66A CNC Inclined Bed Lathe Turning Center is a high-value, high-performance precision machining solution. Built with exceptional rigidity and long-term stability, it ensures outstanding accuracy and consistency across a wide range of machining tasks. Designed to enhance productivity while reducing energy consumption, the TCK66A is suitable for precision cutting of various metals and non-metals. With its advanced structural design and reliable transmission system, this machine maintains high efficiency and stability even during extended operation, delivering consistent top-quality output and boosting overall manufacturing productivity.

Model:
TCK66A
Brand:
WMTCNC

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main Features:

1. High precision slant bed line rail CNC lathe with Taiwan screw and linear guideway.

2. High precision cartridge type spindle ensure the rigidity and precision.

3. Taiwan high precision C3 grinding ball screw ensure positioning and more stable.

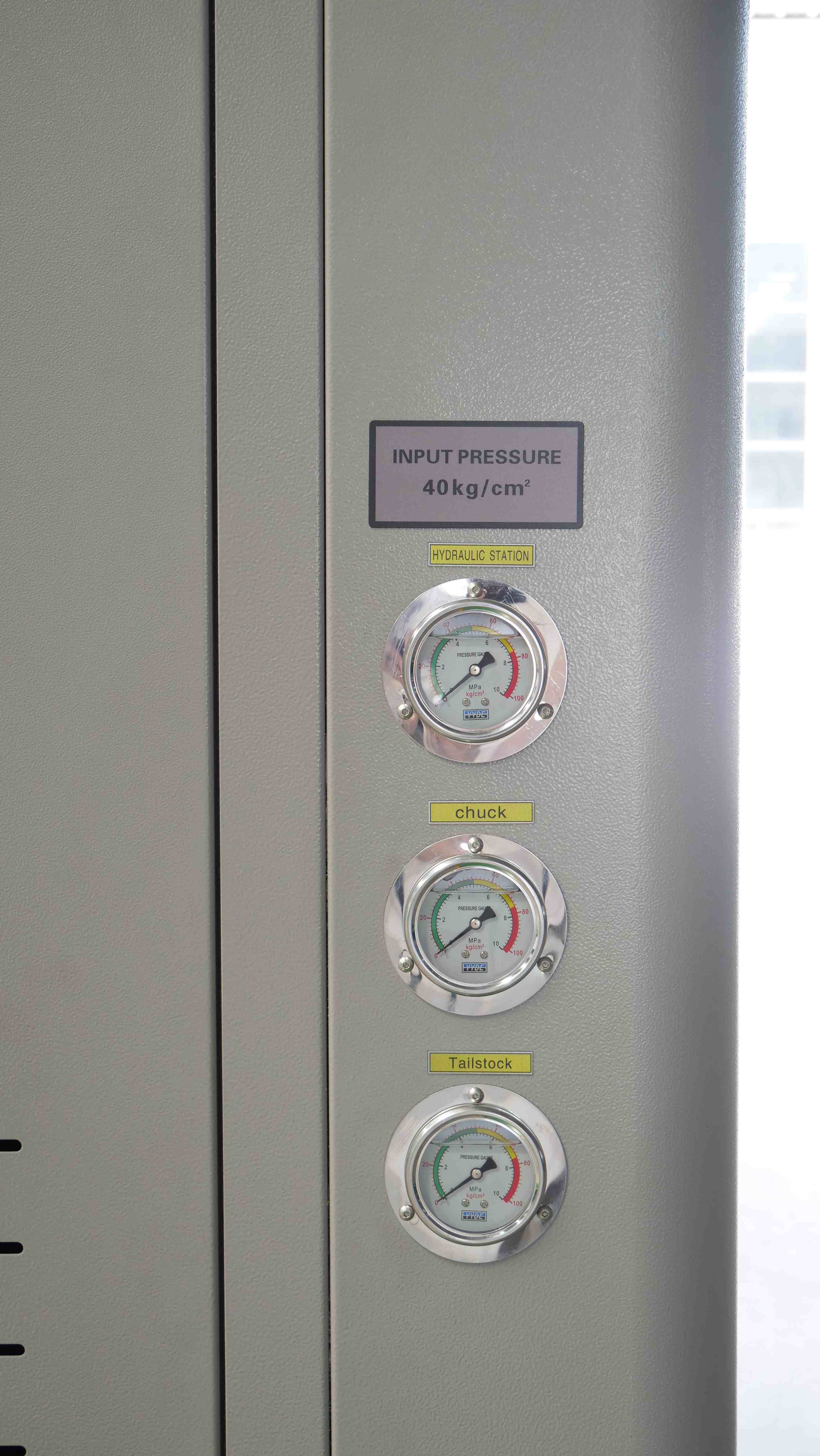

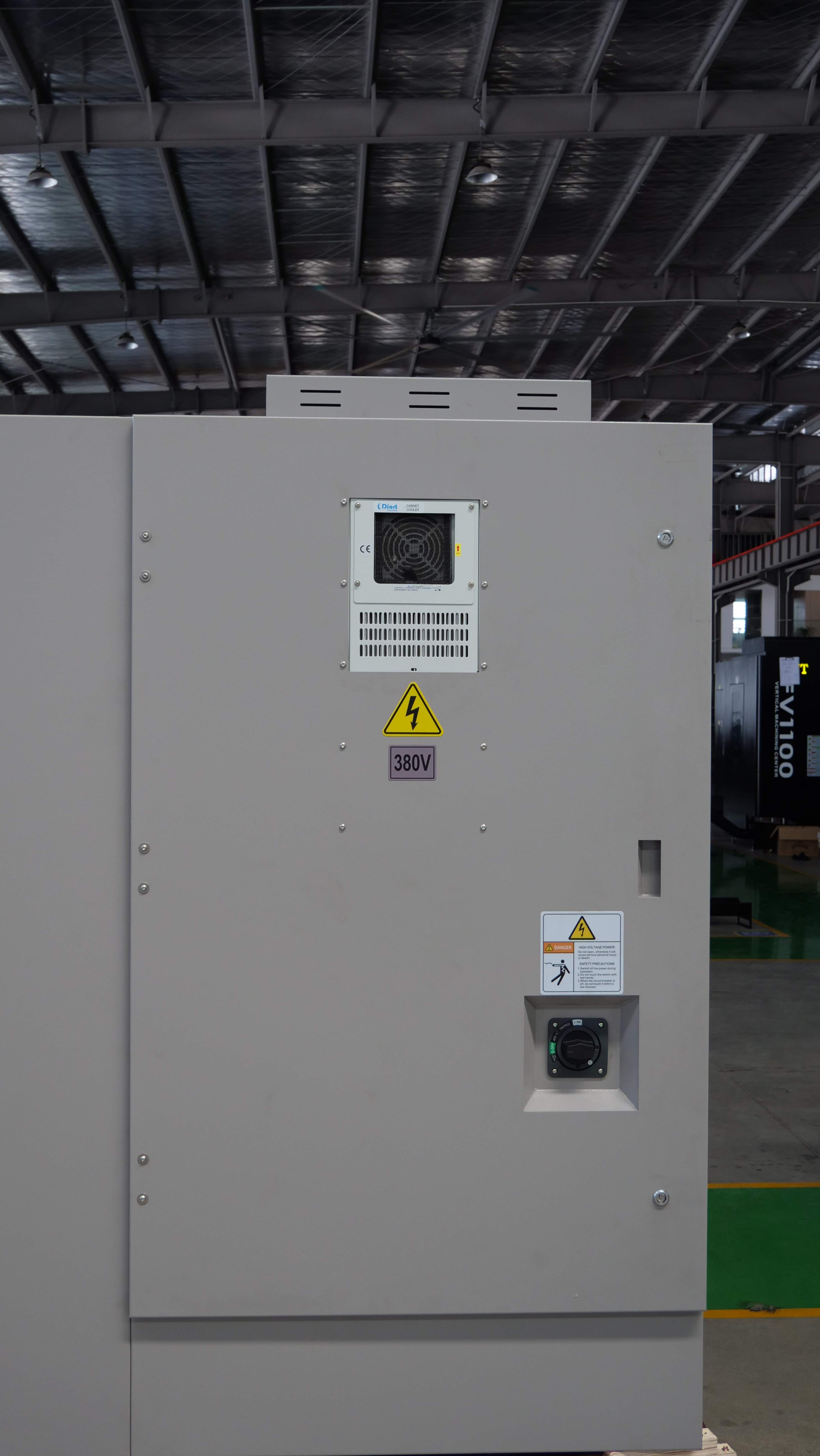

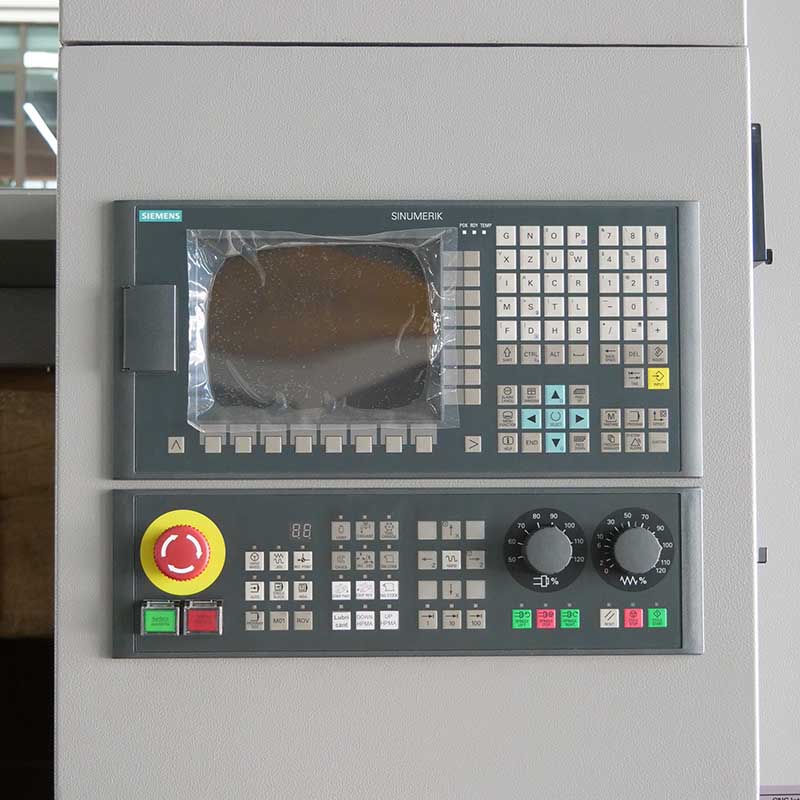

4. Siemens, Fanuc, Syntec, Fagor controller system options.

5. Monoblock cast iron of the whole machine ensure high rigidity.

TCK66A_01

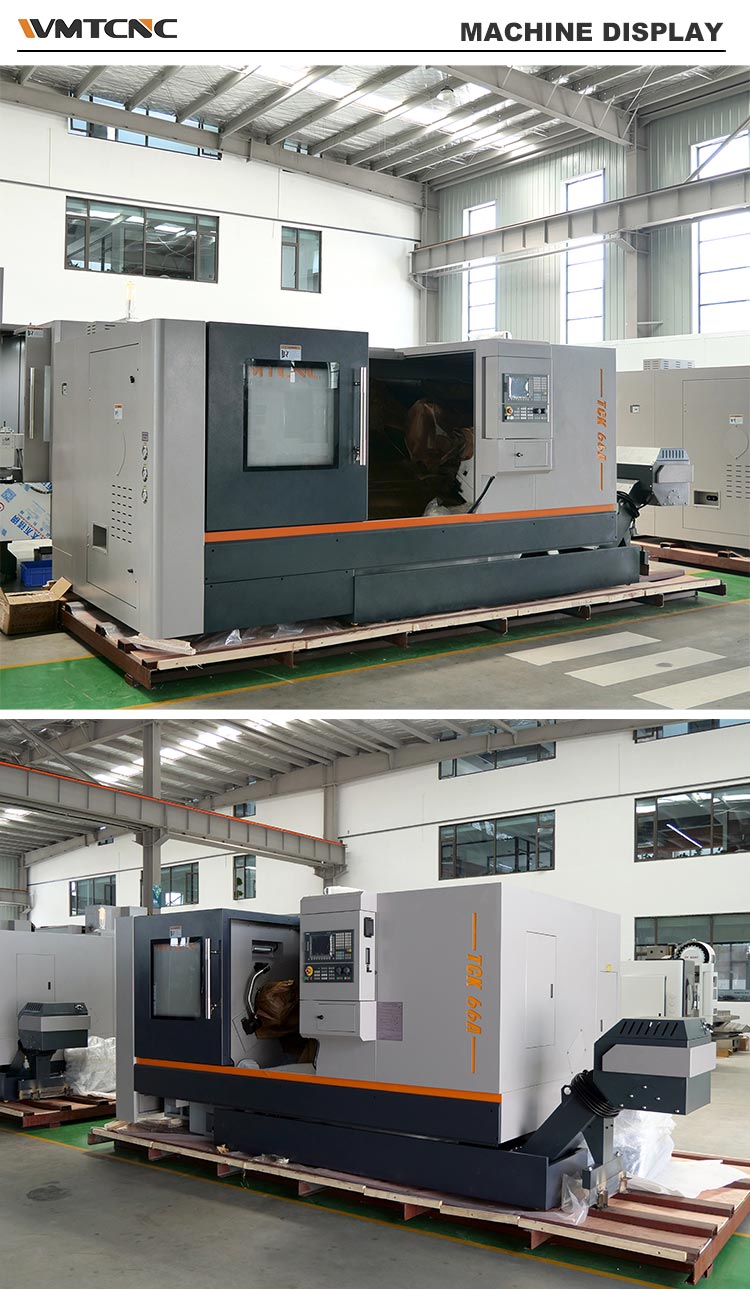

TCK66A_03

Specification	TCK66-1000/1500/2000/3000	TCK80-1000/1500/2000/3000
Capacity
Max. swing dia. over bed	φ650mm	φ780mm
Max. length of workpiece	850/1500/2000/3000mm	1000/1500/2000/3000mm
Recommended standard tuming diameter	ф305mm	ф460mm
Max. turning dia.	Φ500mm (Disc parts) Φ400mm (Shaft parts)	Φ630mm (Disc parts) Φ450mm (Shaft parts)
Max. swing dia. over slide	φ500mm	φ560mm
Bed type and slant angle	Integrated bed/30°	Integrated bed/30°
Spindle
Spindle speed range	60～2000r/min	50～1200r/min
Spindle bore	φ86mm	φ110mm
Max. bar diameter	φ70mm	φ90mm
Spindle nose	A2-8	A2-11
Max. spindle output torque	343Nm	423Nm
Spindle motor	15kw	18.5kw
Hydraulic chuck size	12''/15"	12''/15"
Axis
X axis travel	360mm	400mm
Z axis travel	850/1500/2000/3000mm	1000/1500/2000/3000mm
Y axis travel	/	/
X axis rapid traverse	16 Line-rail(12 Hard-rail)m/min	16 Line-rail(12 Hard-rail)m/min
Z axis rapid traverse	16 Line-rail(12 Hard-rail)m/min	16 Line-rail(12 Hard-rail)m/min
Turret
Type	Horizontal hydraulic	Horizontal hydraulic
No. of tool station	12position	12position
Tool shank size	25×25mm	32×32mm
Boring tool shank size	φ40	φ50
Tailstock
Tailstock travel	150mm	150mm
Taper of tailstock quill	MT5	MT5
Max. Loading Capacity
Disk parts	400kg	500kg
Shaft parts	800kg	1000kg
Machine Dimensions
Overal dimension（L x W x H）	4070/4820/5320/6320x2436x2480mm	4200/4920/5420x2680x2700mm 6420x2780x2800(for 3000mm length)
Machine weight	5900/7300/8200/10500kg	7500/9000/10500/13000kg
