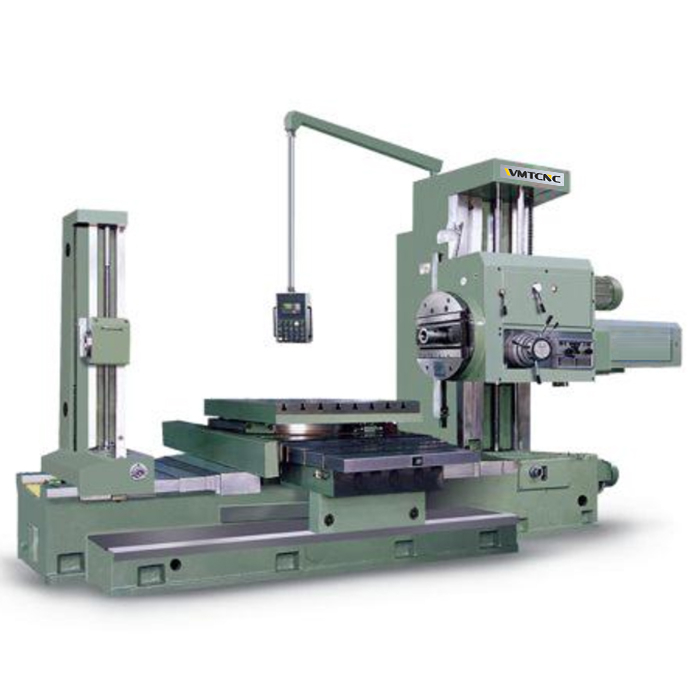

Product Description
Features:
1.intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.
2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.
| Specification | TPX6111B3 |
| The spindle diameter | φ110mm |
| Maximum torque of spindle | 1225NM |
| Maximum torsional moment of flat disk | 1960NM |
| The spindle can withstand the maximum axial resistance | 12250N |
| Taper of spindle inner bore | Morse6 |
| Bench stroke | |
| The longitudinal | 1000mm with back post 1400mm without back post |
| The transverse | 1600mm |
| The center line of the spindle is the distance from the working table | |
| The biggest | 1300mm |
| The minimum | 0 |
| Maximum travel of spindle | 600mm |
| Maximum stroke of radial tool rest of flat rotary disc | 180mm |
| The table can bear the maximum weight | 5500kg |
| Series of spindle speed | 22th |
| Spindle speed range | 8-1000r/min |
| Series of speed of flat rotary disk | 18th |
| Speed range of flat rotary disc | 4-200r/min |
| Working area of table (length × width) | 1100×1600(1600×1300)mm |
| Spindle, headstock, table vertical and horizontal fast moving speed | 2500mm/min |
| Work fast turning speed | 1r/min |
| Per spindle, spindle box, table feed series | 18th（high or low speed） |
| Horizontal rotary plate per revolution, horizontal rotary plate slider, spindle box, table in vertical and horizontal feed series | 18th |
| Horizontal rotary disk per revolution, horizontal rotary disk slider, spindle disk, table in vertical and horizontal feed range | 0.08-12mm |
| longitudinal and transverse feeding ranges of the spindle, headstock, and table for each turn | |
| When the spindle is 8-400min | 0.04-6mm |
| When the spindle is 500-1000min | 0.01-1.88mm |
| Measurement system reading accuracy (metric) | 0.005mm |
| Boring accuracy | 1T7 |
| Bore surface roughness | 3.2-1.6 |
| specification | Bore diameterΦ50-240mm， distance from Boring tool to the spindle≤450mm |
| Overall size of bed (length x width x height) | 4910×3850×3179mm |
| Machine weight (approx.) | 16000kg |
