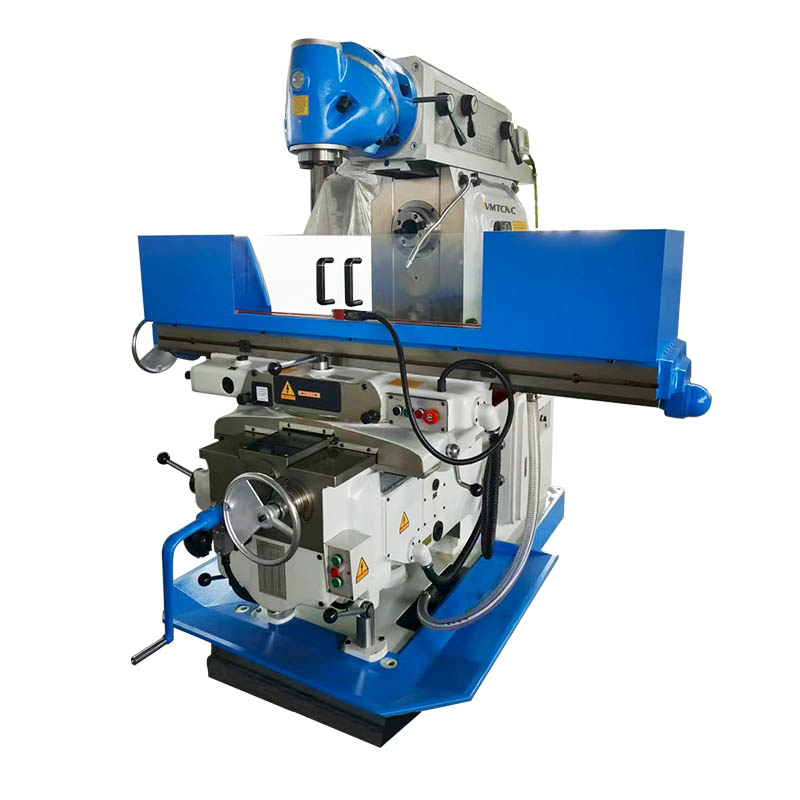

Universal Milling Machine X6440B with Univeral Dividing Head

Work table size(mm)

400x1700

T slots(NxWxD)(mm)

3x18x90

Max.Load on work table(kg)

1000

Longitudinal Travel(manual/power)X(mm)

900

Cross travel(manual/power)Y(mm)

315

Vertical travel(manual/power)Z(mm)

400

Max.rotary angle of table

±45º

Spindle hole taper

7:24 ISO:50

Distance from horizontal milling spindle face to worktable (mm)

0-400

Distance from horizontal milling spindle center to arm (mm)

200

Vertical milling spindle diameter

7:24/ISO50#

Rotary angle of universal milling head

360º

Horizontal spindle speed steps

18 steps

Horizontal spindle speed range(r/min)

30-1500

Vertical spindle speed steps

12steps

Vertical spindle speed range(r/min)

60-1750

Feed speed steps

18 steps

Feed speed range:Longitudinal X(mm/min)

23.5-1180

Cross Y(mm/min)

23.5-1100

Vertical Z(mm/min)

8-394

Rapid feed range:Longitudinal X(mm/min)

2300

Cross Y(mm/min)

2300

Vertical Z(mm/min)

770

Main motor power(kw)

11

Feed motor power(kw)

3.0

Coolant pump power (w)

125

Verical milling head motor power (kw)

4

Machine dimension(mm)

2400x2156x2210

Net weight(kg)

4250/4500
