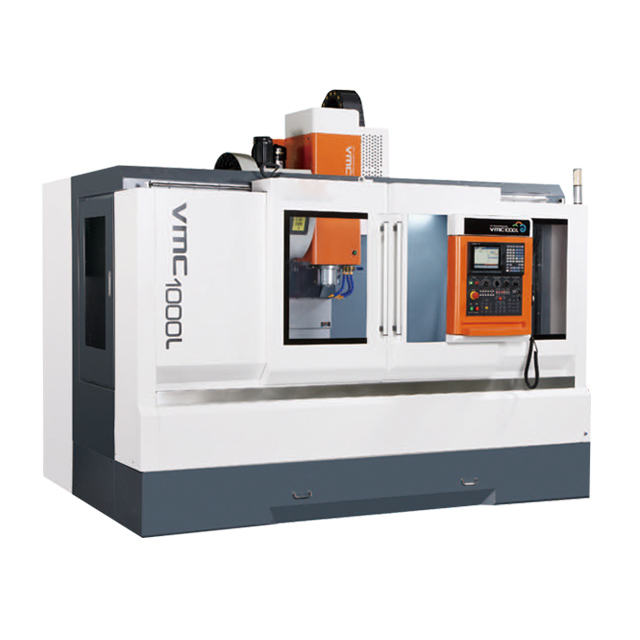

VMC1000L 39 1/3''x19 3/5'' X23 3/5'' CNC Vertical Machining Center

  • VMC1000L
  • WMT
  • 8457101000
Quantity:

Product Description

VMC1000L

加工中心细节

Specification VMC1000L
Worktable
Worktable sizeLxW 1200x500mm
T-slot (NxWx D) 5x18x100mm
Travel
X/Y/Z axis travel 1000/500/600mm
Machine range
Distance from spindle center to column 572mm
Distance from spindle nose to worktable surface 120-720mm
Spindle
Spindle taper BT40
Spindle power 7.5/11kw
Max.spindle speed 8000rpm
Feed(direct drive)
Max.feed speed 12m/min
Rapid feed speedX/Y/Z) 32/32/30m/min
Ball screw(diameter+lead)
X/Y/Z axis ball screw 4016
Tool magazine
Tool magazine capacity 24t
Tool change time(T-T) 2.5s
Positioning accuracy(National standard)
Positioning accuracyX/Y/Z) ±0.010mm
Re-positioning accuracyX/Y/Z) ±0.005mm
Machine dimension
LxWxH 3080x2320x2780mm
Machine weight
Max.loading of worktable 600kgs
Machine weight 5600kgs

Standard accessories:

Servo motor spindle BT40, 7.5Kw, s=80-8000rpm

worktable size:500x1200mm; X/Y/Z: 1000X500X600mm

Disc type ATC: 24T,X/Y/Z  linear guideway
