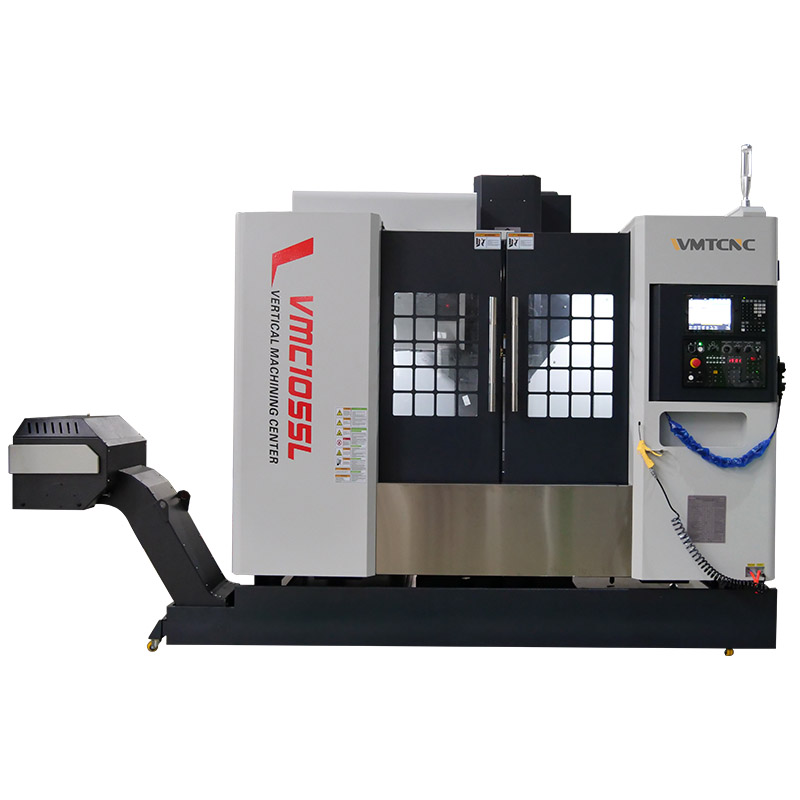

VMC1055L
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. The major machine components apply finest gray cast iron which are of good shock resistance. All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses. So that, our machine can work with high rigidity and good shock resistance for heavy cutting and intermittent cutting.
3. The joint face of components are manually polished well, which guarantees the effective contacting area.
| Specification | VMC1055L |
| Worktable | |
| Worktable size (L×W) | 1000×550mm |
| T-slots size (N×W×D) | 5-18 |
| Travel | |
| X/Y/Z axis travel | 1000/550/550mm |
| Machining range | |
| Distance from spindle center to column | 595mm |
| Distance from spindle nose to worktable surface | 120-670mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 7.5kw |
| Max. spindle speed | 8000rpm |
| Feed | |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 24/24/20m/min |
| Ball screw (diameter+lead) | |
| X/Y/Z axis ball screw | \ |
| Tool magazine | |
| Tool magazine capacity | 24T |
| Max. length of tool | 200mm |
| Tool change time | 1.5s |
| Positioning accuracy (National standard) | |
| Positioning accuracy (X/Y/Z) | ±0.01mm |
| Re-positioning accuracy(X/Y/Z) | ±0.003/300mm |
| Machine dimension | |
| L×W×H | 2807x2238x2250mm |
| Machine weight | |
| Max. loading of worktable | 600kg |
| Machine weight | 5500kg |
