Product Description

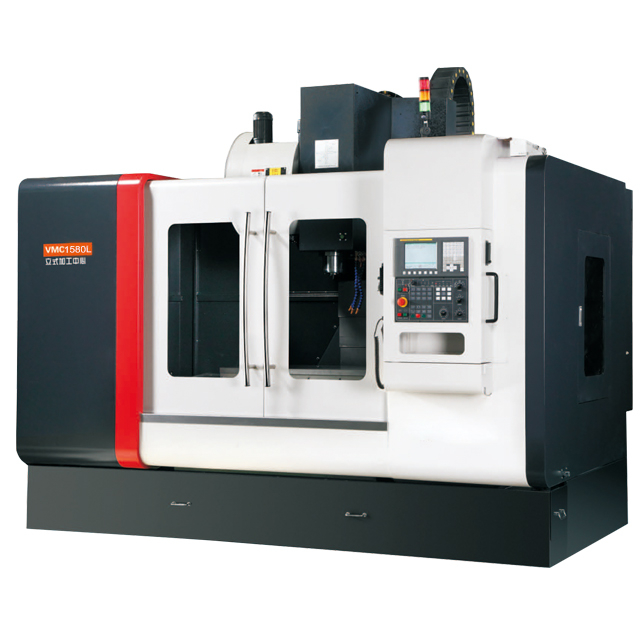

| Specification | VMC1580L |
| Worktable | |
| Worktable size（LxW） | 1600x800mm |
| T-slot (NxWx D) | 7x22x110mm |
| Travel | |
| X/Y/Z axis travel | 1500/800/700mm |
| Machine range | |
| Distance from spindle center to column | 865mm |
| Distance from spindle nose to worktable surface | 185-885mm |
| Spindle | |
| Spindle taper | BT50 |
| Spindle power | 15/18.5kw |
| Max.spindle speed | 6000rpm |
| Feed(direct drive) | |
| Max.feed speed | 8m/min |
| Rapid feed speed（X/Y/Z) | 20/20/12m/min |
| Ball screw(diameter+lead) | |
| X/Y/Z axis ball screw | 5010 |
| Tool magazine | |
| Tool magazine capacity | 24t |
| Tool change time(T-T) | 3.5s |
| Positioning accuracy(National standard) | |
| Positioning accuracy（X/Y/Z) | ±0.015mm |
| Re-positioning accuracy（X/Y/Z) | ±0.010mm |
| Machine dimension | |
| LxWxH | 4300x3600x3200mm |
| Machine weight | |
| Max.loading of worktable | 1500kgs |
| Machine weight | 15000kgs |
Standard accessories:
Servo motor spindle BT50, 15Kw, s=80-6000rpm
Worktable size:800x1700mm
X/Y/Z: 1500X800X700mm
Disc type ATC: 24T
X/Y linear guideway,Z hard guideway
Chain type chip conveyor
