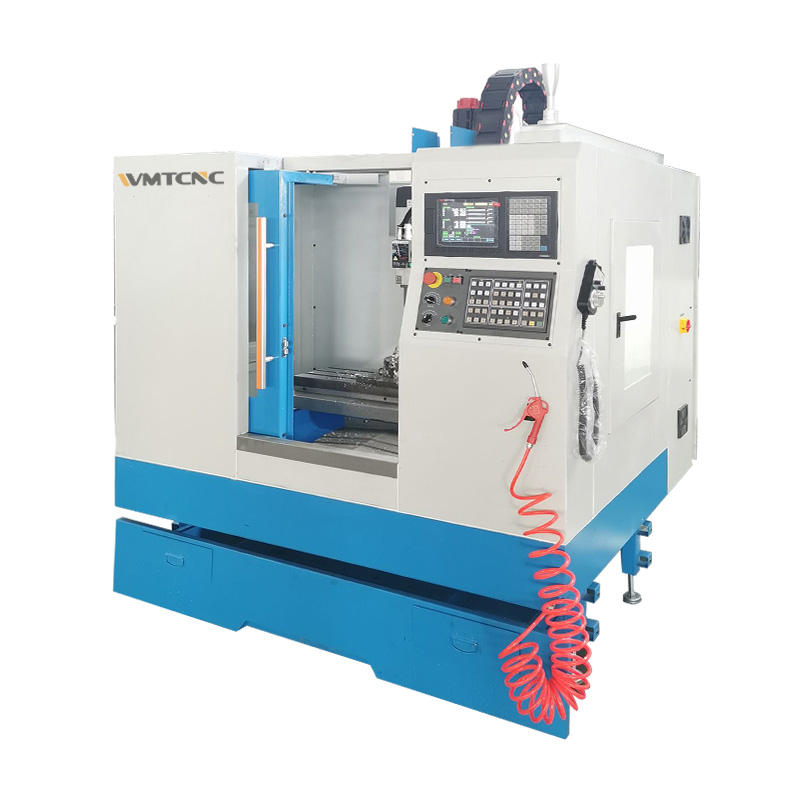

VMC400
WMTCNC
8459619000
| Quantity: | |
|---|---|
Product Description
Features:
Ball Screw/Linear Guides
X/Y/Z Axis Servo Drive
Spindle Speed: 8000 RPM
| Specification | VMC400 |
| Worktable size | 820×230mm |
| Workspace | 200×400×300mm |
| X movement | 400mm |
| Y movement | 200mm |
| Z movement | 300mm |
| X rapid feed | 8000mm/min |
| Y rapid feed | 8000mm/min |
| Z rapid feed | 6000mm/min |
| Feed system | Ball screw / Linear guideway |

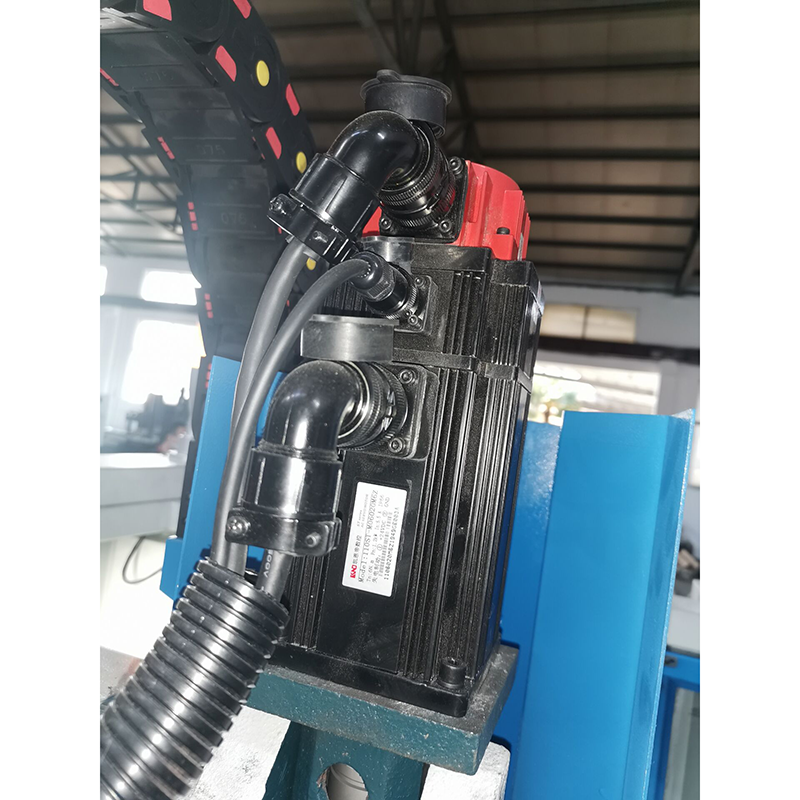

| X axis motor | Servo motor |
| Y axis motor | Servo motor |
| Z axis motor | Servo motor |
| Minimum movement precision | 0.07mm |
| Repeat accuracy | 0.01mm |
| Input power | 380V / 3 phase |
| Spindle speed range | 8000 RPM |
| Packing size (L × W × H) | 1900×1600×2000mm |
| Gross weight | 1300kgs |
