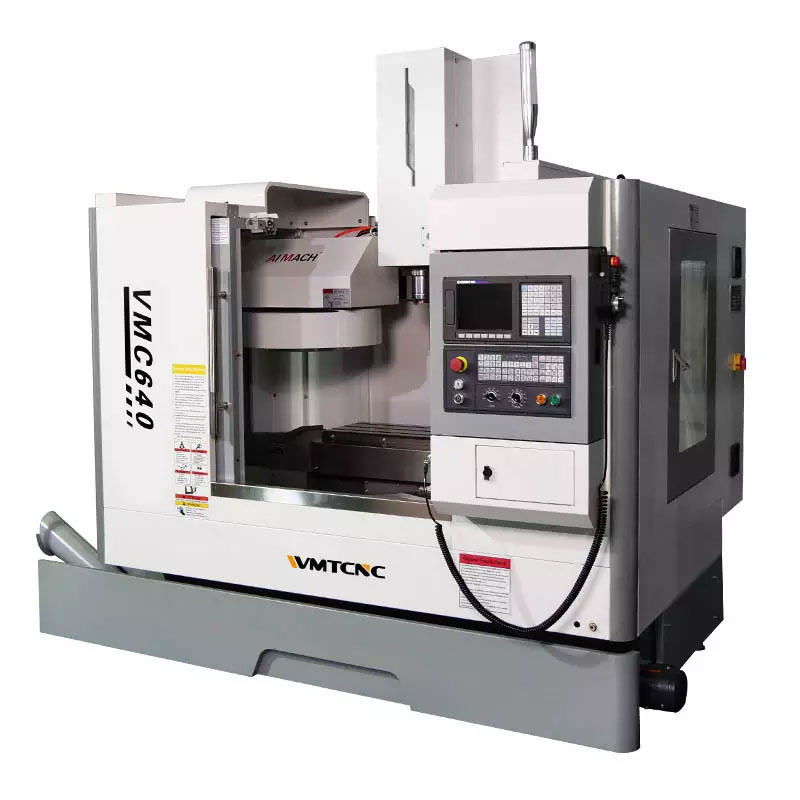

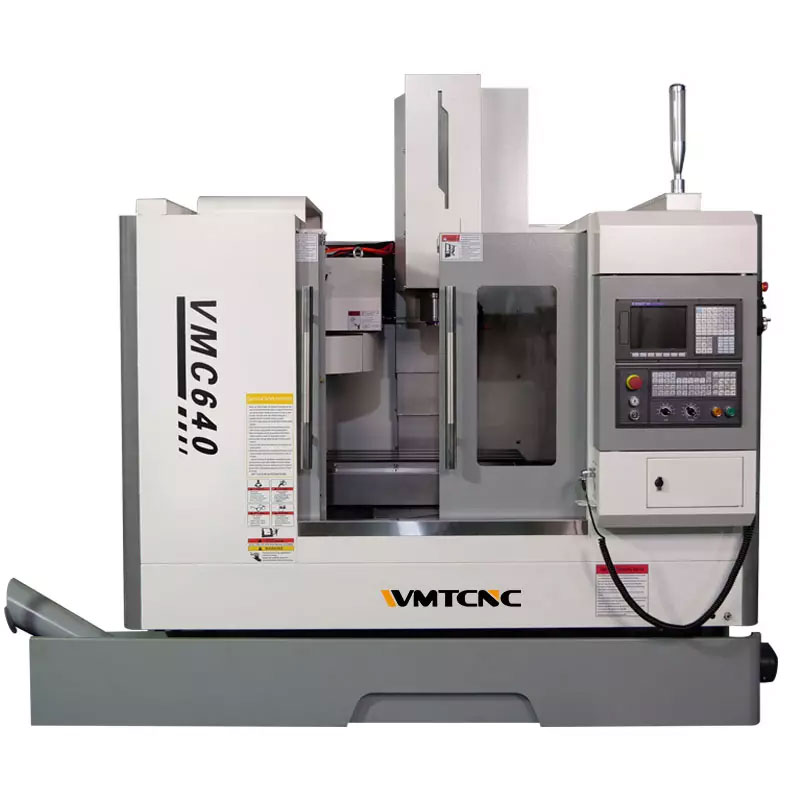

VMC640 Vmc 4 Axis Cnc Vertical Cnc Machining Center with CE Certificate

  • VMC640
  • WMTCNC
  • 8457101000
Availability:
Quantity:

Product Description

Features:

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

VMC640-1

Specification
VMC640
Worktable Size
800X320mm
Travel(Longitudinal X/ Horizontal Y/ Vertical Z)
600X400X450mm
Distance of Spindle Axis to Guideway Plane
400mm
Distance of Spindle End to Worktable
80-530mm
Max. Spindle Rotating Speed
8000rpm Servo Spindle
Spindle Taper
BT40
Main Motor Power
5.5KW
Tool Magazine
12T Taiwan Umbrella Type
Z Motor Torque
15N.m
X Motor Torque
6N.m
Y Motor Torque
6N.m
The Vertical Permissible Error of Spindle Axis to Worktable Plane
≤0.02mm
Positioning Accuracy
0.02mm
Repeated Positioning Accuracy
0.01mm
System Configuration
Siemens/FANUC/GSK Available
Machine Overall Dimension (L*W*H)
2300*1950*2400mm
Machine Net Weight
2600kgs
External Protection Level
Full Closed
