VMC640L 23 3/5'' X 15 4/5'' X 17 4/5'' CNC Vertical Machining Center 3 Axis Linear Guideway

  • VMC640L
  • WMT
  • 8457101000
Quantity:

Product Description

VMC640L


Specification VMC640L
Worktable
Worktable size(LxW) 900x400mm
T-slot (NxWx D) 3x18x100mm
Travel
X/Y/Z axis travel 640/400/500mm
Machine range
Distance from spindle center to column 476mm
Distance from spindle nose to worktable surface 120-620mm

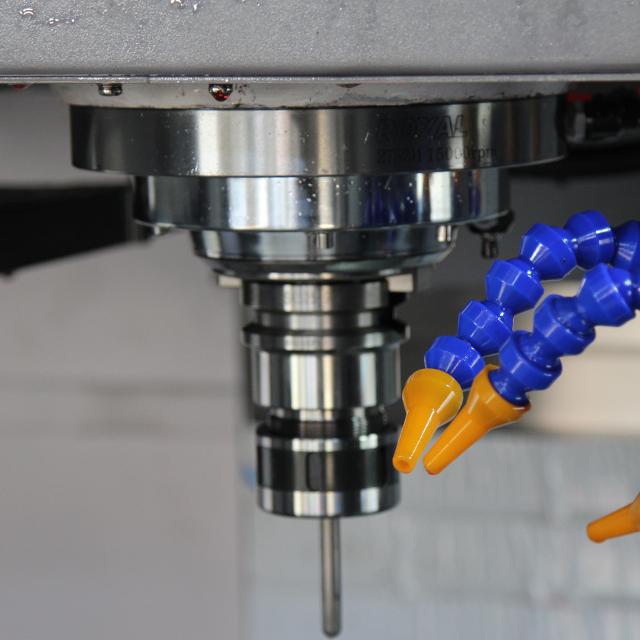

Spindle
Spindle taper BT40
Spindle power 5.5kw
Max.spindle speed 8000rpm
Feed(direct drive)
Max.feed speed 15m/min
Rapid feed speed(X/Y/Z) 30/30/24m/min
Ball screw(diameter+lead)
X/Y/Z axis ball screw 3212/3212/4012
Tool magazine
Tool magazine capacity 16T
Max.length of  tool 240mm
Tool change time(T-T) 2.5s
Positioning accuracy
(National standard)

Positioning accuracy(X/Y/Z) ±0.010mm
Re-positioning accuracy(X/Y/Z) ±0.005mm
Machine dimension
LxWxH 2200x2100x2550mm
Machine weight
Max.loading of worktable 350kgs
Machine weight 4100kgs

jiagongzho

Standard accessories:

Servo motor spindle BT40, 7Kw, s=10000rpm

Worktable size:400x800mm

X/Y/Z: 600X400X450mm

umbrella type ATC: 12T

X/Y/Z Linear guideway
