VMC650L
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
All 5 axis use class precision screw, match up the nut preloading and screw prestretched, preeliminate backlash and temperature rise, so that the machine can achieve stability of the positioning and repeatability accuracy.
| Specification | VMC650L |

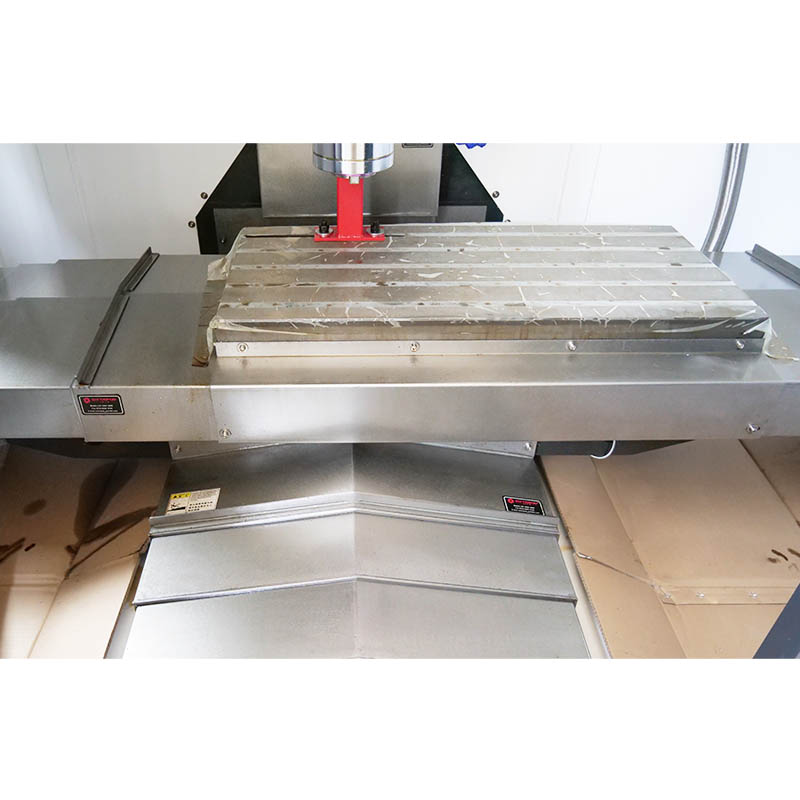

| Worktable | |
| Worktable size | 900×400mm |
| (L×W) | |
| T-slots size(N×W×D) | 5-16x75mm |
| Travel | |
| X/Y/Z axis travel | 650/450/500mm |
| Machining range | |
| Distance from spindle center to column | 460mm |
| Distance from spindle nose to worktable surface | 120-620mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 5.57.5kw |
| Max spindle speed | 8000rpm |
| Feed | |
| Max.cuting feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 20/20/12m/min |
| Ball screw (diameter+lead) | |
| X/Y/Z axis ball screw | 4012 |

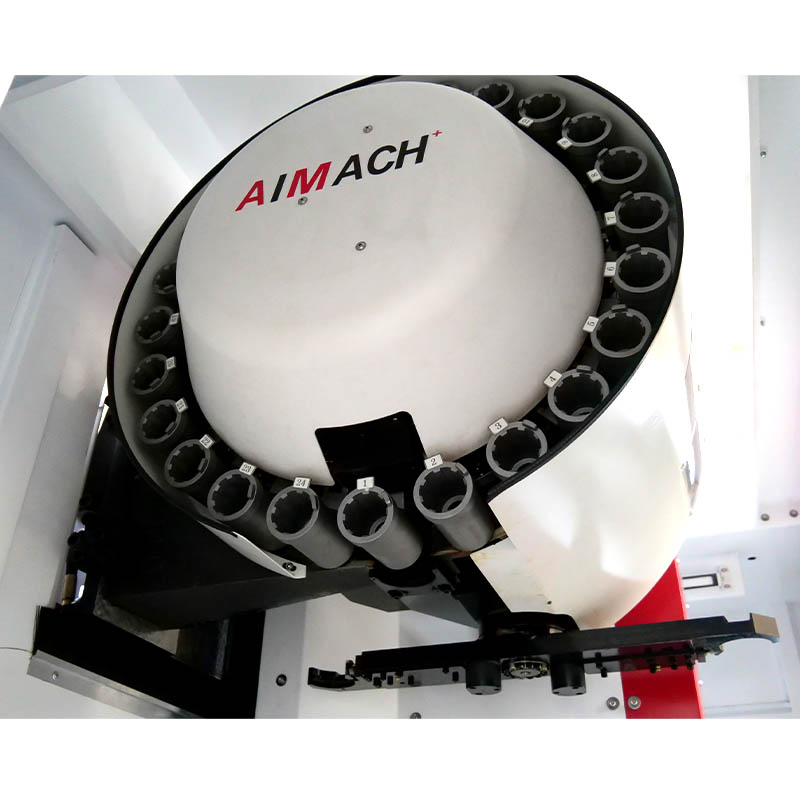

| Tool magazine | |
| Tool magazine capacity | 16/*24T |
| Max.length of tool | 300mm |
| Tool change time | 71.5s |
| Postong cuay(GB standard) | |
| Positoning acuracy(X/Y/Z) | ±0.005mm |
| Repsioning acuracy(X/Y/Z) | ±0.003mm |
| Machine dimension | |
| LxWXH | 2300×2200×2400mm |
| Machine weight | |
| Max.loading of worktable | 400kg |
| Machine weight | 3800kg |
