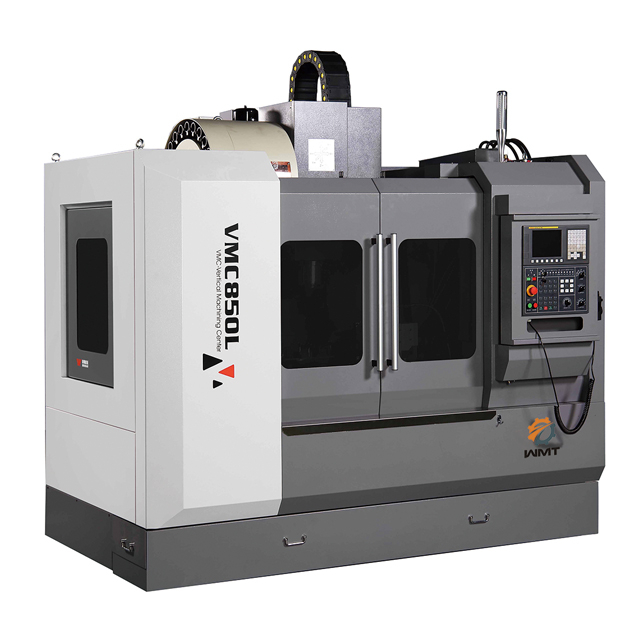

Specification | VMC850L |
Worktable |
|
Worktable size(LxW) | 1000x500mm |
T-slot (NxWx D) | 5x18x100mm |
Travel |
|
X/Y/Z axis travel | 850/500/600mm |
Machine range |
|
Distance from spindle center to column | 572mm |
Distance from spindle nose to worktable surface | 120-720mm |
Spindle |
|
Spindle taper | BT40 |
Spindle power | 7.5/11kw |
Max.spindle speed | 8000rpm |
Feed(direct drive) |
|
Max.feed speed | 12m/min |
Rapid feed speed(X/Y/Z) | 32/32/30m/min |
Ball screw(diameter+lead) |
|
X/Y/Z axis ball screw | 4016 |
Tool magazine |
|
Tool magazine capacity | 24T |
Max.length of tool | 300mm |
Tool change time(T-T) | 2.5s |
Positioning accuracy (National standard) |
|
Positioning accuracy(X/Y/Z) | ±0.010mm |
Re-positioning accuracy(X/Y/Z) | ±0.005mm |
Machine dimension |
|
LxWxH | 2540x2320x2780mm |
Machine weight |
|
Max.loading of worktable | 500kgs |
Machine weight | 5200kgs |
Standard accessories:
Servo motor spindle BT40, 7.5Kw, s=80-8000rpm
Worktable size:500x1000mm
X/Y/Z: 850X500X600mm
Disc type ATC: 24T
X/Y/Z linear guideway
