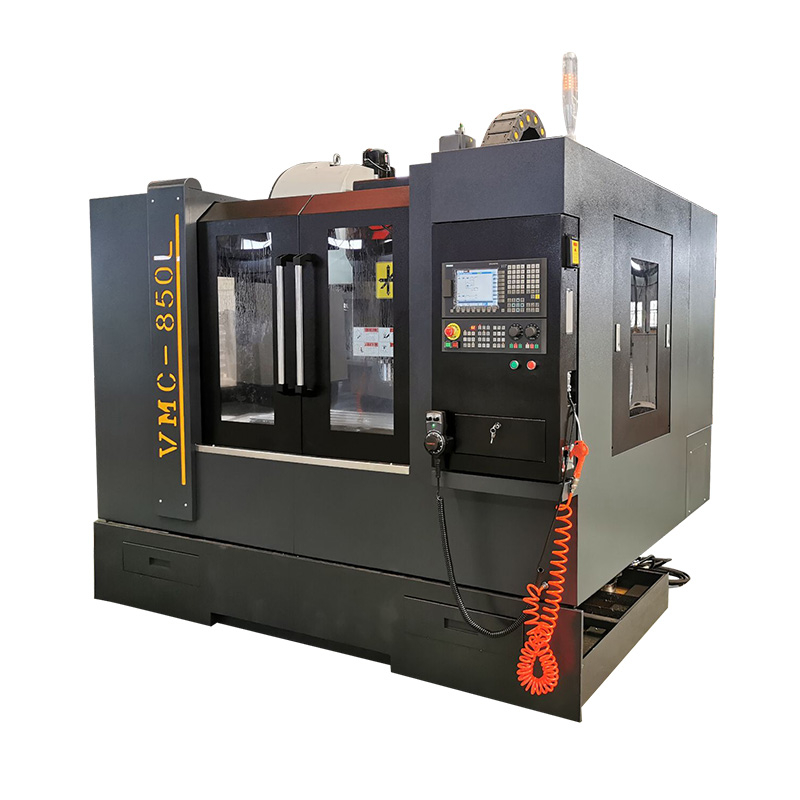

VMC850L CNC Vertical Machining Center with 1000x500mm Working Table

  • VMC850L

  • WMT

  • 8457101000

Availability:
Quantity:

Product Description

VMC850L主图02


Specification VMC850L
Worktable
Worktable size(LxW) 1000x500mm
T-slot (NxWx D) 5x18x100mm
Travel
X/Y/Z axis travel 850/500/600mm
Machine range
Distance from spindle center to column 572mm
Distance from spindle nose to worktable surface 120-720mm
Spindle
Spindle taper BT40
Spindle power 7.5/11kw
Max.spindle speed 8000rpm
Feed(direct drive)
Max.feed speed 12m/min
Rapid feed speed(X/Y/Z) 32/32/30m/min
Ball screw(diameter+lead)
X/Y/Z axis ball screw 4016
Tool magazine
Tool magazine capacity 24T
Max.length of  tool 300mm
Tool change time(T-T) 2.5s
Positioning accuracy
(National standard)

Positioning accuracy(X/Y/Z) ±0.010mm
Re-positioning accuracy(X/Y/Z) ±0.005mm
Machine dimension
LxWxH 2540x2320x2780mm
Machine weight
Max.loading of worktable 500kgs
Machine weight 5200kgs

加工中心细节图

Standard accessories:

Servo motor spindle BT40, 7.5Kw, s=80-8000rpm

Worktable size:500x1000mm

X/Y/Z: 850X500X600mm

Disc type ATC: 24T

X/Y/Z  linear guideway
