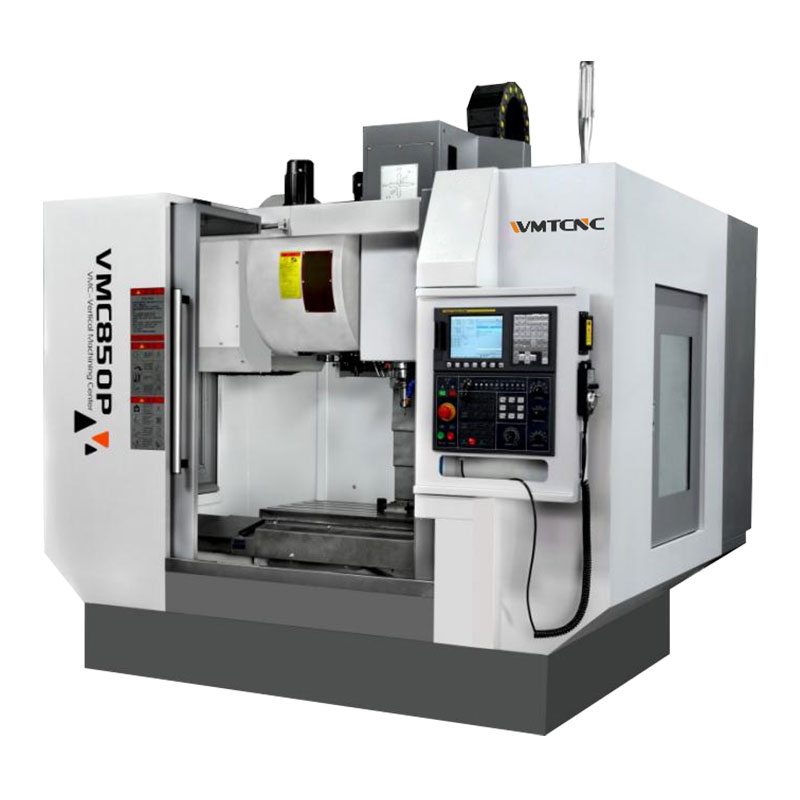

VMC850P CNC Machining Center with 8000rpm Spindle Speed

  • VMC850P
  • WMT
  • 8457101000
Quantity:

Product Description

Features:

  • High-rigidity design of the bed, servo, spindle, etc., enhance the extreme heavy cutting ability.

  • It has good heavy cutting ability in plane milling, boring, drilling, and tapping.

  • One-piece bed, C-shaped structure, Z axis without counterweight.

  • NTN bearing, THK/PMI/HIWIN linear guideway.

  • Taiwan ROYAL/VYUCHENG/KENTURN spindle, standard 8000 rpm, optional 10000 rpm.

  • BT40 spindle taper, 24t disc type tool magazine.

VMC850P VMC Machine (2)

Specification VMC850P
Worktable sizeLxW 500x1000 mm
T-slot (NxWx D) 5x18x100mm
X/Y/Z axis travel 850/500/550mm
Distance from spindle center to column 582mm
Distance from spindle nose to worktable surface 100-650mm
Spindle taper BT40
Spindle power 11/15kw
Max.spindle speed 8000/10000rpm
Max.feed speed 12m/min
Rapid feed speedX/Y/Z) 48/48/32m/min
X/Y/Z axis ball screw 4016
Tool magazine capacity 24t
Tool change time(T-T) 2.5s
Positioning accuracyX/Y/Z) ±0.008mm
Re-positioning accuracyX/Y/Z) ±0.004mm
LxWxH 2460x2355x2860mm
Max.loading of worktable 500kgs
Machine weight 5500kgs

Machine Details

加工中心细节图
