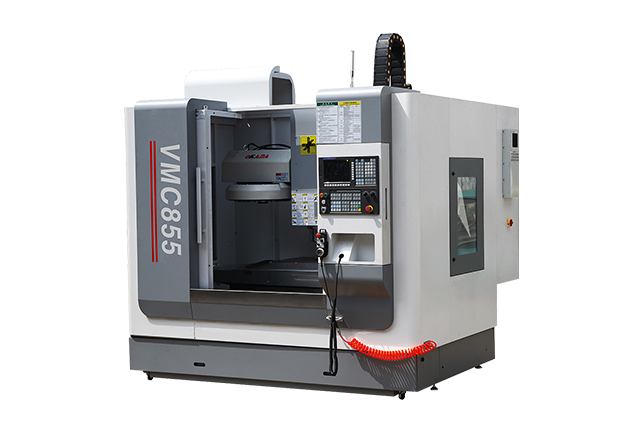

VMC855 New Appearance Vertical Cnc Milling Machining Center

  • VMC855

  • WMT

  • 8457101000

Availability:
Quantity:

Product Description

Features:

  • High-rigidity design of the bed, servo, spindle, etc., enhance the extreme heavy cutting ability.

  • It has good heavy cutting ability in plane milling, boring, drilling, and tapping.

  • One-piece bed, C-shaped structure, Z axis without counterweight.

  • NTN bearing, THK/PMI/HIWIN linear guideway.

  • Taiwan ROYAL/VYUCHENG/KENTURN spindle, standard 8000 rpm, optional 10000 rpm.

  • BT40 spindle taper, 24t disc type tool magazine.

vertical-machining-center-VMC855

Specification
VMC855
Worktable size(LxW)
1000x550mm
T-slot (NxWx D)
5x18x100mm
X/Y/Z axis travel
800/550/550mm
Distance from spindle center to column
595mm
Distance from spindle nose to worktable surface
120-670mm
Spindle taper
BT40
Spindle power
7.5kw
Max.spindle speed
8000rpm
Max.feed speed
10m/min
Rapid feed speed(X/Y/Z)
36/36/32m/min
X/Y/Z axis ball screw
4010/C3
Tool magazine capacity
24T
Positioning accuracy(X/Y/Z)
±0.010mm
Re-positioning accuracy(X/Y/Z)
±0.003mm
Water tank volume
200L
Cooling pump power
120w
Cooling pump flow
50L/min
LxWxH
2750×2300×2300mm
Machine weight
5300Kg
