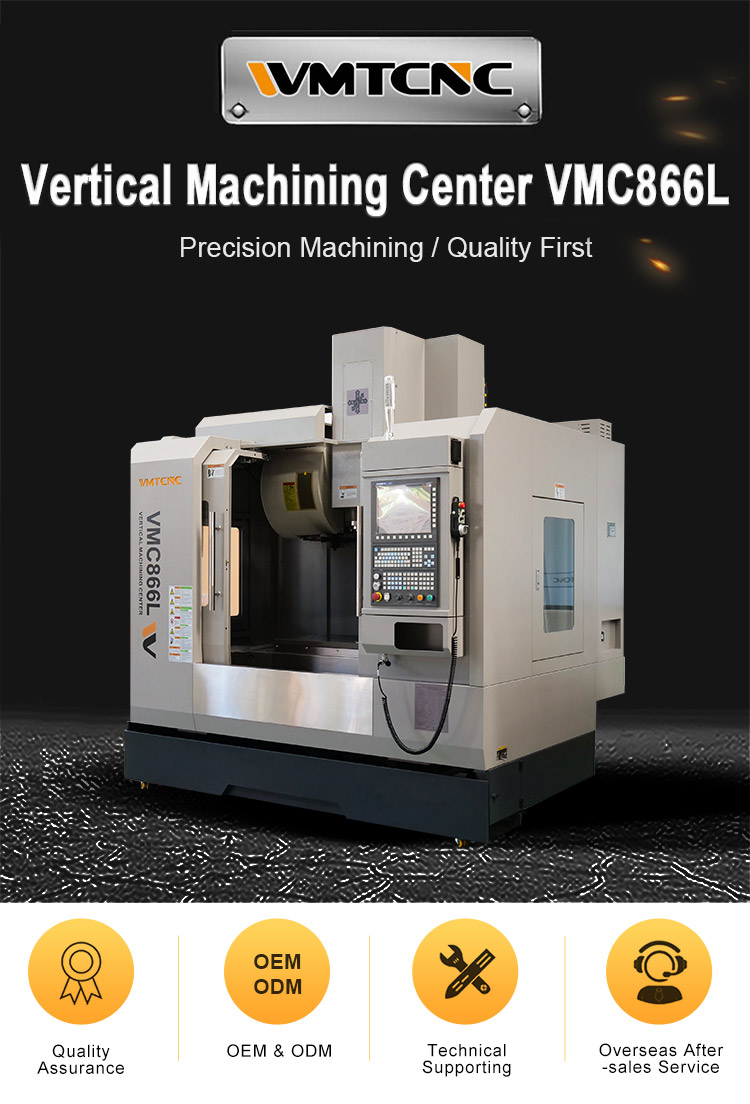

VMC866L
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. The VMC866L features a shoulder-type column design, delivering robust structural integrity and significantly enhanced overall rigidity. The widened column not only increases load-bearing capacity but also effectively reduces vibration and deformation during machining, ensuring high-precision processing of complex components.
2. For guideway configuration, the machine employs a 45° linear guide structure on the X-axis. This design delivers low friction coefficients and high sensitivity, enabling rapid and smooth feed motion. This enhances cutting efficiency and positioning accuracy, making it ideal for high-speed, high-precision machining tasks. Additionally, the linear guide's wear resistance and stability extend the machine's service life while reducing long-term maintenance costs.
| Specification | VMC866L |
| Worktable | |
| Worktable size (L×W) | 1000×600mm |
| T-slots size (N×W×D) | 5-18x90mm |
| Travel | |
| X/Y/Z axis travel | 800/600/600mm |
| Machining range | |
| Distance from spindle center to column | 595mm |
| Distance from spindle nose to worktable surface | 120-670mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 7.5kw/11kw |
| Max. spindle speed | 8000rpm |
| Feed | |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 24/24/20m/min |
| Ball screw (diameter+lead) | |
| X/Y/Z axis ball screw | 4016 |
| Tool magazine | |
| Tool magazine capacity | 24T |
| Max. length of tool | 300mm |
| Tool change time | 1.5s |
| Positioning accuracy (National standard) | |
| Positioning accuracy (X/Y/Z) | ±0.005mm |
| Re-positioning accuracy(X/Y/Z) | ±0.003mm |
| Machine dimension | |
| L×W×H | 2800×2300×2300mm |
| Machine weight | |
| Max. loading of worktable | 600kg |
| Machine weight | 5500kg |
