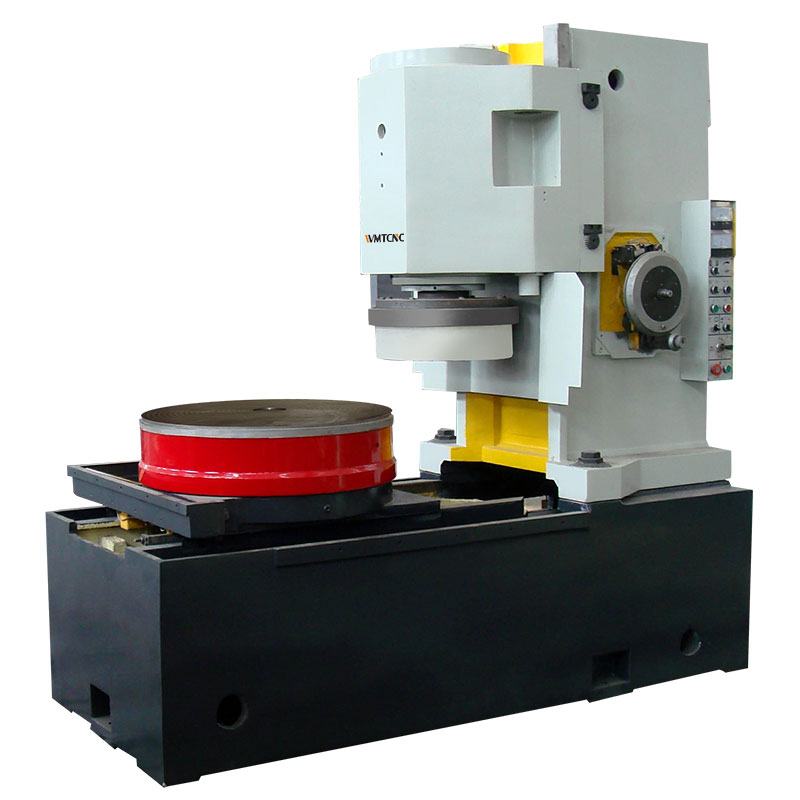

Vertical Frustum of A Cone Surface Grinding Machine M7475B with CE Standrad

  • M7475B
  • WMTCNC
Availability:
Quantity:

Product Description

Features:

  • Use Wheel end-face for grinding, it is a high efficiency, precision, high stability machine tools.

  • The machine has been greatly increased rigidity of machine tools and greatly increased rigidity of grinding head.

  • Column using three-point adjustment, compact structure.

  • Bench is a circular Powerful Electric Magnetic Chuck.

  • Magnetic smooth and adjustable, accuracy, stability.

  • Big power, SCR Charger demagnetization. And is equipped with cooling fluid purification equipment and so on.

  • This grinder is mainly used to rough pieces and general precision grinding of large parts, the surface roughness up to 0.8μ or more parallelism 0.015/1000mm within.

  • Especially suitable for tools, dies, metallurgy, saw blades, automobiles, tractors, bearings and other industries in large parts grinding.

M7475B\

Specification unit M7475B
Table diameter mm Φ780
Work piece grinding the maximum size (Diameter × height) mm Φ780*300 (Subjected to the grinding wheel height)
Table speed r/min 11/22
Worktable moving distance mm 450
Worktable moving speed m/min 3.7
Wheel Size (Sand-watt available) mm 450*380*150
125*85*35
Grinding head main spindle speed r/min 980
Grinding head vertical movement distance mm 470
Grinding head fast movement speed m/min 0.22
Grinding head motor feed speed range mm/min 0.08-1.2
Handwheel per revolution grinding head vertical movement distance mm 0.5
Dial lap grinding head vertical movement distance mm 2.5
Dial Each grid grinding head vertical movement distance mm 0.01
Grinding head motor power KW 25
Grinding head lift motor power KW 0.75
Worktable move motor power KW 0.75
Worktable rotation motor power KW 3
Cooling motor power KW 0.25
Magnetic Separator motor power KW 0.18
Machine Total Power KW 30
Machine weight (Host) T 6
