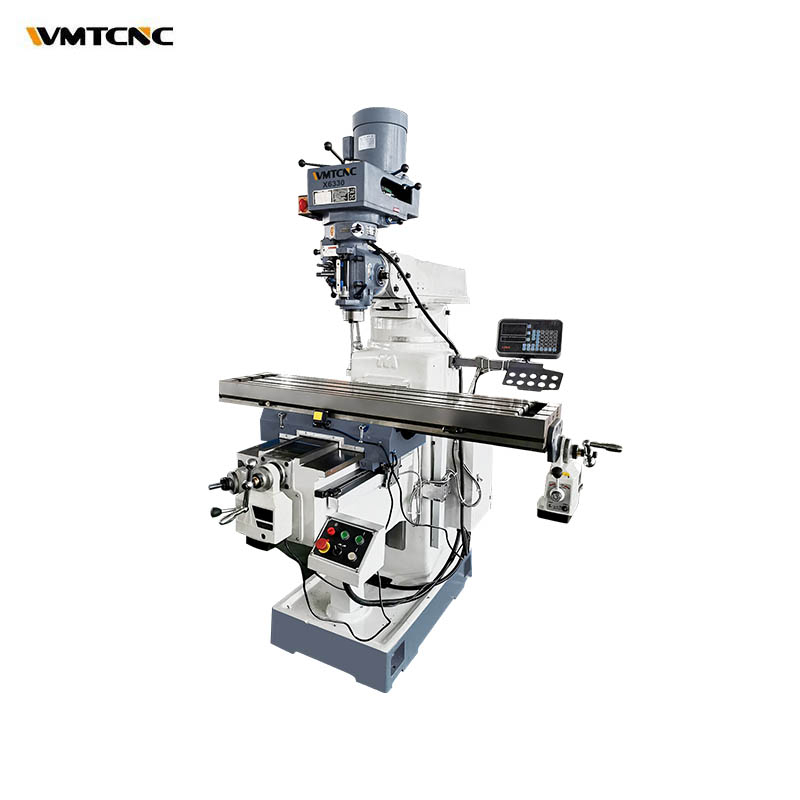

WMT Heavy Duty Turret Milling Machine X6330 Standard 5h Turret Milling Machine

  • X6330

  • WMTCNC

  • 84592900

Availability:
Quantity:

Product Description

Main Features:

1. We're professional X6330 small turret milling machine suppliers in China, specialized in providing high quality products with low price.
2. Universal milling machine having a table fitted with all motions and a dividing head with change gears so that it can perform any type of milling operation.
3. Rectangular guideway on Y and Z axis makes the machine stable and rigid.
4. The guideway on saddle is lined with TF wearable material.
5. Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.
6. DRO is optional.
7. It is with Taiwan milling turret head.
8. Rectangular guideway on Y and Z axis makes the machine stable and rigid. 9. The guideway on saddle is lined with TF wearable material. 10. Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.



X6330-wmt



Specificaiton X6330(5H)
Table size(L×W) 1370×305mm
T-slotes (NxWxD) 3/16/85mm
Table travel (X/Y/Z) 850×400×450mm
Distance between spindle nose and table surface 0-460mm
Spindle speed 66-4540rpm
Main motor power 5HP
Spindle taper NT40
Travel of spindle sleeve 127mm
Ram travel 500mm
Feed of spindle sleeve 0.03/0.08/0.15inch/r
Milling head rotation swivel:45° tilt:90°
Overall size (L×W×H) 1750×1650×2150mm
N.w 1350kg
