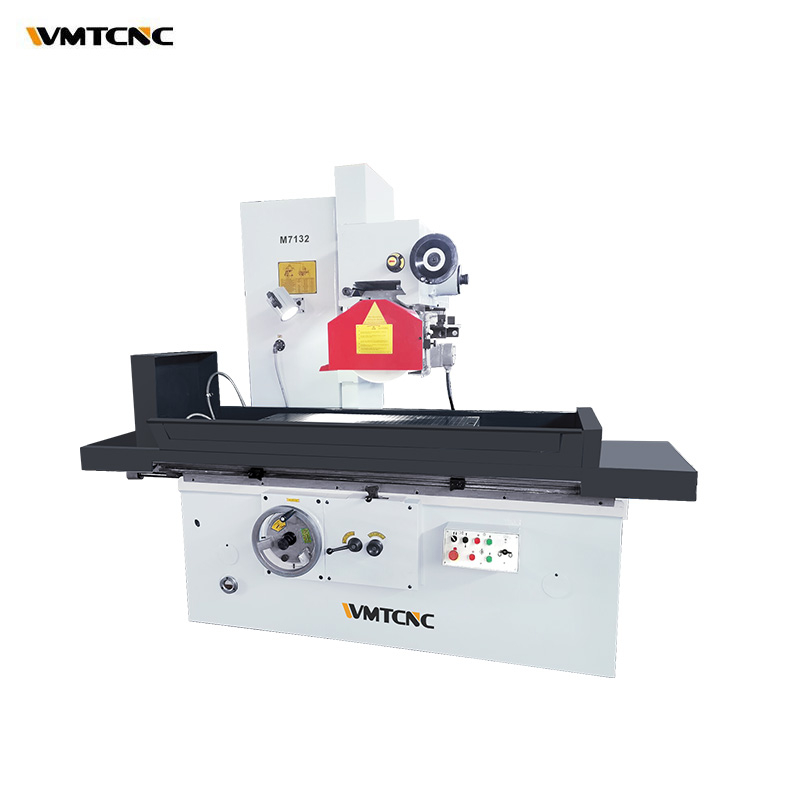

1. The machine is reasonable in structure, good rigidity, beautifulappearance, convenient operation.
2. Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
3. Throttle control part and unloading function, can realize the stationstart and stop.
4. Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
|Size of worktable (LxWxH)||1000x300x400 mm||1000x320x400 mm|
|Max.Longitudinal movement of worktable||1100 mm||1100 mm|
|Max. Distance from the spindle centerline to the worktable surface||580 mm||580 mm|
|Max.Cross movement grinding head||350 mm||370 mm|
|Vertical movement of the |
grinding head by handwheel
|Per graduation||0.01 mm||0.01 mm|
|Per revolution||1 mm||1 mm|
|Rapid lifting motor||Power||0.37 Kw||0.37 Kw|
|Speed||1440 r/min||1440 r/min|
|Abrasive wheel dim (D x d x w)||∅ 350x40x127 mm||∅ 350x40x127 mm|
|Speed of ginding wheel||1440 r/min||1440 r/min|
|Total power of motor||11 Kw||11 Kw|
|Power of spindle motor||7.5 Kw||7.5 Kw|
|Power of oil pump motor||3 Kw||3 Kw|
|Parallelism of Work piece Surface to Base level||300: 0.008 mm||300: 0.008 mm|
|Surface roughness||Ra:0.63 μm||Ra:0.63 μm|
|N/G weight||3680/4000 Kgs||3980/4200 Kgs|
|Package (LxWxH)||2800x1750x2350 mm||2800x1750x2350 mm|
