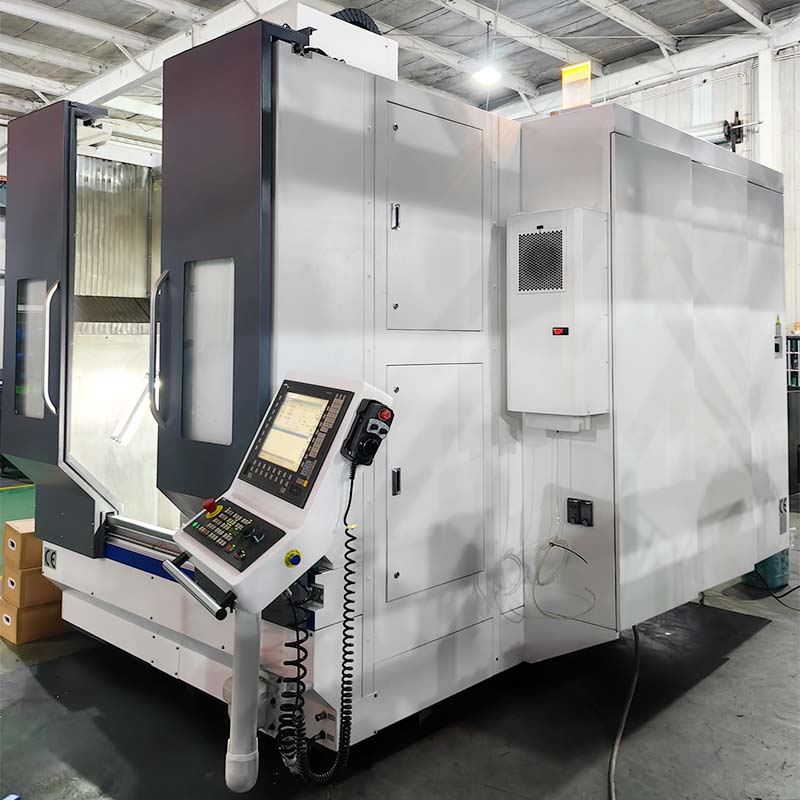

WMT-V63
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Feature:

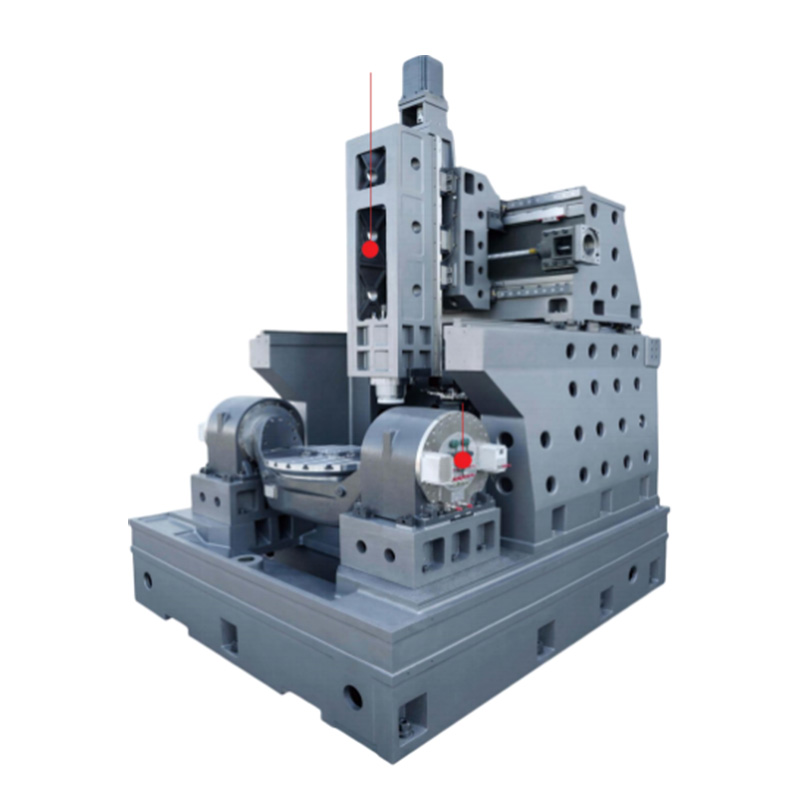

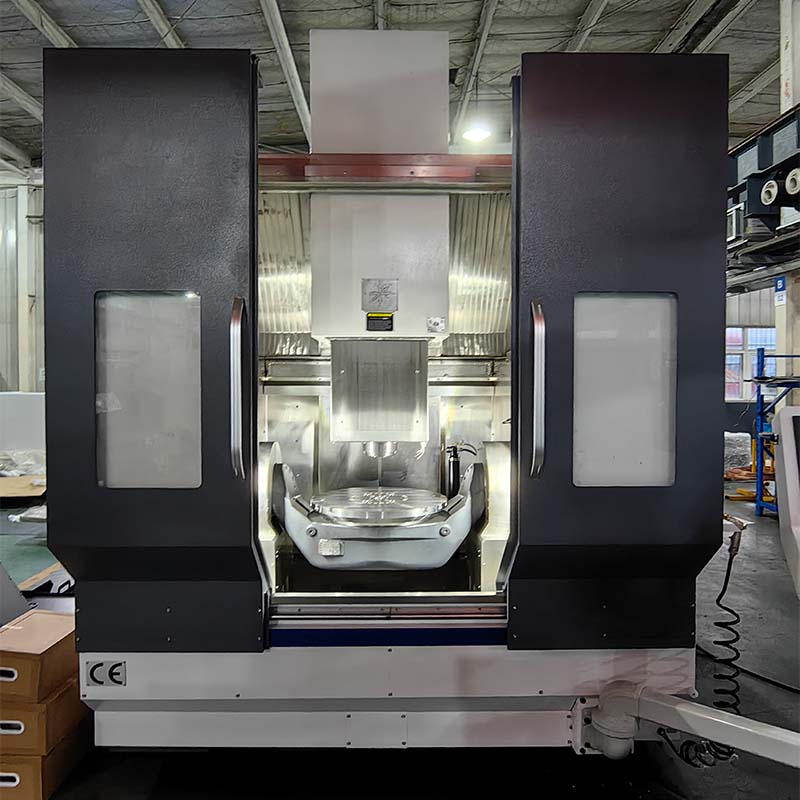

The WMT-V63 5-Axis Machining Center features a moving gantry (bridge-type) design with a moving crossbeam and fixed columns and worktable. The crossbeam moves along the Y axis, the saddle along the X axis on the crossbeam, and the spindle along the Z-axis on the saddle. Equipped with a swiveling A/C rotary table, it enables 5-axis simultaneous machining. One-time clamping can finish multi-sided part machining, reducing clampings effectively. It's ideal for complex spatial surface machining in industries like new energy vehicles, molds, aerospace, and medical devices.

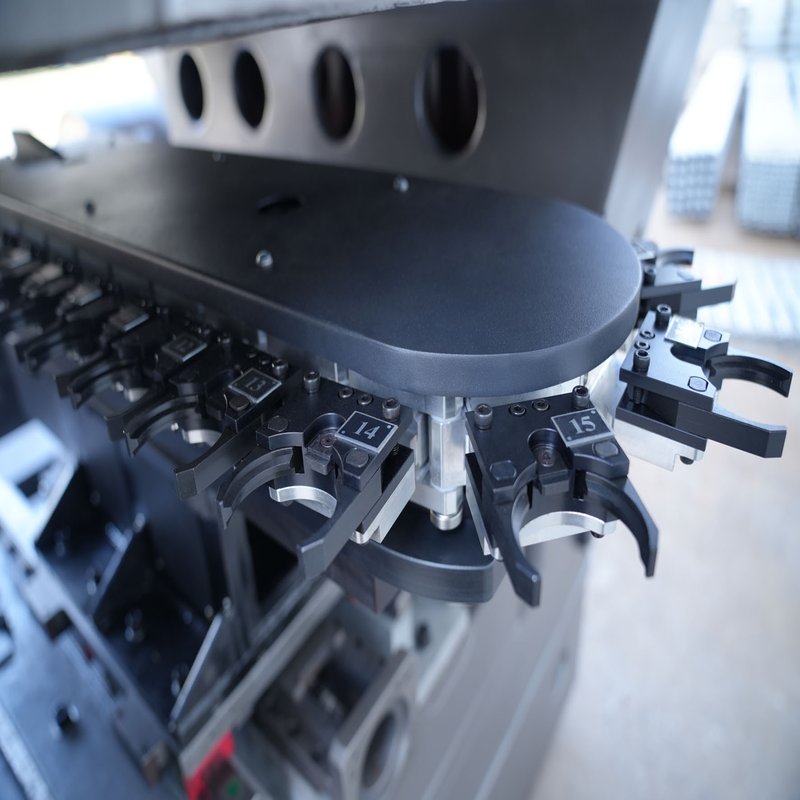

| Specification | Unit | WMT-V63 5 AXIS |
| Machine Capacity | ||
| X/Y/Z-axis travel | mm | 800/800/550 |
| A axis rotation range | mm | ± 115 |
| C axis rotation range | mm | 360 |
| Distance from spindle nose to work table | mm | 120-670 |
| X/Y/Z-axis rapid traverse speed | m/ min | 48 |
| A/C axes rapid rotational speed | mm/ min | 60/100 |
| Structure | rpm | Bridge Type (A-axis Dual Drive) |
| Swivel Table | ||
| Table size | mm | φ630 |
| Load capacity of rotary table | kg | 850 |
| T-slot | 7-14 × 80 ° | |
| Accuracy | ||
| Positioning accuracy X/Y/Z | mm | 0.006/0.006/0.006 |
| Repeatability accuracy X/Y/Z | mm | 0.004/0.004/0.004 |
| Positioning accuracy A/C | sec | ± 8/± 8 |
| Repeatability accuracy A/C | sec | ±4/±4 |
| Servo Motor | ||
| B axis motor torque | sec | 1290/2400 × 2 |
| C axis motor torque | Nm | 600/1100 |
| Spindle | ||
| Power of electric spindle | kW | 30 |
| Torque of spindle | N. m S 1/S2 | 72/85 |
| Max.spindle speed | r/ min | 18000 |
| Spindle taper hole | / | HSK A63 |
| Tool Changer | ||
| Type | / | Chain Type |
| Num.of tool positions | nos | 32,*40,*60,*90 |
| Max.tool weight | kg | 8 |
| Max.tool length | mm | 300 |
| Max.tool diameter( Full/beside empty) | mm | φ75/φ120 |
| Other | ||
| Compressed air | MPa | 0.6-0.8 |
| Power capacity | kW | 68 |
| Dimension ( L ×W × H) | mm | 2728 × 3760 × 3726 |
| Weight | kg | 16500 |
