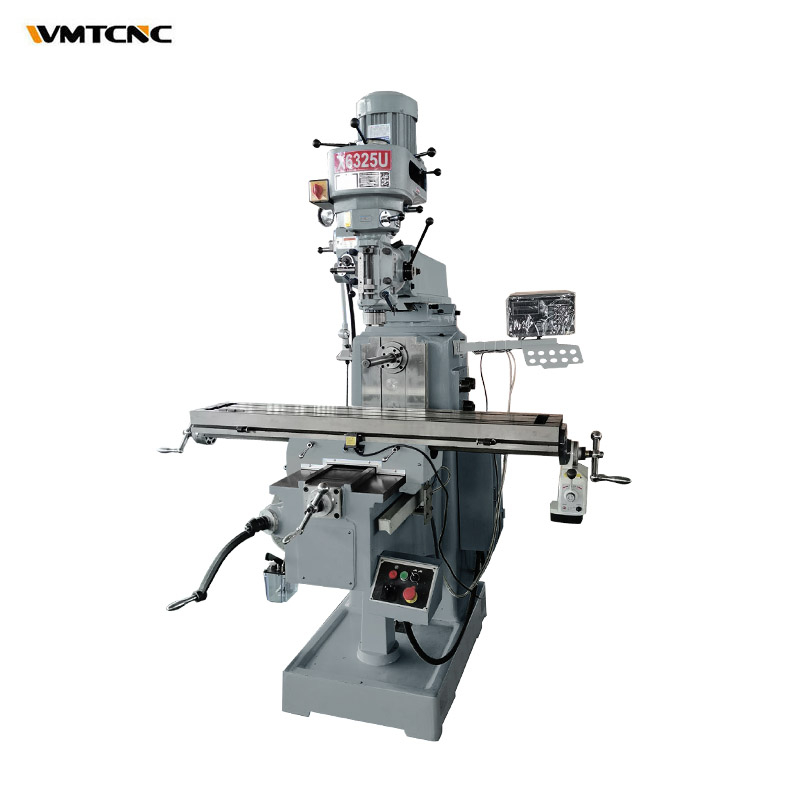

X6325U
WMTCNC
84592900
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Rectangular guideway on Y and Z axis makes the machine stable and rigid.
2. DRO is optional.
3. Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.
| Specificaiton | X6325U |
| Table size(L×W) | 1270×254mm |
| T-slotes (N/W/D) | 3/16/65mm |
| Table travel (X/Y/Z) | 800×400×450mm |
| Spindle taper:vertical/horizontal | R8/NT30(V), NT40(H) |
| Distance between horizontal nose and table surface | 0-400mm |
| Distance between spindle axis and ram surface | 230mm |
| Vertical spindle variable speed | 80-4200rpm(variable) |
| Vertical spindle step speed | 66-4540rpm(16 steps) |
| Horizontal spindle step speed | 40-1300rpm(12 steps) |
| Ram travel | 400mm |
| Main motor power(V/H) | 2.25kw, optional 3.75(vertical) |
| 3kw(horizontal) | |
| Overall size (L×W×H) | 1650×1680×2450mm |
| N.w | 1400kg |
