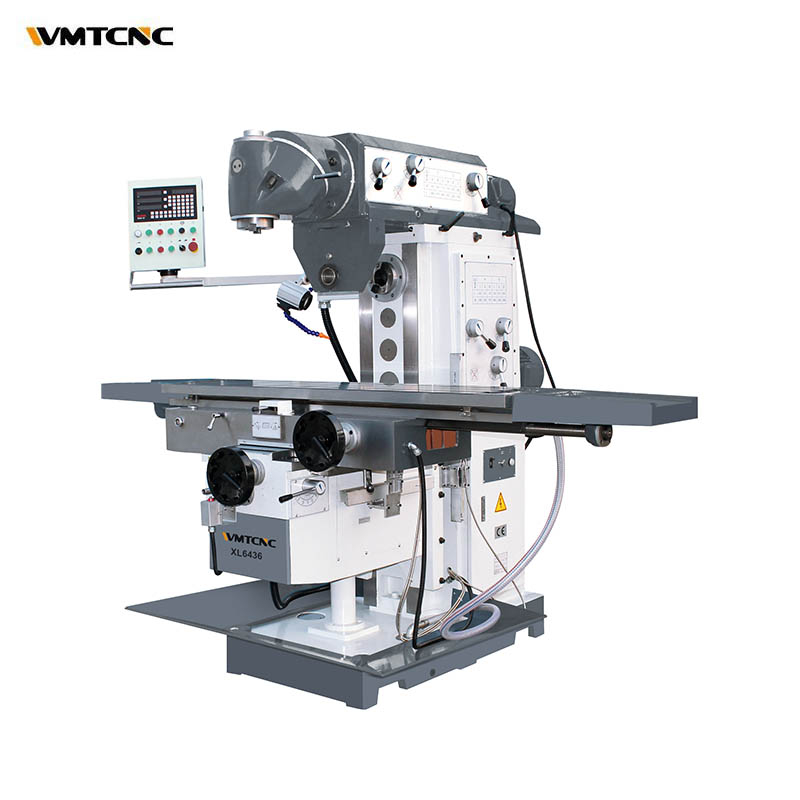

XL6436
WMTCNC
84592900
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
2. Quiet, precision-made headstock gears with hardened and ground gears.
3. Universal milling head can realize fast conversion between vertical milling and horizontal milling.
4. By combining both swivel levels, almost any spatial angle can be set.
5. One powerful servo motor allows infinite adjustment of the feed on all 3 axes.
6. Control panel swings out to either side and features an integrated position indicator.
7. Coolant system and chip tray are Included.
| Specificaiton | XL6436 | XL6436C | XL6436CL |
| Table size(L×W) | 1325×360mm | 1325×360mm | 1600×360mm |
| Table travel (X/Y/Z) | 750×320×450mm | 1100x320x450mm | 1300/320/450mm |
| Table feed (X/Y/Z) | 30-750/20-500/15-375rpm 30~750/20~500/15~375rpm | ||
| Swivel Table | ±45°Optional | ||
| Spindle taper | 7:24 ISO50(H/V) | ||
| Max. loading capacity | 350kg | ||
| T-slotes (NxWxD) | 3-18/80mm | ||
| Ram travel | 600mm | ||
| Distance between spindle nose and table surface | 196-646mm | 190-590mm | 190-590mm |
| Distance between horizontal nose and table surface | 20-470mm | 20-420mm | 20-420mm |
| Distance between horizontal nose and arm surface | 200mm | ||
| Spindle speed(12 steps) | 60-1750rpm(V) 60-1800rpm(H) 12 steps 60-1750rpm (V) 12 steps 60-1800rpm (H) | ||
| Main motor power | 4kw(V),5.5kw(H) | ||
| 3 phase AC feeding servo motor torque | 10N.m | ||
| Overall size | 1800×2100×2000mm | 2320×2100×2000mm | 2520×2100×2000mm |
| N.w | 2650kg | 2750kg | 2850kg |
