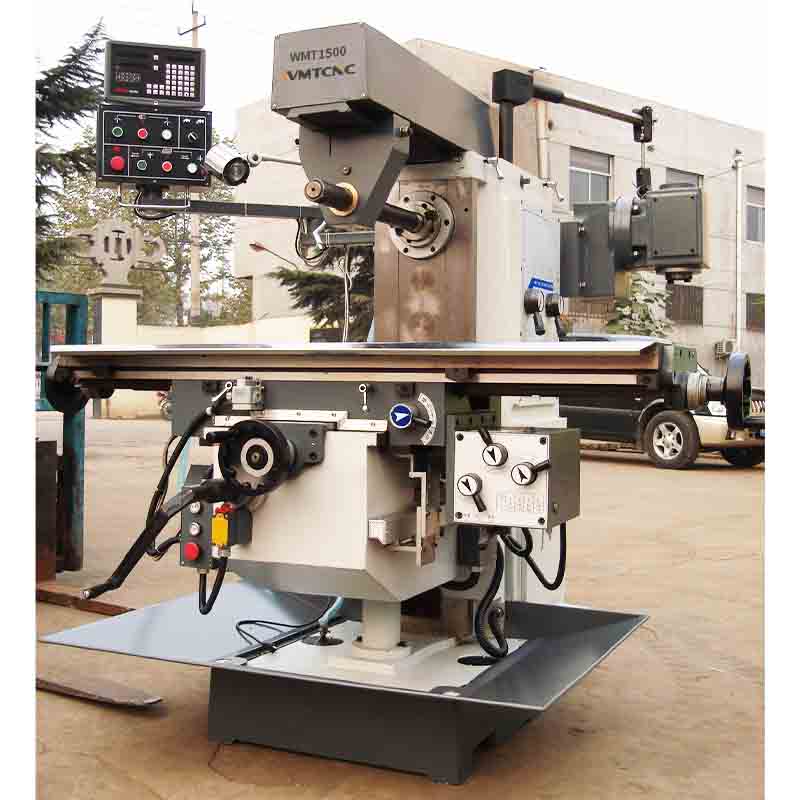

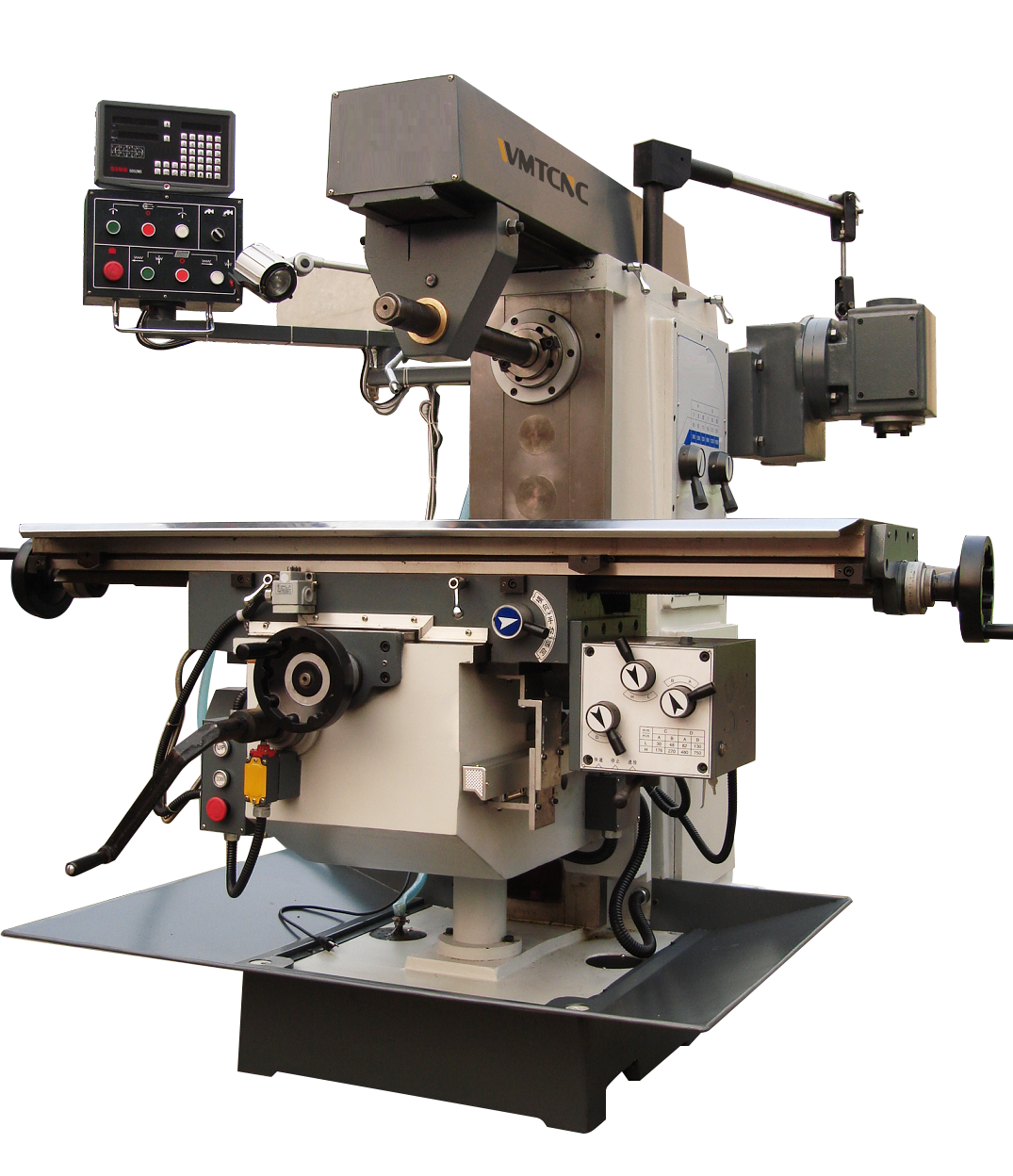

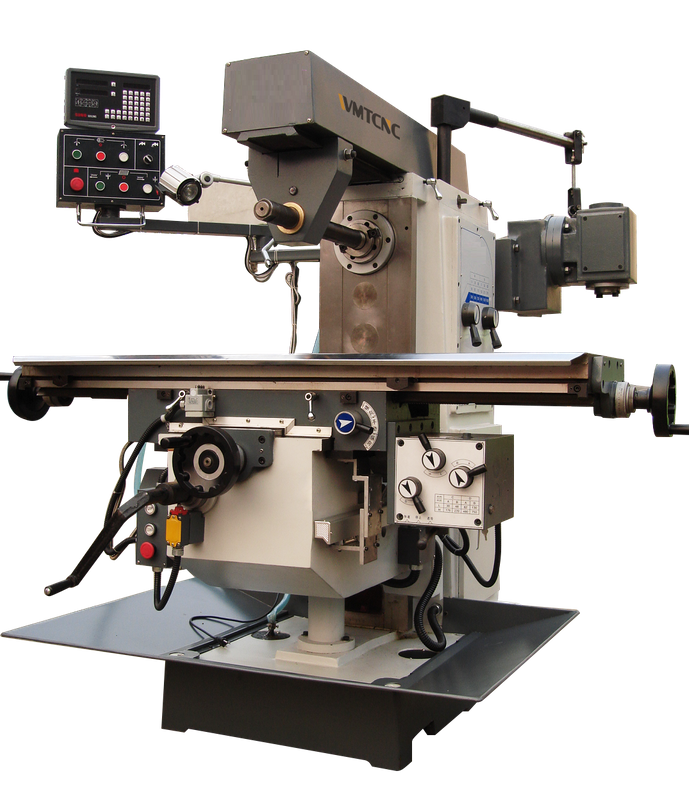

WMT1500
WMTCNC
| Quantity: | |
|---|---|
Product Description
| Specification | WMT1500 |
| Spindle taper | ISO40(V)ISO50(H) |
| Distance between spindle and table surface | 0-400mm |
| Rabge of spindle speed | (12steps)60-1800(r.p.m) |
| Vertical milling head turning around | 45 degrees |
| Table size | 1500x360mm |
| Table travel(horizontal/cross/vertical) | 850/320/400mm |
| Range of longitudinal travel | (8steps)22-555mm/min(max1080) |
| Range of cross travel | (8steps)22-555mm/min(max1080) |
| Range of vertical travel | 590mm/min |
| T-slot NO./width/distance of table | 3/18/80mm |
| Main motor | 5.5kw |
| Motor for rapid devtce of table | 750w |
| Motor for vertical devtce of table | 1100w |
| Motor of cooling pumps | 90w |
| Speed of cooling pumps | 25L/min |
| Max weight of workpiece | 400kg |
| Overall dimension | 2050x2000x2250mm |
| N.W/C.W | 2200/2300kg |
