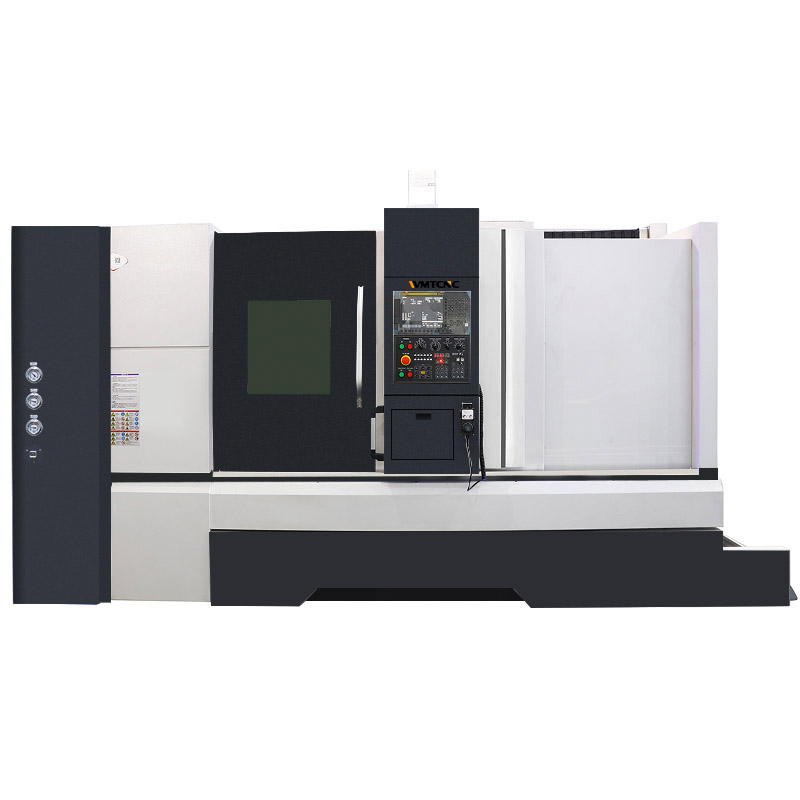

WMTCNC 3-Axis Turning Centers TX700 for machining various workpieces

  • TX700
  • WMTCNC
Availability:
Quantity:

Product Description

Features:

1. WMTCNC 3-Axis Turning Centers TX700 is a turning center able to flexibly handle various workpieces.

2. The 12-station Power Turret enables the operator to machine simple to complex workpieces with one easy setup operation.

3. These models also feature a Direct Drive Spindle( Integrated Motor) that reaches high speed while maintaining strict rigidity and exceptional C-Axis accuracy.

4. The models can satisfy a wide range of users from beginners of shop production to group corporation with experienced technicians.

5. WMTCNC Turning center have a heavy-duty cast base with "True Align"Slant bed design.

6. The machine bed, head stock, turret and tailstock are aligned on the same plane.

7. This Unique design feature reduces heat build-up and resulting thermal expansion.

8. Cylindrical Roller type guideways and large diameter high precision ballscrew provides improved rigidity and higher accuracy.

9. With a very low coefficient of friction, they consume less power and do not require adjustment.

10. The tailstock body is positioned by hydraulic traction bar on roller linear guideway.

11. Tremendous reduction in set up, compared to hydraulic sleeve type manual tailstock.


Specification

SpecificationUnitTX700
CapacityChuck sizeinch15
Max. swing dia. over bedmm1300
Max. length of workpiecemmØ650
Max. swing dia. over slidemmØ500
SpindleSpindle boremmØ105
Max. dia. of through-holemmØ91
Spindle nosetypeA2-8
Spindle speedrpm1800
Main motor powerkWBelt:22/18.5
AxisX axis travelmm280
Z axis travelmm1300
X/Z rapid traversem/min15/20
TurretNo. of tool stationspcs12
Tool shank size
BMT65
Max. speed of driving toolrpm4000,*5000
TailstockType of tailstock
SST-LM,*SPT
Taper of tailstock quill
MT5
Travel of tailstockmm100-1300
OthersPower capacitykVA45
Overall dimension (LxWxH)mm4550X2270X2550
Weight (about)kg10500
