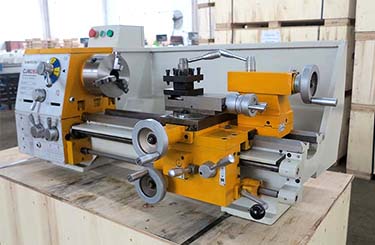

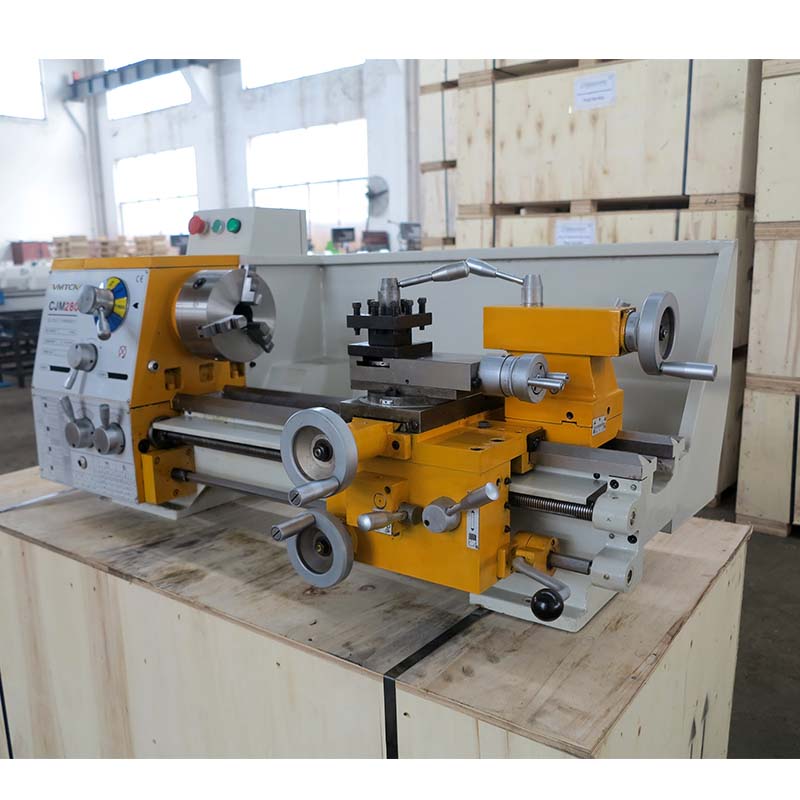

CJM280
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Suitable for turning internal and external cylindrical surfaces, end faces, tapered surfaces and metric and imperial threads, etc.
2. Widely used at home and abroad in small and medium-sized enterprises, research institutes,individual industries and repair industries.
3. With the corresponding function modules, other special cutting processes can be achieved.
| Specifiction | CJM280 |
| Max. swing over bed | 280mm |
| Max. length of workpiece | 500/750mm |
| Max. swing over cross slide | 165mm |
| Max. cross slide travel | 185mm |
| Max. longitudinal travel over tool post | 75mm |
| Spindle bore | 38mm |
| Taper of hole in spindle | MT5 |
| Spindle speed range | 8step:90-1800r/min |
| Mertric thread kinds | 18 |
| Mertric pitches range | 0.2-3.5mm |
| Inch thread kinds | 34 |
| Inch pitches range | 4 1/2-48T.P.I |
| Module threads kinds | 24 |
| Module threads range | 16-120D.P |
| Longitudinal feed range | 0.05-0.35mm/r |
| Cross feed range | 0.025-0.18mm/r |
| Tailstock quill travel | 75mm |
| Tailstock quill taper | MT3 |
| Motor power | 750w |
| N.W/G. W | 260/300kg,270/320kg |
| Overall dimensions(LxWxH) | 1170x650x650mm,1420x650x650mm |
| Packing size(without stands): (LxWxH) | 1310x770x750mm,1530x770x750mm |
