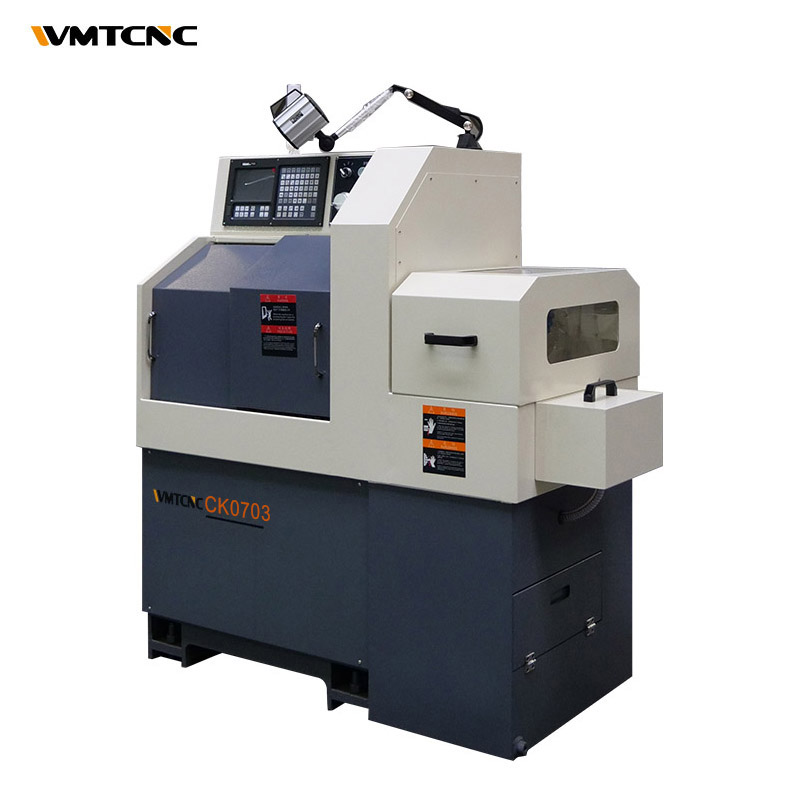

WMTCNC Cnc swiss Lathe CK0703 Economical Cnc swiss Lathe Machine Automatic

  • CK0703

  • WMTCNC

Availability:
Quantity:

Product Description

Main Features:

1. Using the counter spindle and the back tool post, front and back processing can be performed at the same time.

2. Equipped with 3-axis lateral power head, lateral rigid tapping, front rigid tapping, back rigid tapping.
3. Equipped with no guide sleeve device, which is most suitable for high precision machining of short workpieces.
4. Adjust the chuck with the clamping force of the main shaft and the back shaft, which can easily clamp fine and precise parts Fixed guide bushes and linked guide bushes have better benefits.
5.The main shaft oil-cooled electric spindle has no dead angle cooling at high speed, and it has more uniform heat dissipation and stronger performance than ordinary air-cooled electric spindle.
6. This machine adopts absolute operation, no need to return to the original point on and off, saving time and labor and labor. Uninterrupted power supply for 24 hours, high efficiency and labor saving.

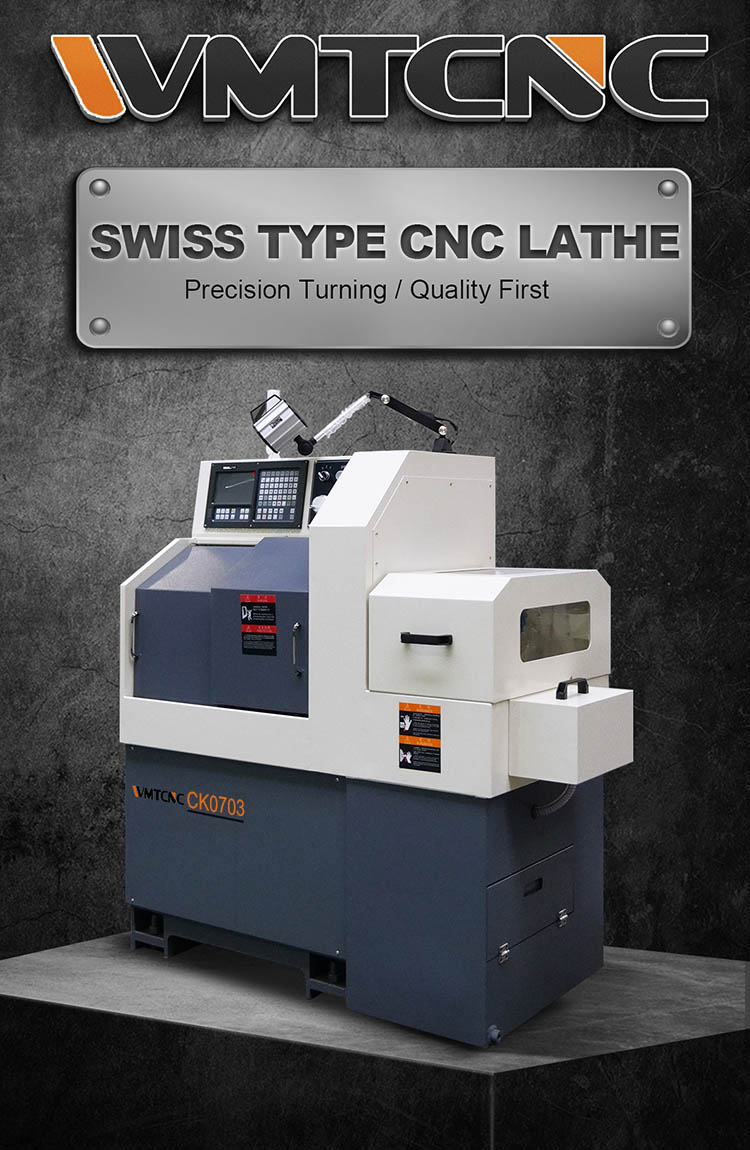

CK1107详情_01

Specification CK0703
Capacity
Max. Bar Dia. Φ7mm
Max length of workpiece 150mm
Slide guide mode Linear Guide Rail
Spindle
Spindlle bore Ф8
Drilling Spindle Size ER8/12mm
CNC controller model YZ150
Spindle speed 0-5000r/min
The height of spindle center from ground 890mm
Axis
X axis travel 38mm
Y axis travel 80mm
Z axis travel 150mm
X/Y/Z Axis Fast Feed Rate 15/15/15m/min
Cutting speed 1-4000mm/min
Tool post
Gang tool 12 Nos.
Front drilling 3 Nos.
Turning tool 8 Nos.
Tool size 8x8mm
Motor
Min. setting unit 0.001mm
X Axis Pulse Equivalent 0.0005mm
Y Axis Pulse Equivalent 0.001mm
Z Axis Pulse Equivalent 0.001mm
Max. Programming size ±9999.999

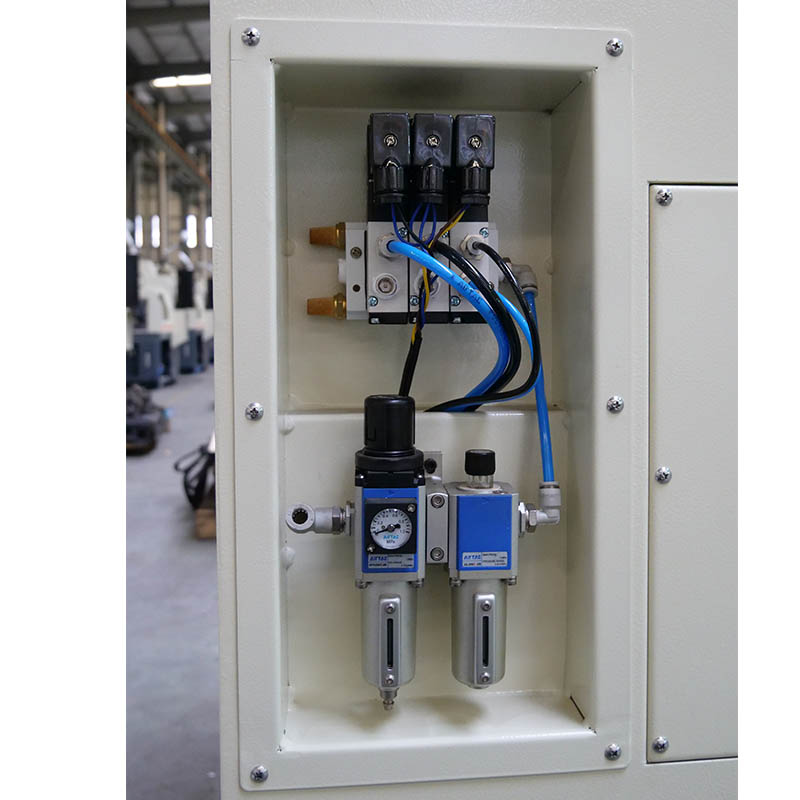

Input Pressure of Compressed Air 0.4--0.6Mpa
Spindle power 2kw
X/Y/Z Axis Servo Motor Power 0.4/0.4/0.4kw
Cutting motor power 0.12kw
Total input power 4kw
Machine Dimensions
Overal dimension (L×W×H) 1415x700x1680mm
Weight 600kg
