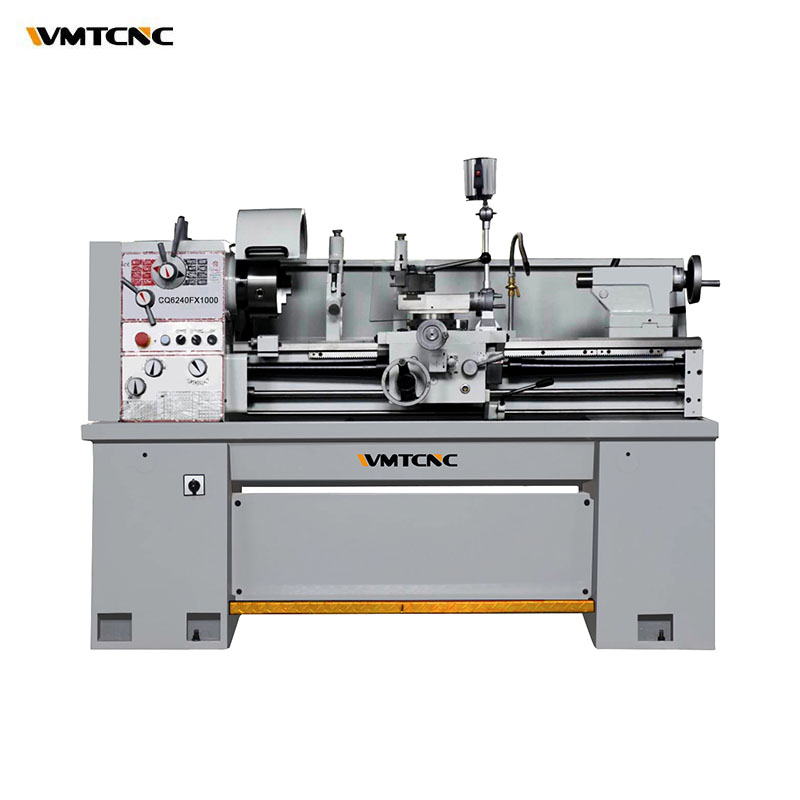

CQ6240F
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Head stock gears are made of high quality steel ground and hardened.

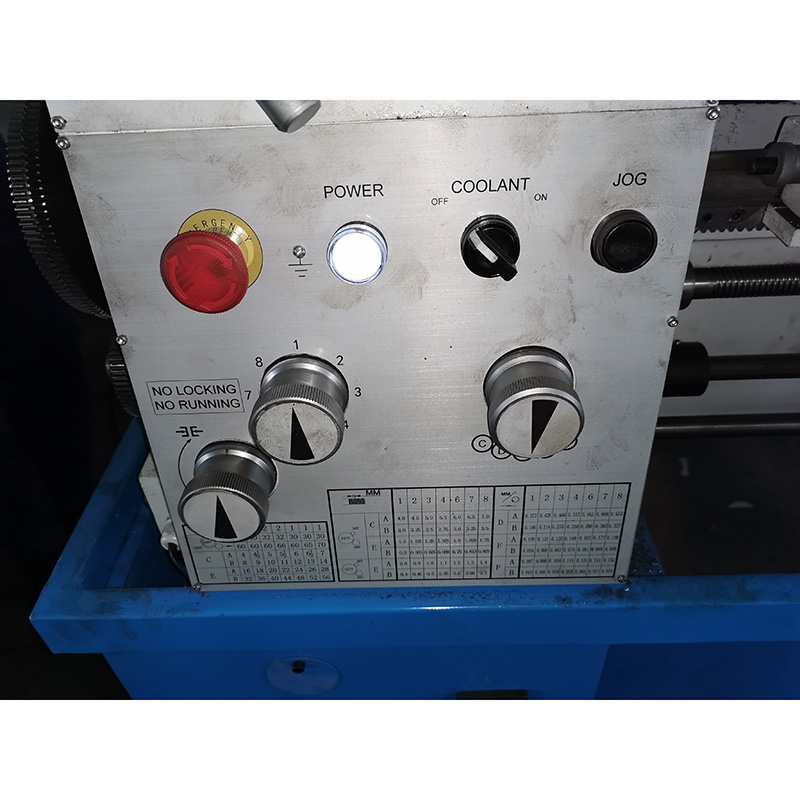

4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
| Specification | CQ6240F×1000 |
| Max. swing over bed | 400mm |
| Max. swing over cross slide | 264mm |
| Max. swing over gap | 550mm |
| Distance between centers | 1000mm |
| Width of bed | 206mm |
| Spindle bore and nose | 51mm/D1-5 |
| Spindle taper | MT6 |
| Speed number | 16 steps |
| Cross slide travel | 150mm |

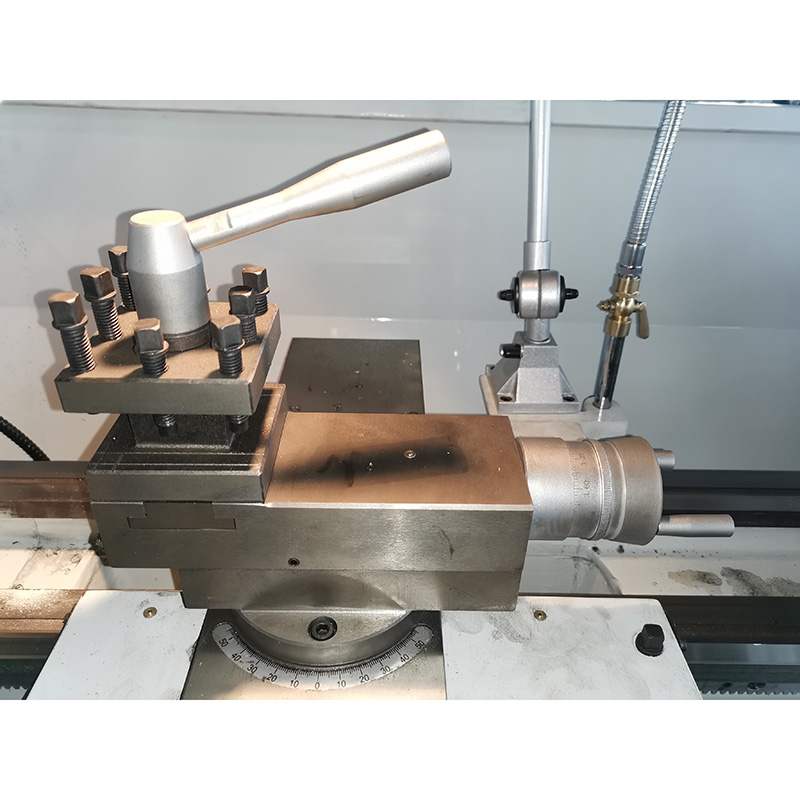

| Compound rest travel | 90mm |
| Spindle speed range | 45-1800rpm |
| Max. section of tool | 16×16mm |
| Threads inch pitches | 4-56TPI/28 kinds(Metric lathe) 4-112TPI/40 kinds(Inch lathe) |
| Threads metric pitches | 0.4-7mm/42 kinds(Metric lathe) 0.45-7.5mm/22 kinds(Inch lathe) |
| Longitudinal feeds | 0.043-0.653mm/rev(Metric lathe) 0012-0.0294in/rev(Inch lathe) |
| Cross feeds range | N/A |

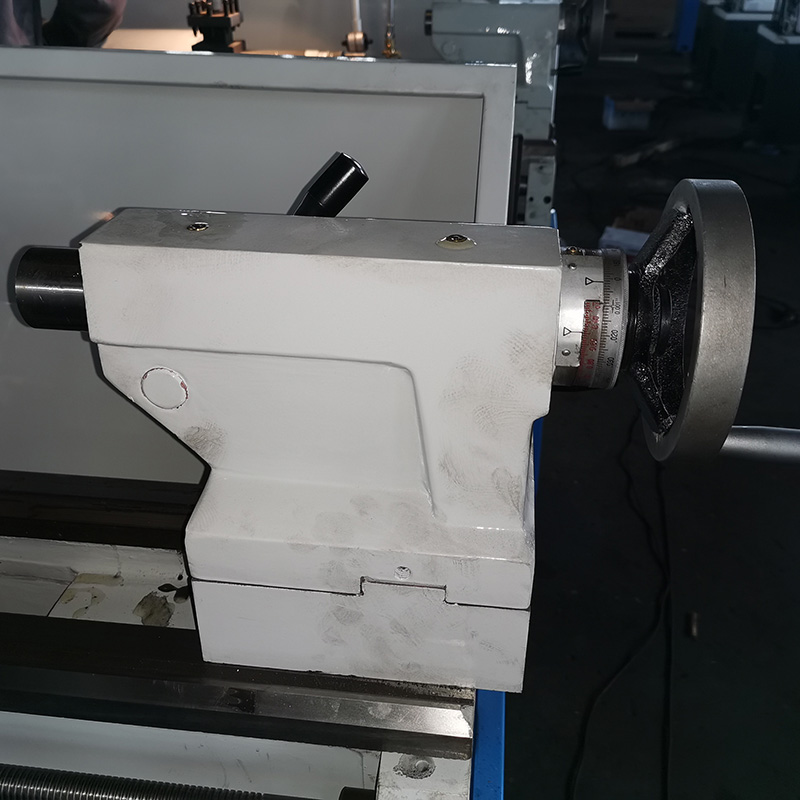

| Tailstock quill taper and travel | MT4/100mm |
| Tailstock quill diameter | 45mm |
| Main motor power | 1.5/2.4kw |
| Coolant pump power | 40w |
| Packing size | 1950×750×1500mm |
| N.w/G.w | 700/800kg |
