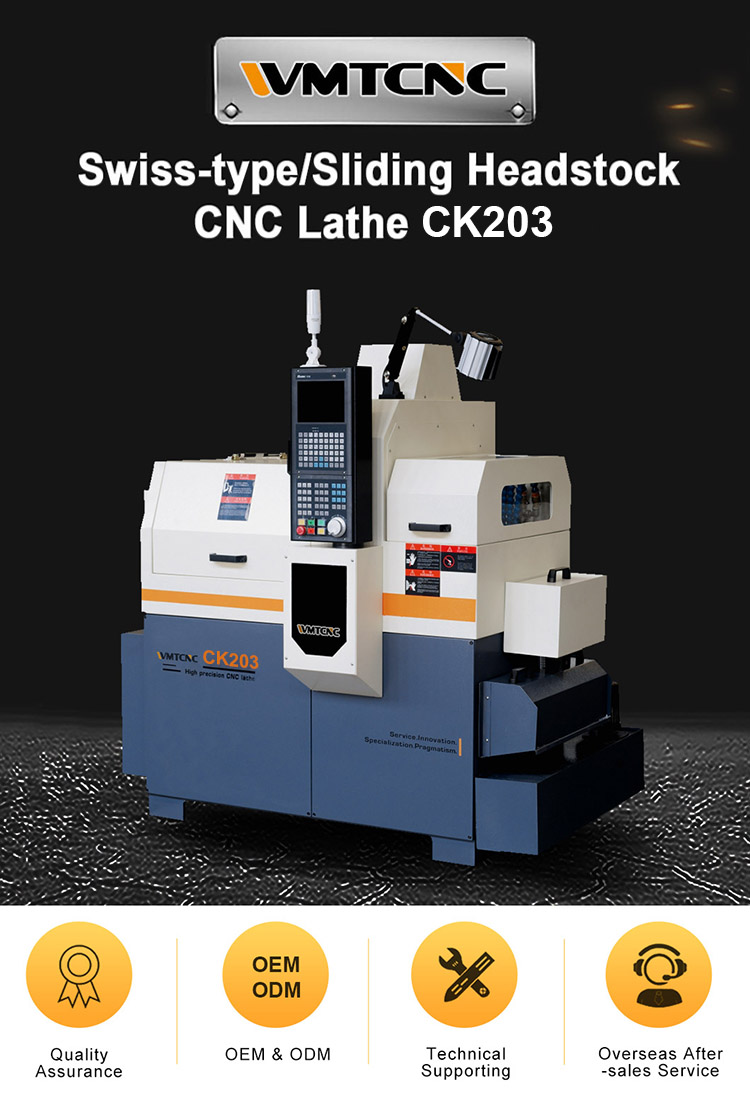

CK203
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. The number of tools is large, and the tool exchange is fast.
2. It can process all kinds of ultra-slender parts.
3. The power head meets the needs of turning and milling compound processing.
4. Reasonable layout, compact appearance and less floor space.
| Specification | CK203 |
| Capacity | |
| Max. Bar Dia. | Φ20mm |
| Max length of workpiece | N/A |
| Slide guide mode | Linear Guide Rail |
| Spindle | |
| Spindlle bore | Φ21mm |
| Drilling Spindle Size | ER11/20mm |
| CNC controller model | YZ180 |
| Spindle speed | 0-6000r/min |
| The height of spindle center from ground | 980mm |
| Axis | |
| X axis travel | 80mm |
| Y axis travel | 150mm |
| Z axis travel | 330mm |
| X/Y/Z Axis Fast Feed Rate | 20m/min |
| Cutting speed | 1-4000mm/min |

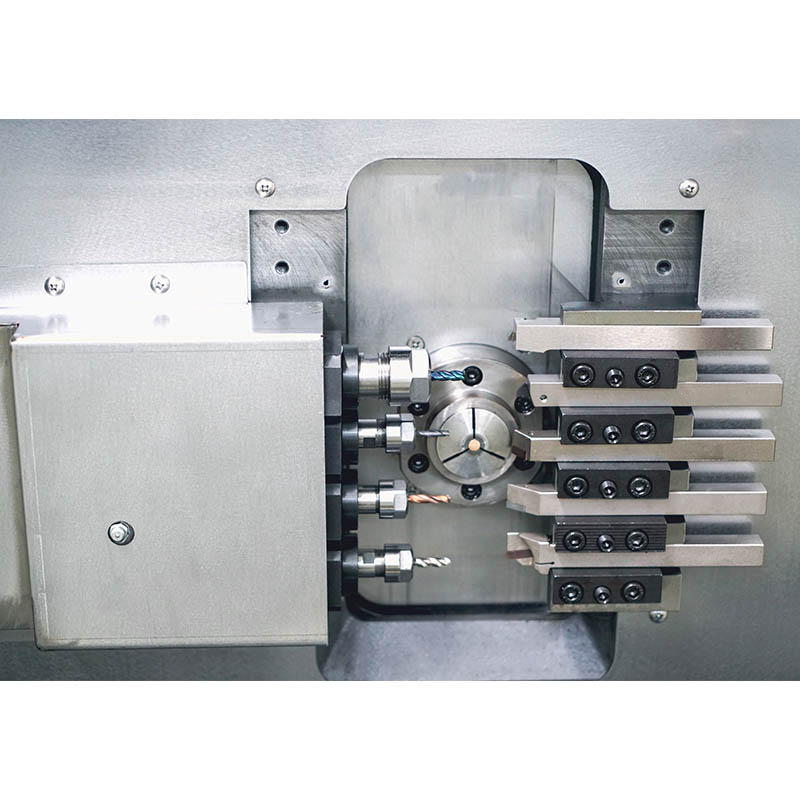

| Tool post | |
| Gang tool | 14 Nos. |
| Front drilling | 4 Nos. |
| Turning tool | 10 Nos. |
| Tool size | 12x12mm |
| Motor | |
| Min. setting unit | 0.001mm |
| X Axis Pulse Equivalent | 0.0005mm |
| Y Axis Pulse Equivalent | 0.001mm |
| Z Axis Pulse Equivalent | 0.001mm |
| Max. Programming size | ±9999.999 |
| Input Pressure of Compressed Air | 0.4--0.6Mpa |
| Spindle power | 2.2kw |

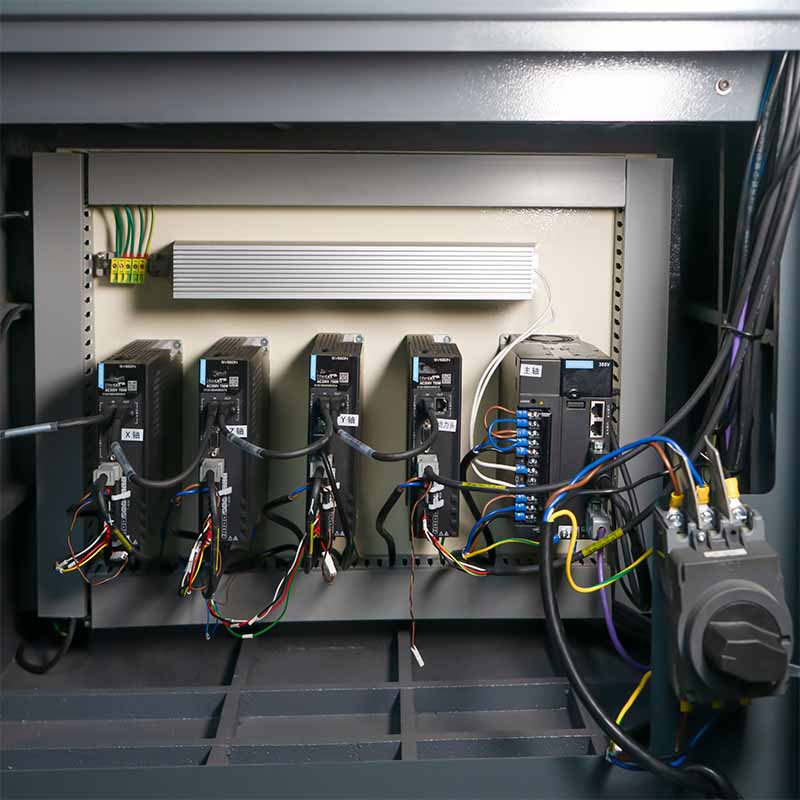

| X/Y/Z Axis Servo Motor Power | 0.75/0.75/0.75kw |
| Cutting motor power | 0.18kw |
| Total input power | 5kw |
| Machine Dimensions | |
| Overal dimension (L×W×H) | 1600x1170x1860mm |
| Weight | 1220kg |
