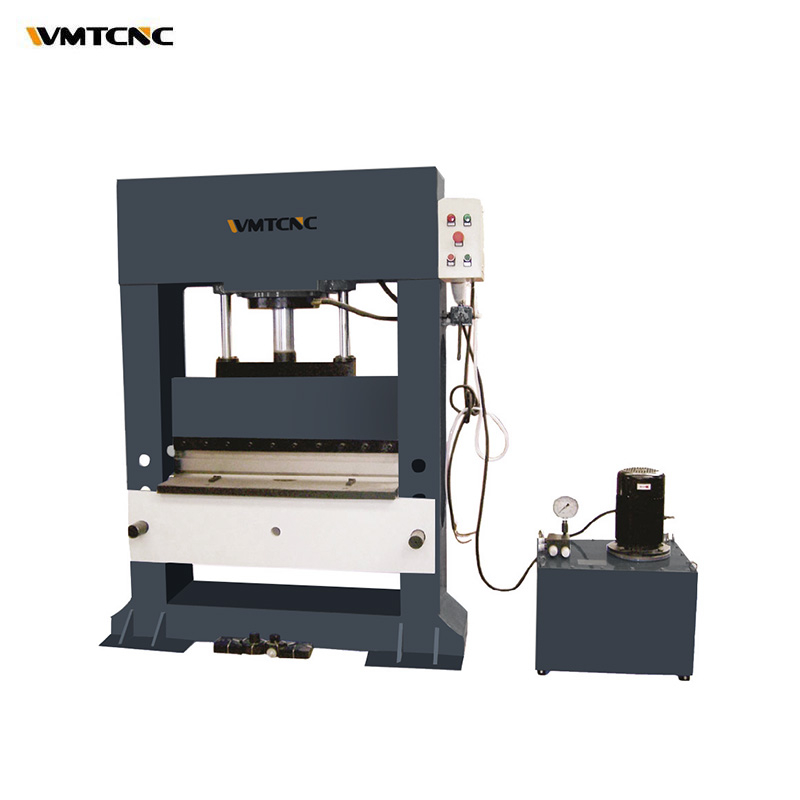

HP-150
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. The machine supplied oil by Italy CNK and CBZ pump. It could save 60% energy compared with the traditional model. The efficiency increased to 2-3 times. It takes the advantages of small volume, high pressure, simple structure and light weight.
2. With the function of brake.
3. With adjustable worktable.
4. Extremely torsion-proof steel weldment.
5. Reliable high accurate hydraulic system.
6. Hydraulic press unclude replaceable toptools.
7. V-block and support table with stops.
8. Table can be tilted through a chain driven by the main cylinder.
| Model | Capacity | Pressure | Travel | Table size | Dimension | Weight |
| HP-10 | 100kn | 25mpa | 200mm+200mm | 260x300mm | 1000x450x1200mm | 220kgs |
| HP-20 | 200kn | 25mpa | 200mm+250mm | 260x300mm | 1160x550x1500mm | 320kgs |
| HP-30 | 300kn | 25mpa | 200mm+270mm | 300x400mm | 1160x550x1600mm | 420kgs |
| HP-50 | 500kn | 25mpa | 220mm+405mm | 480x360mm | 1500x650x1950mm | 980kgs |
| HP-63 | 630kn | 30mpa | 220mm+405mm | 400x500mm | 1500x650x1950mm | 1020kgs |
| HP-100 | 1000kn | 30mpa | 220mm+405mm | 440x980mm | 1730x730x2200mm+730x630x960mm | 1220kgs |
| HP-150 | 1500kn | 30mpa | 220mm+405mm | 440x980mm | 1730x730x2200mm+730x630x960mm | 1350kgs |
| HP-200 | 2000kn | 30mpa | 300mm+405mm | 500x980mm | 1800x800x2200mm+830x730x1260mm | 2200kgs |
| HP-250 | 2500kn | 30mpa | 300mm+405mm | 500x980mm | 1800x800x2250mm+830x730x1260mm | 2400kgs |
