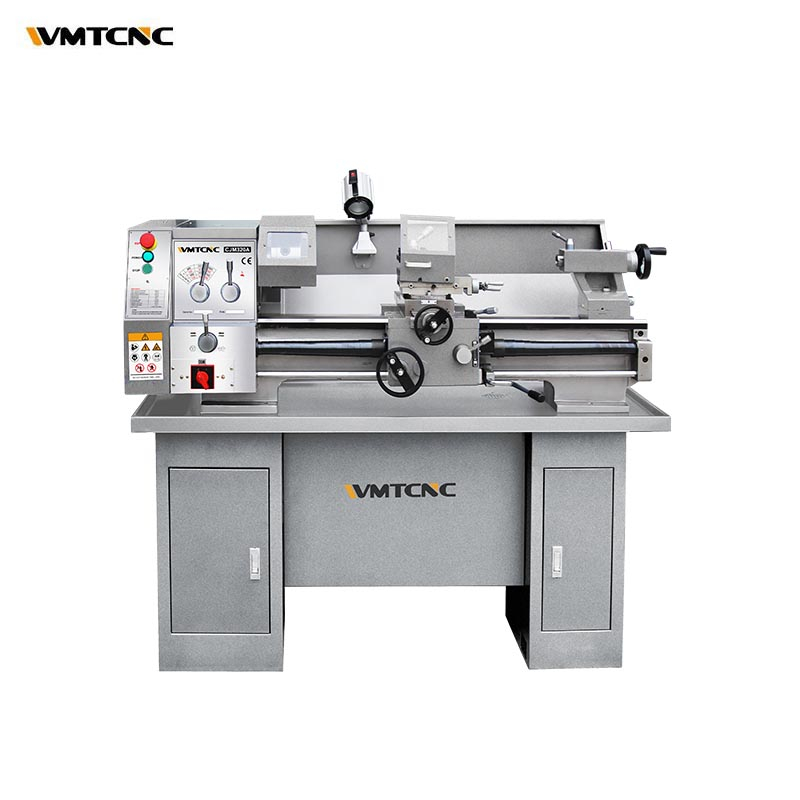

CJM320A
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 60-1650rpm.
6. Two different lengths of bed are available.
7. With or without cabinet according to requirement.
| Specification | CJM320A |
| Max. swing over bed | 330mm |
| Max. swing over cross slide | 220mm |
| Max. swing over gap | N/A |
| Width of bed | 160mm |
| Distance between centers | 600mm/750mm |
| Spindle bore | 38mm |
| Spindle taper | MT5 |
| Spindle speed range | 60-1650rpm |
| Longitudinal feed range | 0.135-1.80mm/rev |
| Cross feed range | N/A |
| Metric thread range | 0.5-4mm |
| Inch thread range | 9-40T.P.I. |
| Travel of tailstock quill | 70mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.1kw |
| G.W | 280/300kg |
| N.W | 320/340kg |
| Packing size | 1330/1550×760×720mm |
