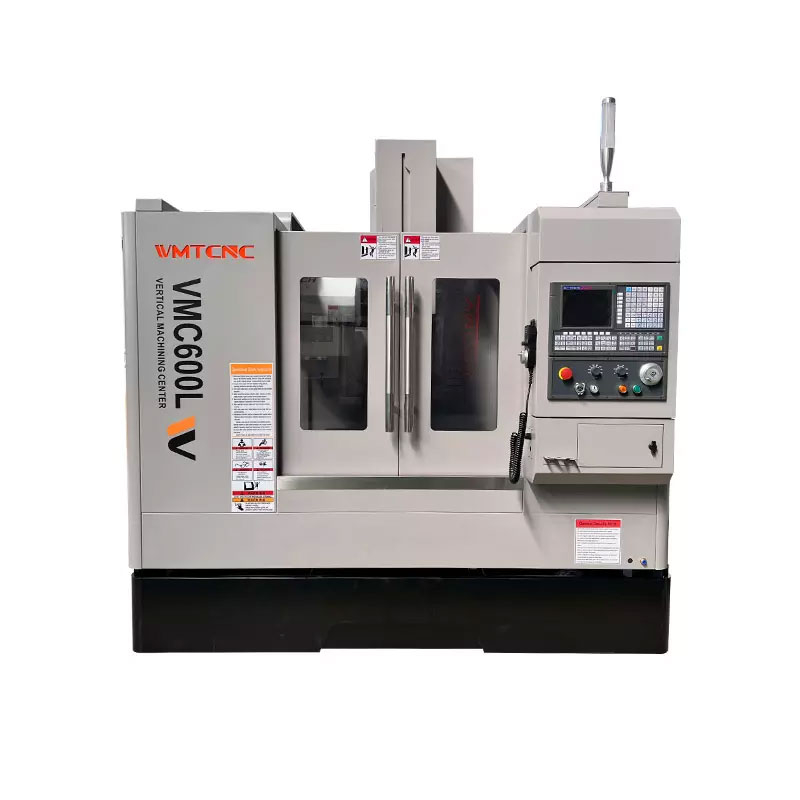

WMTCNC Vertical CNC Mill Machining Center VMC600L Price With High Speed Spindle 10000rpm

All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched,preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy.Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.
  • VMC600L
  • WMT
  • 8457101000
Availability:
Quantity:

Product Description

Features:

1. As one new product of independent design & development, VMC600 is a multi-purpose machine which could mill surface & drill holes.
2. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese.
3. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
4. With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
5. This machine could process holes below 16mm, milling plane below 18mm and milling depth below 3mm.

vmc600l

Specification
VMC600L
Worktable
Worktable size(LxW)
800x400mm
T-slot (NxWx D)
3x14x100mm
Travel
X/Y/Z axis travel
600/400/450mm
Machine range
Distance from spindle center to column
450mm
Distance from spindle nose to worktable surface
100-550mm
Spindle
Spindle taper
BT40
Spindle power
5.5kw
Max.spindle speed
10000rpm
Feed(direct drive)
Max.feed speed
10m/min
Rapid feed speed(X/Y/Z)
30/30/25m/min
Ball screw(diameter+lead)
X/Y/Z axis ball screw
3210
Tool magazine
Tool magazine capacity
12T/16T(optional)
Max.length of tool
300mm
Tool change time(T-T)
2.5s
Positioning accuracy(National standard)
Positioning accuracy(X/Y/Z)
±0.005mm
Re-positioning accuracy(X/Y/Z)
±0.002mm
Machine weight
Max.loading of worktable
300kgs
Machine weight
3500kgs
Machine dimension(LxWxH)
1900x1700x2240mm
