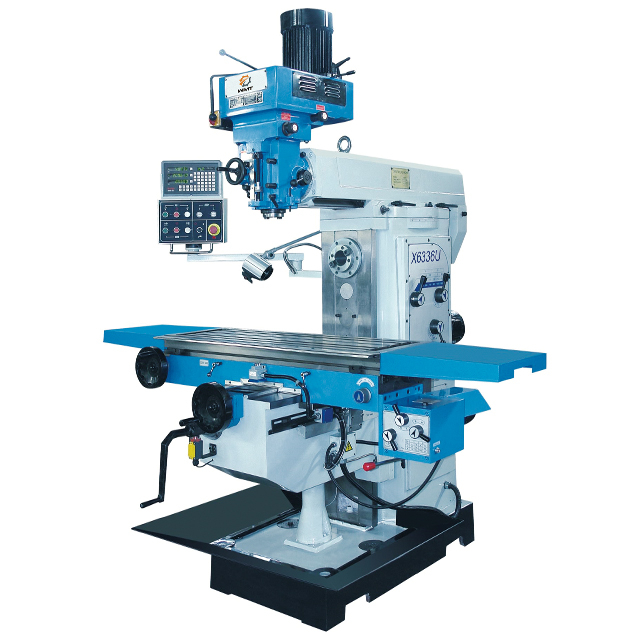

X6336U 54''x14'' Universal Milling Machine with DRO

  • X6336U
  • WMT
  • 84592900
Availability:
Quantity:

Product Description

Features

  • Rectanger guide way,better stability

  • Easy changing from vertical milling to horizontal milling

  • Worktable can be automatically feed in X axis, and equipped with quick-reverse unit to realize high efficiency in working

  • Headstock swivels ±90º

X6336U

Specificaiton X6336U
Table size 1370×360mm
T-slotes (No./Width/Pitch) 3/18/80mm
Table travel (X/Y/Z) 1000×320×420mm
Spindle taper:vertical/horizontal NT40(V)    NT50(H)
Ditance between horizontal nose and table surface 0-400mm
Ditance between spindle axis and ram surface 270mm
Spindle speed range 50-3750rmp(variable)
66-4540( vertical,16 steps)
60-1800rpm( horizontal, 12 steps)
Arm travel 600mm
Main motor power 5PH (vertical)
5.5KW(horizontal)
Machine overall size (L*W*H) 2070×2020×2350mm
Machine weight 2200kg

Standard accessories:

Milling chuck

Drill chuck

Reduction sleeve

Wrench
