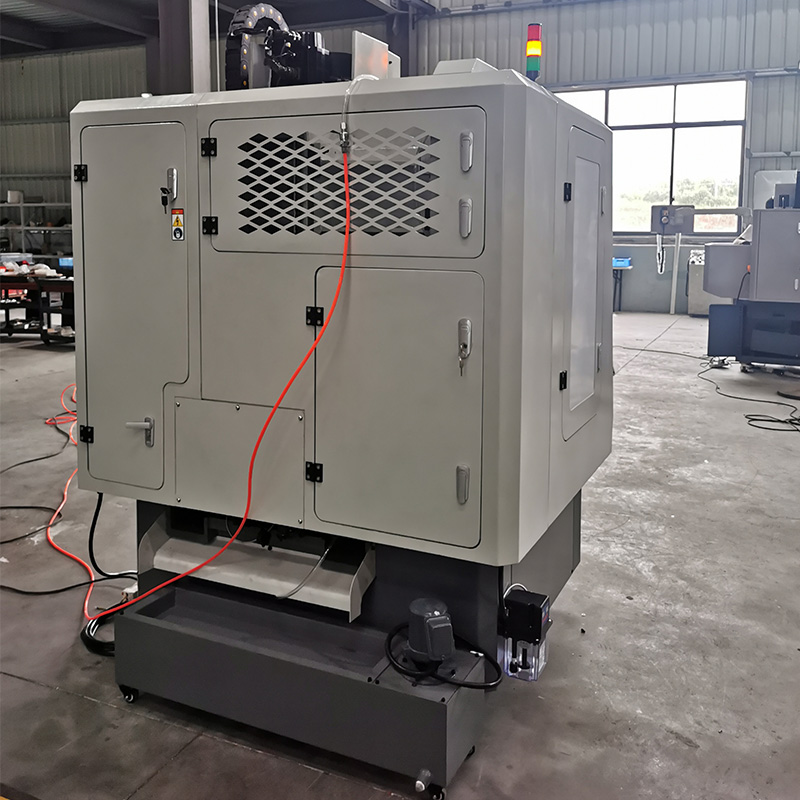

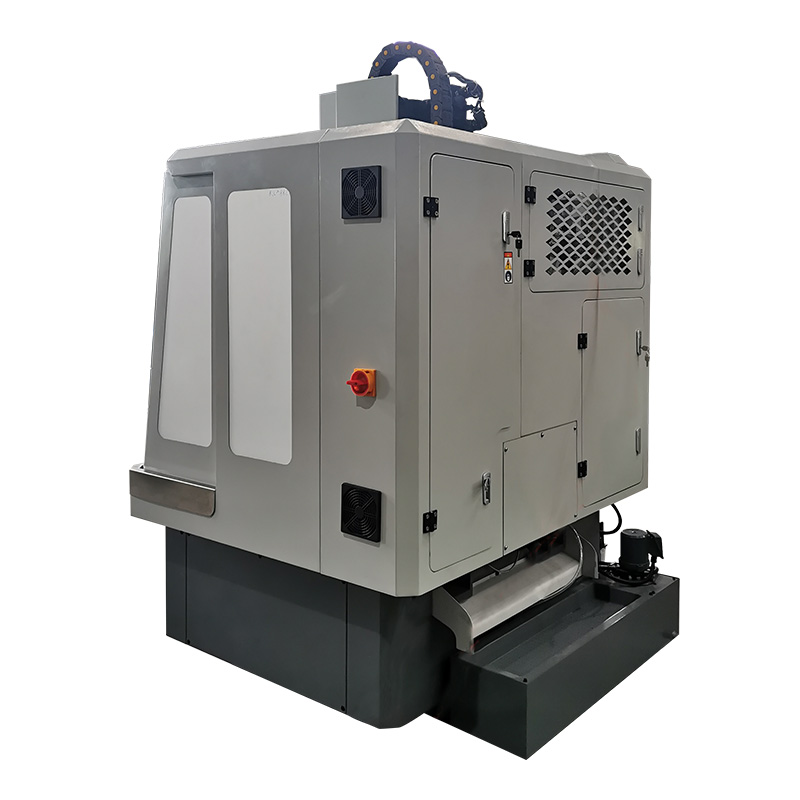

XH7122 China 3 Axis CNC Milling Machine for Hobby And Training

  • XH7122
  • WMT
  • 8459619000
Availability:
Quantity:

Product Description

Features:

  • Compact various functions of milling, drilling, boring and reaming

  • Used for production in small-middle manufacturing and in lot with many varieties

  • BT30 Spindle unit, high speed 6000r.p.m with high precision

  • Pneumatic cylinder for easy and fast tool changing

  • Linear guideway by Taiwan HIWIN Brand

  • 10/12 PCS cloak type ATC

  • Full enclosure, opened with two doors for most wider operating area

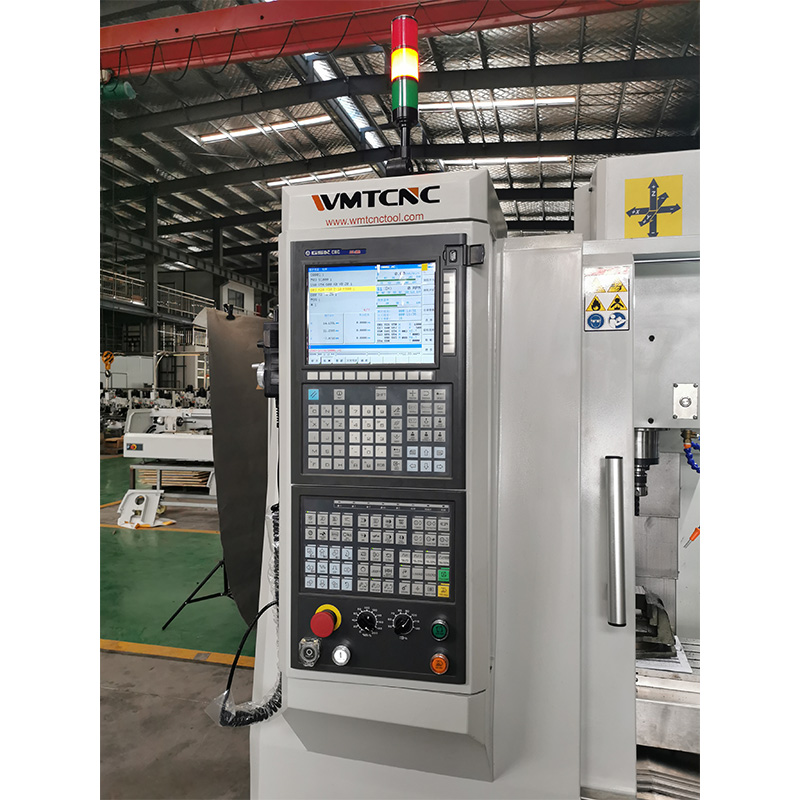

  • Various CNC controller available to fit, GSK, SIMENS, FANUC, etc

XK7122主图 (2)

Specification XH7122
Worktable size(L*W) 700x210mm
Max. loading on worktable 200kgs
T slot size 4x12mm
X axis travel 360mm
Y axis travel 260mm
Z axis travel 440mm
Distance from spindle nose to worktable 60-405mm
Distance bewween spindle center to column 270mm
Spindle speed 6000-8000rpm
Spindle taper BT30
Tool magazine capacity 8pcs 12pcs(optional)
X/Y/Z axis rapid feed speed 10-12m/min
Positioning accuracy (X/Y/Z) ±0.02mm
Repeatability accuracy (X/Y/Z) ±0.01mm
Main motor power (servo) 2.2/3.7kw
Main motor torque (servo) 14/23.7N.m
Feeding motor power 1.5kw
Feeding motor torque 6N.m
Weight(N.W/G.W) 1200/1300kgs
Dimension(L*W*H) 1470x1550x2080mm
