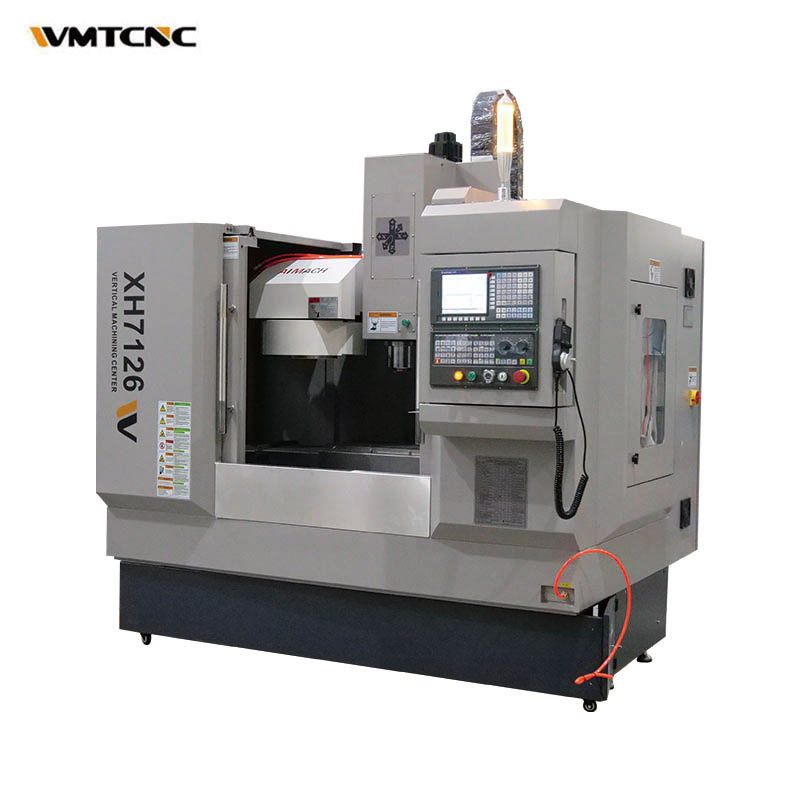

XH7126
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
1. High Precision Hard guideway and screw.

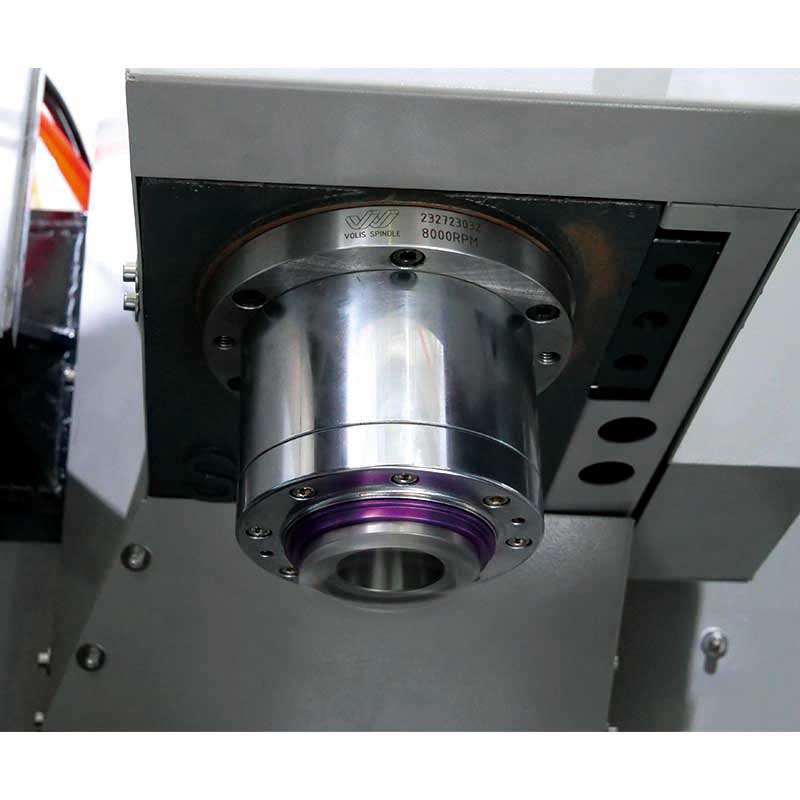

2. Taiwan-made spindle unit,6000,8000rpm speed available.

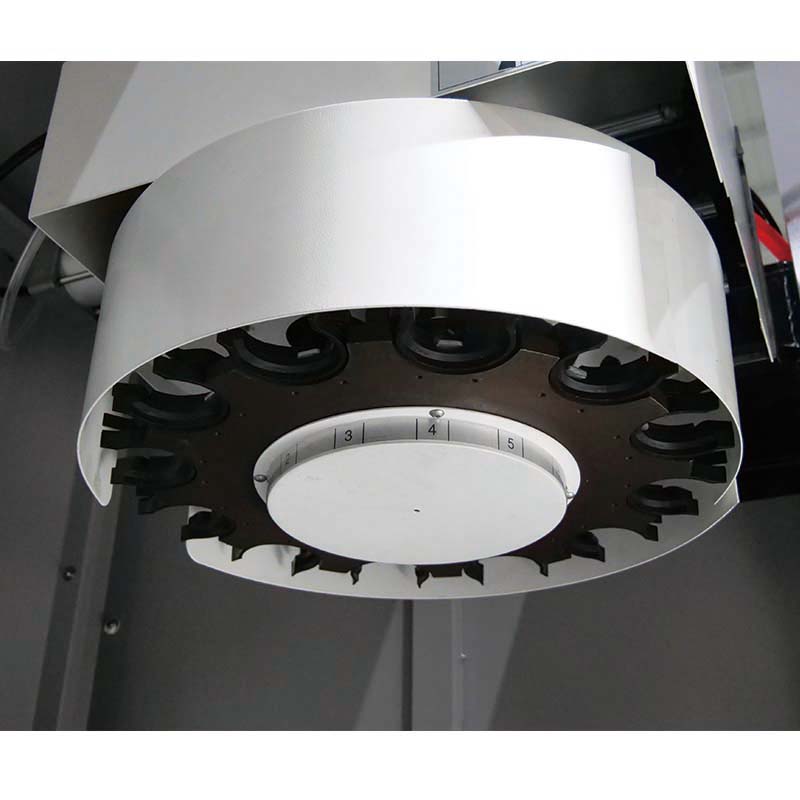

3. Taiwan OKADA Funnel Type 10T/12T ATC can be choosen.

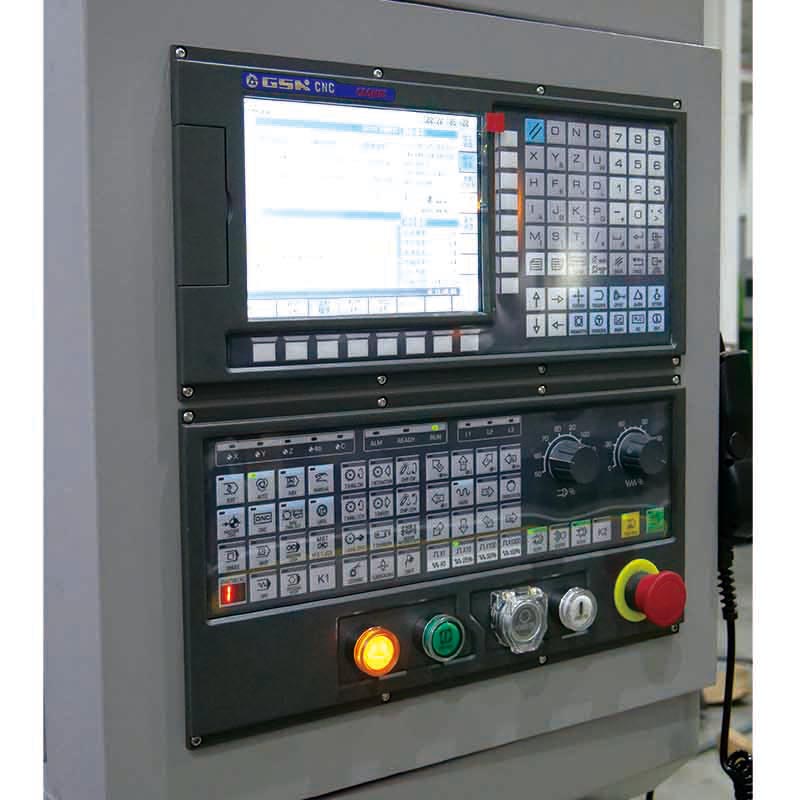

4. Reliable Control System:Fanuc,Siemens,Mitsubishi,GSK.
5. Automatic Central Lubrication System.
Specification
| Specification | Unit | XH7126 | |
| Controller | GSK980MDC | ||

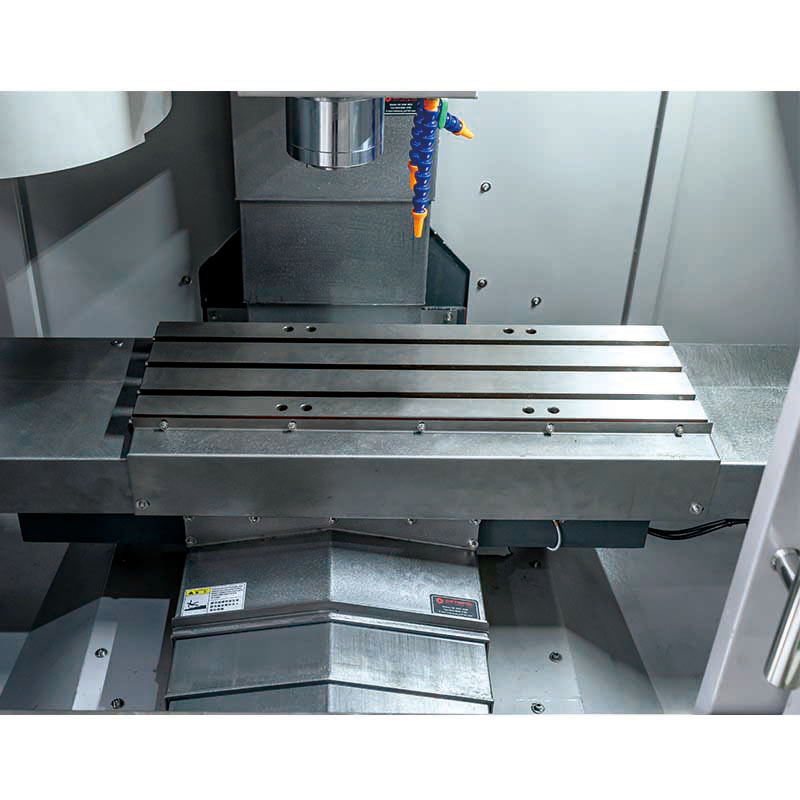

| Worktable | Worktable size(L x W) | mm | 800X260 |
| T-slot(NxWxD) | mm | 3x14x80 | |
| Travel | X/Y/Z axis travel | mm | 450/320/450 |
| Capacity | Distance from spindel center to column | mm | 360 |
| Distance from spindle nose to worktable surface | mm | 90-470 | |
| Spindle | Spindle taper | BT40 | |
| Spindle power | KW | 5.5 | |
| Max.spindle speed | rpm | 8000 | |
| Feed | Rapid feed speed (X/Y/Z) | m/min | 15/15/15 |
| Ball screw | X/Y/Z axis ball screw | Chinese brand | |
| Tool magazine | Tool magazine capacity | T | 12 |
| Positioning accuracy | Positioning accuracy(X/Y/Z) | mm | 0.02 |
| Re-Positioning accuracy(X/Y/Z) | mm | 0.01 | |
| Machine dimension | LxWxH | mm | 2100x1800x1960 |
| Machine weight | N.W | kg | 2400 |
