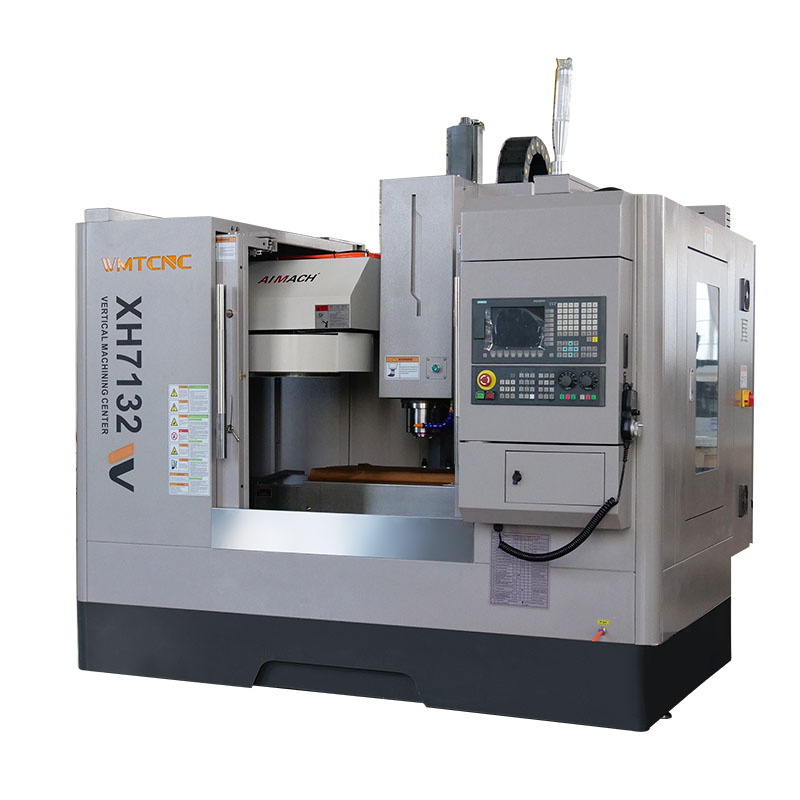

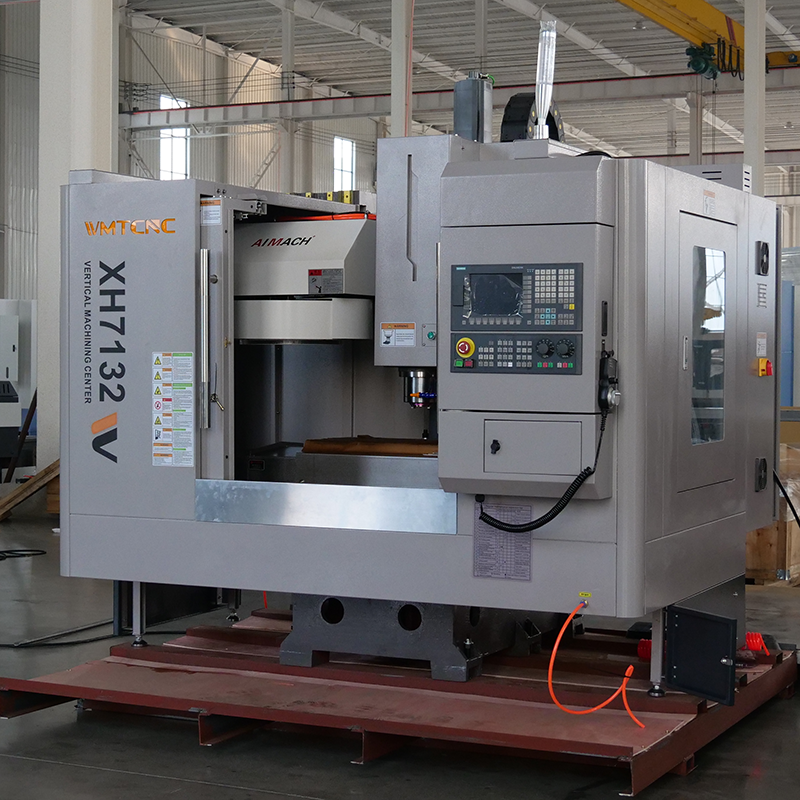

XH7132
WMTCNC
8459619000
| Quantity: | |
|---|---|
Product Description
Features:
Used for machining box parts, shell parts, disc-shaped parts
Dovetail guideway with plastic sticking, high rigidity, high stability and strong support
Pneumatically tool clamping
| Specifications | XH7132 |

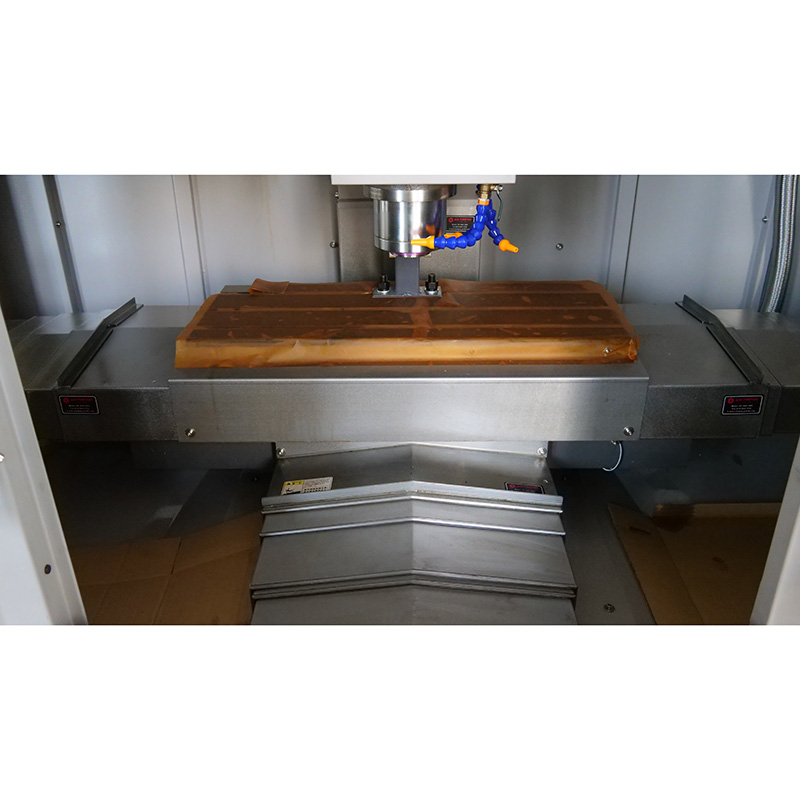

| Work Table | |
| Work Table Dimensions (L x W) | 800x320mm |
| T-Slot (W x W x D) | 3-16x100mm |
| Travel | |
| XY/Z Axis Travel | 600/400/450mm |
| Machining Range | |
| Distance from Spindle Center to Column | 400mm |
| Distance from Spindle Nose to Work Table Surface | 100-550mm |
| Spindle | |
| Spindle Taper | BT40 |
| Spindle Power | 5.5kw/7.5kw |
| Max. Spindle Speed | 8000rpm |
| Feed | |
| Max. Feed Rate | 10m/min |
| Rapid Feed Rate (X/YZ) | 20/20/18m/min |
| Power | |
| AC Servomotor Torque (XY/Z) | 7.7/7.7/15N.m |
| X/Y/Z Feed Motor Power | 1.5/1.5/2kw |
| Rated Power | 11kw |
| Ball Screw (Diameter + Pitch) | |
| XY/Z Axis Ball Screw | 3210 |

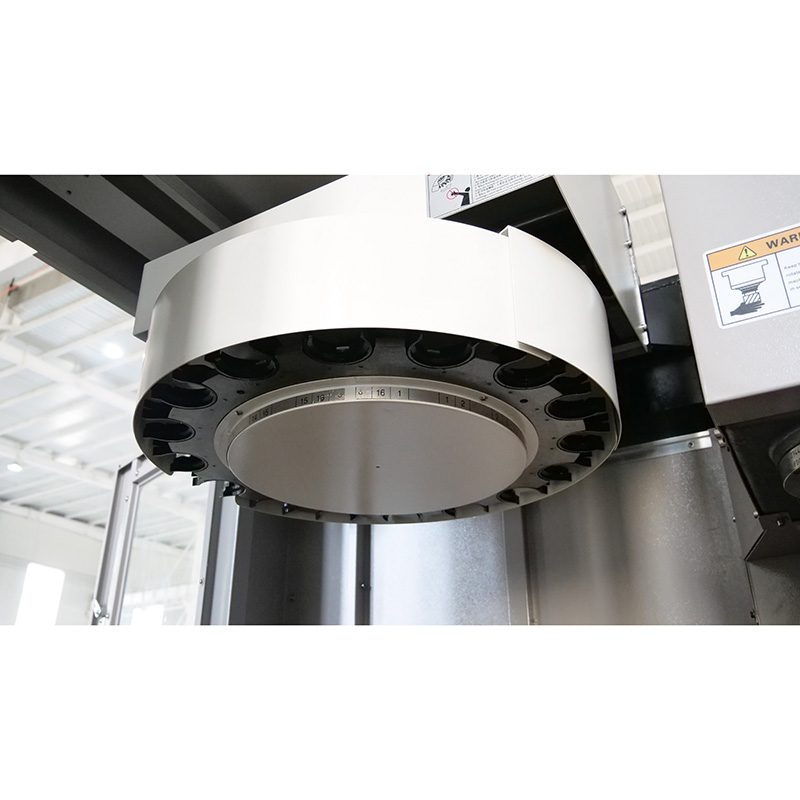

| Tool Magazine | |
| Tool Magazine Capacity | 12T/16T（optional） |
| Max. Tool length | 200mm |
| Tool change time (T-T) | 7s |
| Positioning accuracy (GB standard) | |
| Positioning accuracy (X/Z) | ±0.01mm |
| Repeat positioning accuracy (X/Z) | ±0.005mm |
| Machine dimensions | |
| L x W x H | 2200x1950x2300mm |
| Machine weight | |
| Maximum worktable load | 300kg |
| Machine weight | 2400kg |
