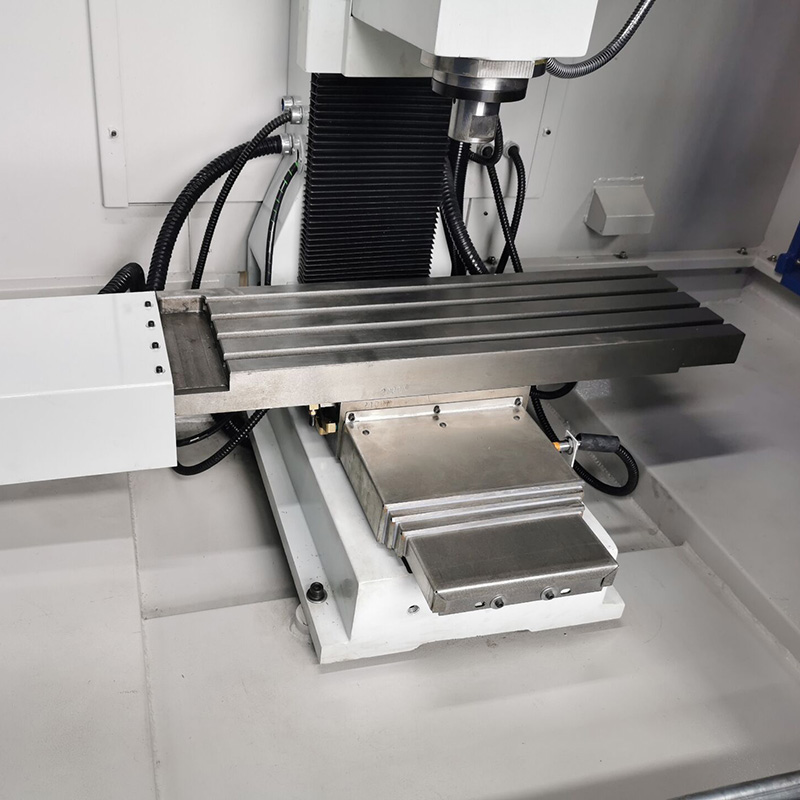

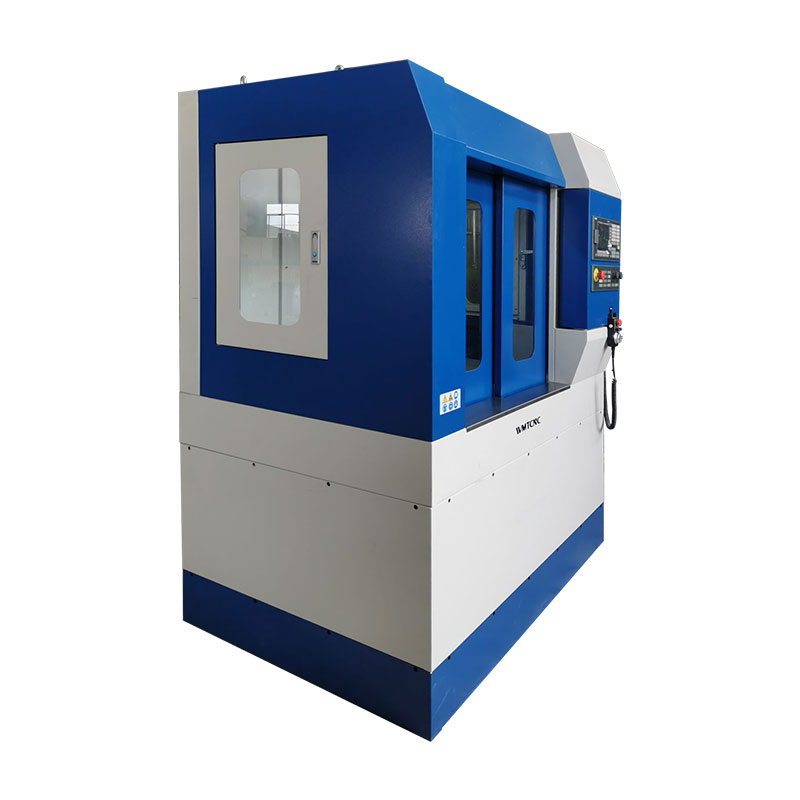

XK7114 CNC Milling Machine with CE Standard From WMTCNC China

XK7114 CNC milling machine used for machining box parts, shell parts, disc-shaped parts.
  • XK7114
  • WMT
  • 8459619000
Availability:
Quantity:

Product Description

Features:

  • R8 spindle taper

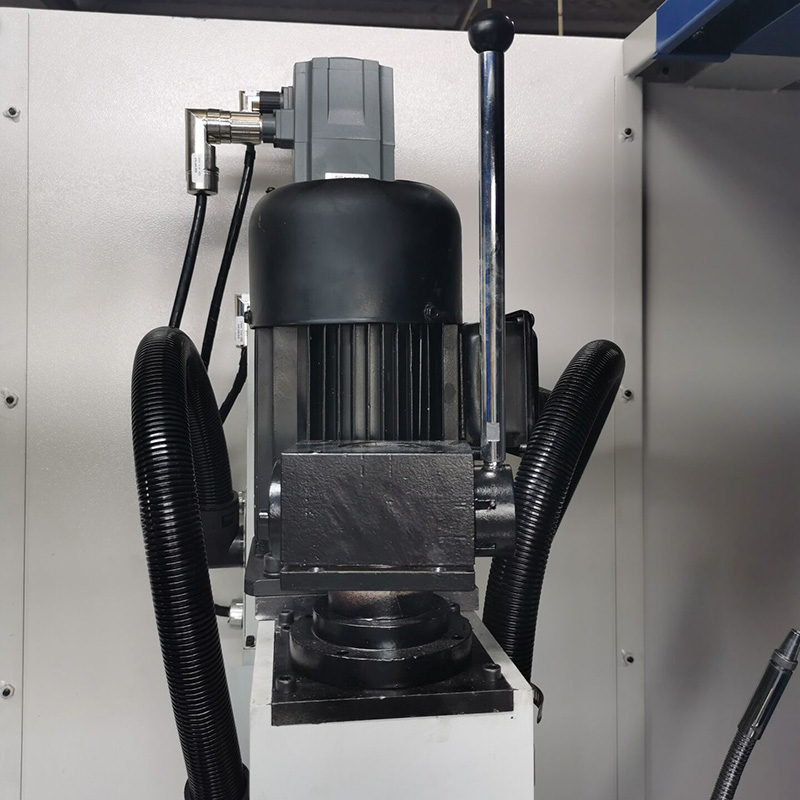

  • 1.1kw DC brushless motor
  • Lower noise and high precision
  • Vertical controller panel with easy operation and beauty
  • Suitable for mould machining and production in lots and engraving
  • GSK is standard controller, Siemens & Fanuc as optionalmini cnc milling machine XK7114 (6)
    Specification XK7114
    Worktable size 200x600mm
    X axis travel 350mm
    Y axis travel 240mm
    Z axis travel 310mm
    T slot 12x45mm 4
    Max.loading of worktable 50kg
    spindle taper R8
    spindle speed 4000mm/min
    Distance from spindle center to column 268mm
    Distance from spindle nose to worktable surface 38-348mm
    Main motor(DC brushless motor) 1kw
    Feeding motor(step motor)X/Y/Z 6Nm/6Nm/6Nm
    Fast raip speed 4000mm/min
    feeding speed 0-3000mm/min
    min set unit 0.001mm
    Net weight 580kg
    Machine size 148/130/185cm
