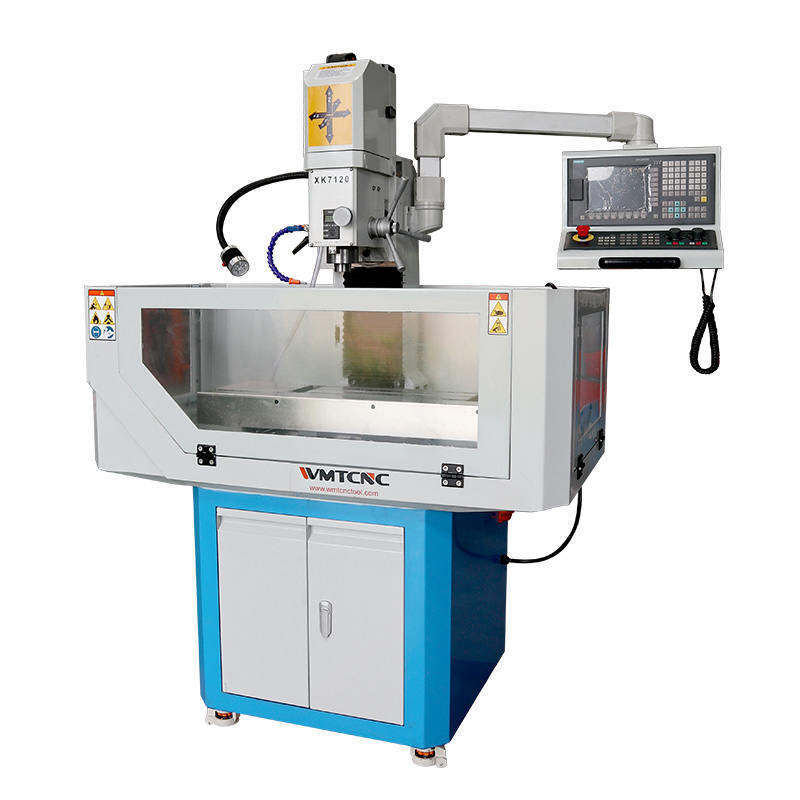

XK7120
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
XK7120 is widely used in factory machining and training in school.

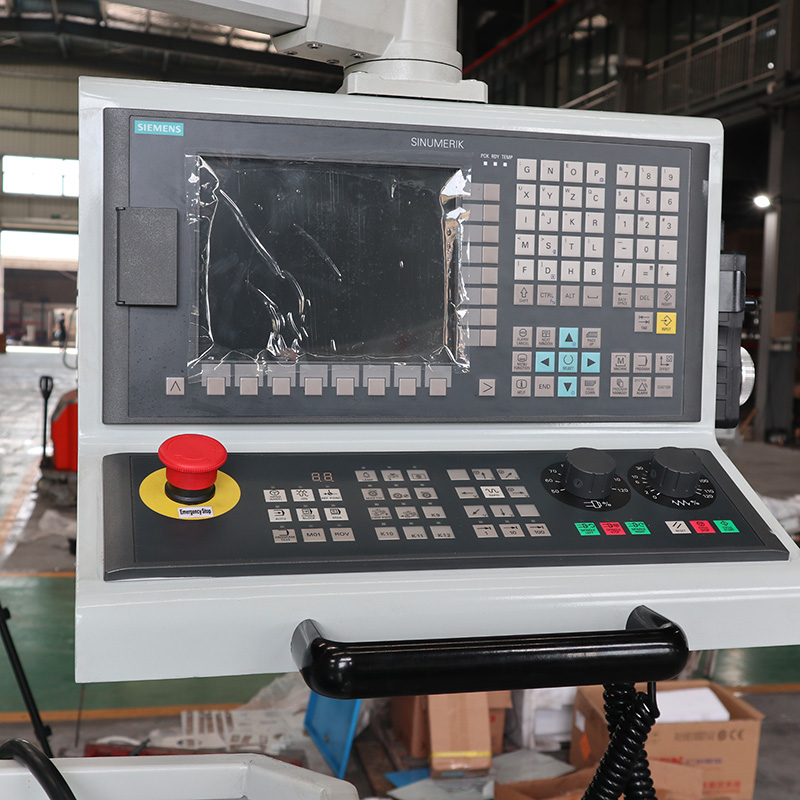

GSK and Siemens CNC system available.
Small size with wide cutting range.
| Specification | XK7120 |
| Max.drilling capacity | 28mm |
| Max.end milling capacity | 20mm |
| Max.face milling capacity | 63mm |
| Table size | 540*180mm |
| Spindle taper | MT3/R8 |
| Motor power | 1.5KW |
| Max. distance form spindle to surface of column | 212mm |
| Max. distance form spindle nose to table | 50-330mm |
| T-slot size | 12mm |
| Table travel (X/Y) | 325*200mm |
| Max. spindle travel | 70mm |
| Spindle speeds | 50-3000rpm |
| Overall size | 1100x900x1530mm |
| Packing size | 1200x1100x1750mm |
