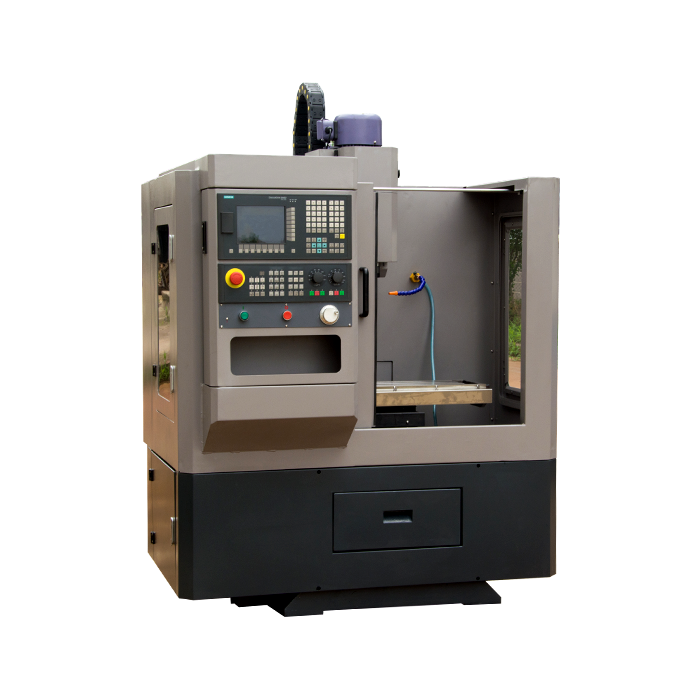

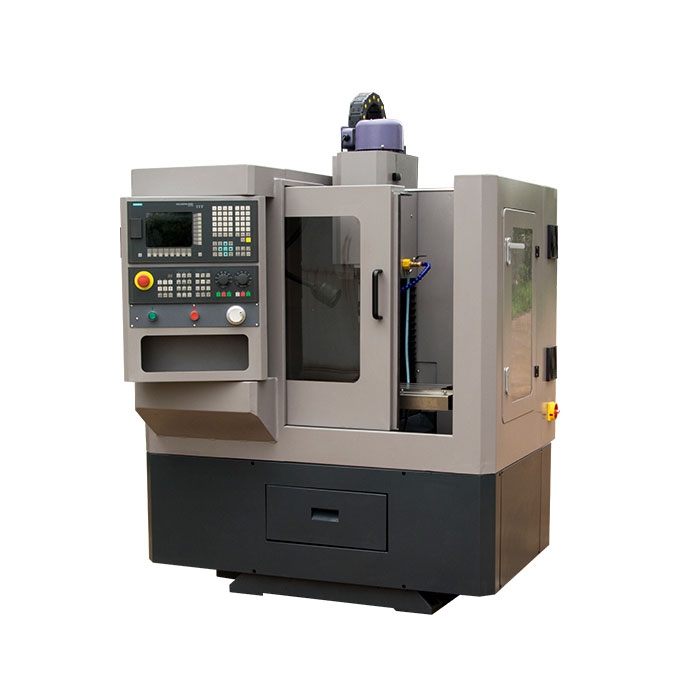

XK7121
WMT
8459619000
| Quantity: | |
|---|---|
Product Description
Features:
Used for machining box parts, shell parts, disc-shaped parts
Dovetail guideway with plastic sticking, high rigidity, high stability and strong support

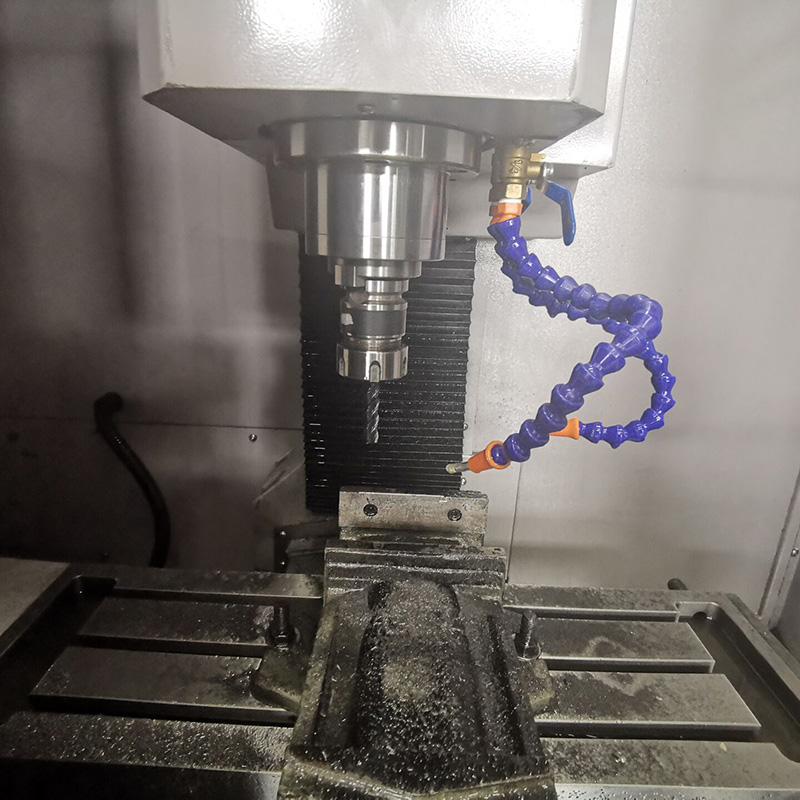

Pneumatically tool clamping
| Specification | XK7121 |
| Worktable size（LxW） | 660x210mm |
| T-slot (NxWx D) | 3/14/63mm |
| X axis travel | 395mm |
| Y axis travel | 225mm |
| Z axis travel | 335mm |
| Distance from spindle nose to worktable surface | 40-374mm |
| Distance from spindle center to column | 275mm |
| Rapid feed speed（X/Y/Z) | 15/15/15m/min |
| Spindle taper | BT30 |
| Spindle speed range | 5900rpm |
| Main motor power | 2.2kw |
| AC servo motor torque（X/Y/Z) | 2.39/2.39/3.18N.m |
| Over size(LxWxH) | 1355x1180x1635mm |
| N.W | 700kgs |
