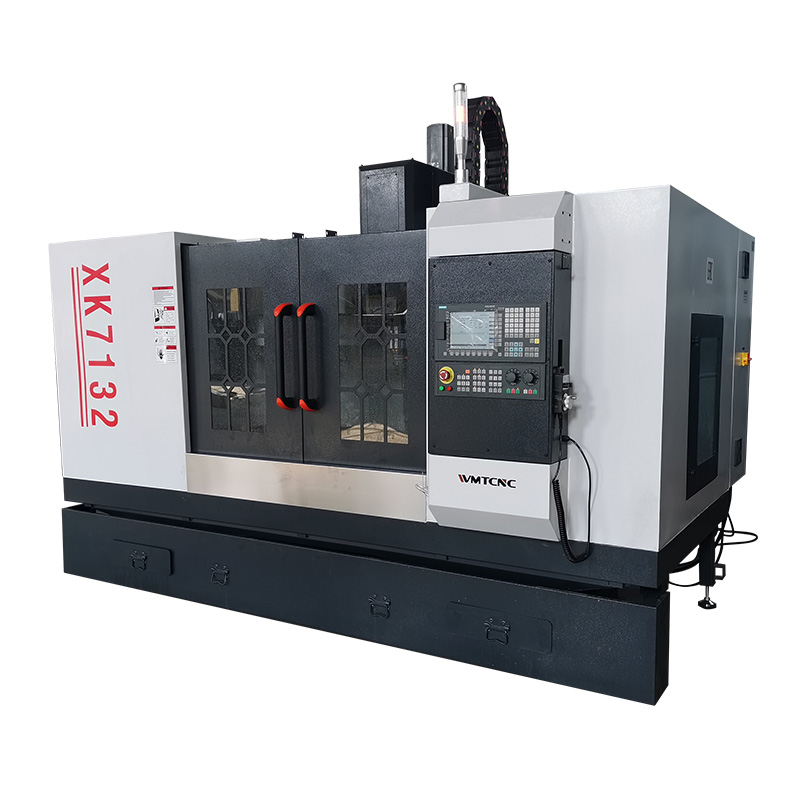

XK7132
WMTCNC
8459619000
| Quantity: | |
|---|---|
Product Description
Main Features:
Used for machining box parts, shell parts, disc-shaped parts
Dovetail guideway with plastic sticking, high rigidity, high stability and strong support
Pneumatically tool clamping
| Specification | XK7132 |
| Worktable size(LxW) | 1500x330mm |
| T-slot (NxWx D) | 3/18/85mm |
| X axis travel | 1000mm |
| Y axis travel | 450mm |
| Z axis travel | 500mm |
| Distance from spindle nose to worktable surface | 100-600mm |
| Distance from spindle center to column | 400mm |
| Rapid feed speed(X/Y/Z) | 8/8/6m/min |

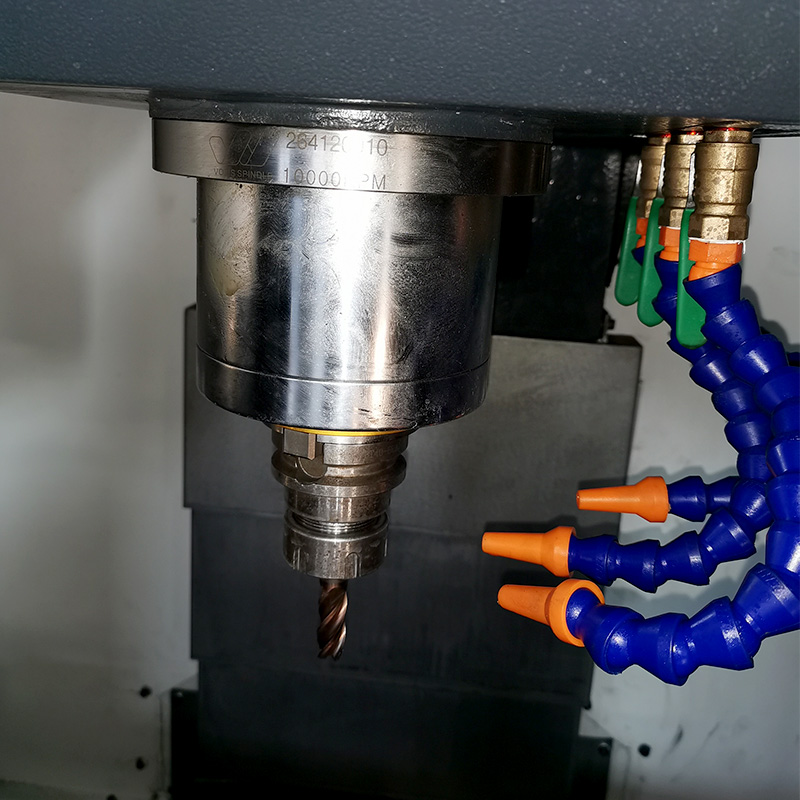

| Spindle taper | BT40 |
| Spindle speed range | 8000rpm |
| Main motor power | 5.5kw |

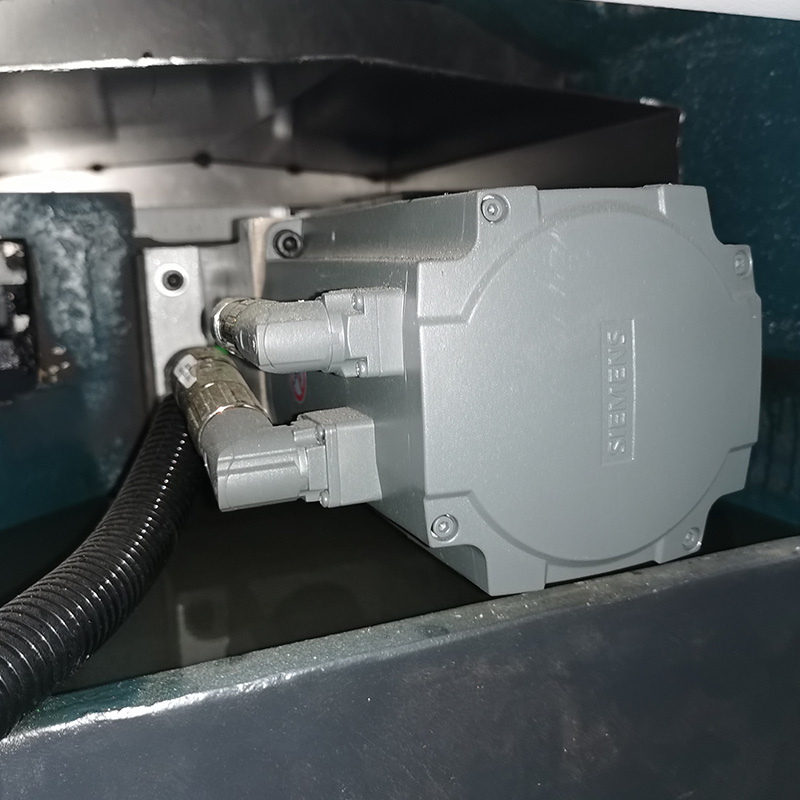

| AC servo motor torque(X/Y/Z) | 10/10/15N.m |
| Over size(LxWxH) | 2100x1900x2350mm |
| Net weight | 2600kgs |
